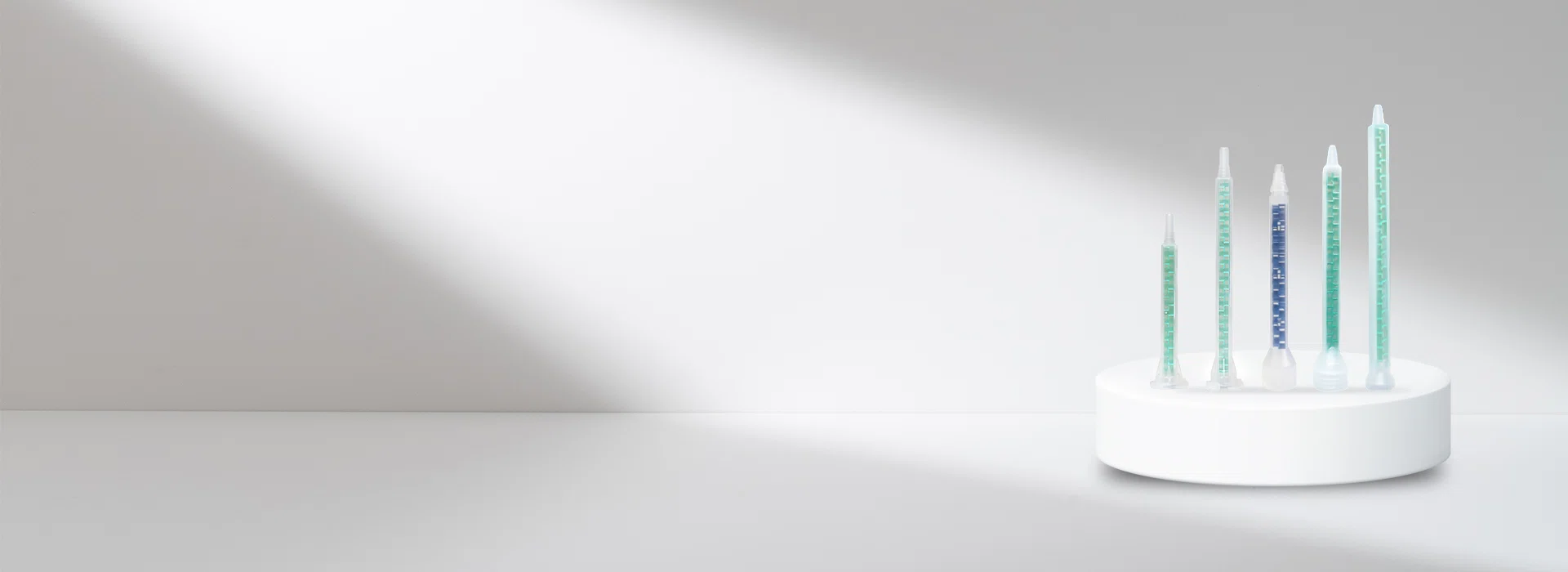

The square mixing nozzle is the preferred choice for engineers seeking to optimize fluid dynamics and reduce operational costs in two-component bonding. Key technical advantages of using a square static mixing nozzle include:
Optimized Flow Geometry: The unique square channel design generates intense radial shear and boundary layer disturbance, achieving thorough homogeneity in a significantly shorter element stack compared to helical designs.
Low Retained Volume: A square static mixer nozzle minimizes the adhesive left inside the tube after each shot, directly reducing material costs for expensive filled resins and potting compounds.
Space-Efficient Design: The shorter body length of the Quadro static mixer allows for precise placement in tight automated fixtures and robotic dispensing cells where clearance is limited.
Enhanced Durability: Constructed with high-grade POM elements, the square mixing nozzle provides exceptional resistance to abrasion from particle-loaded thermal pastes and silver-filled epoxies.
Broad Compatibility: These nozzles feature versatile interfaces, including bayonet and bell-mouth inlets, while threaded options cover dual cartridges from 50 mL to 1500 mL across 1:1, 2:1, 4:1, and 10:1 systems, ensuring they are fully compatible replacements for standard industrial cartridges.
Btektech maintains a comprehensive catalog of Square Mixing Nozzle configurations to support diverse flow rates and reach requirements.Our technical specifications include:
| No. | Part No. | Elements | I.D.(mm) | L(mm) | O.D.(mm) | A(mm) | Inner-core Color |
| A4 | PMF6.0-16 | 16 | 5.3 | 83 | 7.5 | 1.8 | Green/ Gold/pink/white |
| A6 | PMF6.0-24 | 24 | 5.3 | 115 | 7.5 | 1.8 | Green |
| B1 | PMF06-24 | 24 | 5.3 | 127 | 7.5 | 1.8 | Green |
| B2 | PMF08-24 | 24 | 8.7 | 150 | 12 | 3.5 | Green |
| B3 | PMF08-24T | 24 | 8.7 | 165 | 12 | 3.5 | Green |
| B4 | PMF08-32 | 32 | 8.7 | 188 | 12 | 3.5 | Green |
| B65 | MBQ08-18 | 18 | 8.7 | 143 | 12 | 3.5 | Blue |
Looking for models not listed above? Contact us for our complete OEM Square Mixer Nozzles catalog.
Btektech offers a comprehensive suite of OEM and ODM services, providing industrial partners with the flexibility to customize every technical aspect of the Square Mixer Nozzle—from precision-engineered internal structures and geometries to specialized private-label branding and packaging solutions.
Provide full-scale OEM production for any Square Mixing Nozzle based on your unique technical drawings. We can manufacture the nozzle according to your precise blueprints, specifying exact body dimensions, internal diameters, element counts, and confirmed construction details.
Offer professional ODM development to optimize the internal geometry of the Square Mixing Nozzle for specific or challenging materials. We can evaluate your material’s viscosity, mix ratio, and target retained adhesive volume to develop a tailored Square Mixer Nozzle geometry optimized.
Adjust the element count, nozzle length, or the specific connection format of Square Mixing Nozzle to match non-standard cartridge standards or automated equipment. This customization ensures the nozzle integrates seamlessly with various dual cartridges.
Support your private-label distribution with custom color-coding, specialized labeling, and tailored packaging for your wholesale orders. We provide comprehensive branding solutions to simplify internal sorting and meet specific OEM channel or distributor requirements.
The Square Mixing Nozzle is engineered for high-precision environments where a compact footprint, reduced material waste, and uniform two-component blending are critical for process control. By implementing the nozzle, manufacturers can achieve consistent chemical activation while significantly lowering per-unit material costs across demanding industrial sectors.
In EV battery module potting and structural panel bonding, the square mixing nozzle handles abrasive thermal conductive adhesives and filled epoxies with superior reliability. Unlike standard mixers that suffer from material accumulation over high-cycle runs, the open geometry of the nozzle provides a low-accumulation flow path to ensure stable output across full shifts. For high-volume gasketing and sensor sealing, the lower retained volume of the square mixing nozzle directly minimizes adhesive waste on automated production lines.
The square mixing nozzle is essential for heat dissipation potting and insulating encapsulation on high-density PCBs. The shorter element stack of the nozzle allows it to fit into tight automated fixtures where clearance is a limiting factor, without sacrificing mix homogeneity. This technical versatility enables a single square mixing nozzle family to manage both fine-line dispensing and large-area encapsulation tasks efficiently on the same assembly line.
Fiber optic connector bonding requires the precise ratio control provided by a professional square mixing nozzle. The reduced retained volume within the nozzle eliminates inter-cycle variation, which is critical for achieving consistent curing results in miniature assembly. By choosing a square mixing nozzle, manufacturers can maintain placement accuracy and deposit consistency while cutting costs associated with excess adhesive residue in every shot.
