Sausage Caulking Gun for Foil Packs

Sausage Caulking Gun for Foil Packs

Manual, pneumatic, and battery-powered solutions for single-component sealants and adhesives in foil packs
A sausage caulking gun dispenses silicone, polyurethane, and mastic sealants from foil packs, often called sausage packs or sausage tubes in the industry, advancing material as the pack collapses rather than pushing through a rigid cartridge. This range covers manual, pneumatic, and cordless models for construction, facade, and vehicle assembly work, including dual thrust ratio configurations for jobs where sealant resistance varies within the same shift.
Get a Quick Quote

Key Advantages of the Sausage Caulking Gun

These guns feature multiple barrel materials and flexible drive options to meet the demands of foil pack and sausage tube dispensing across different sealant viscosities.

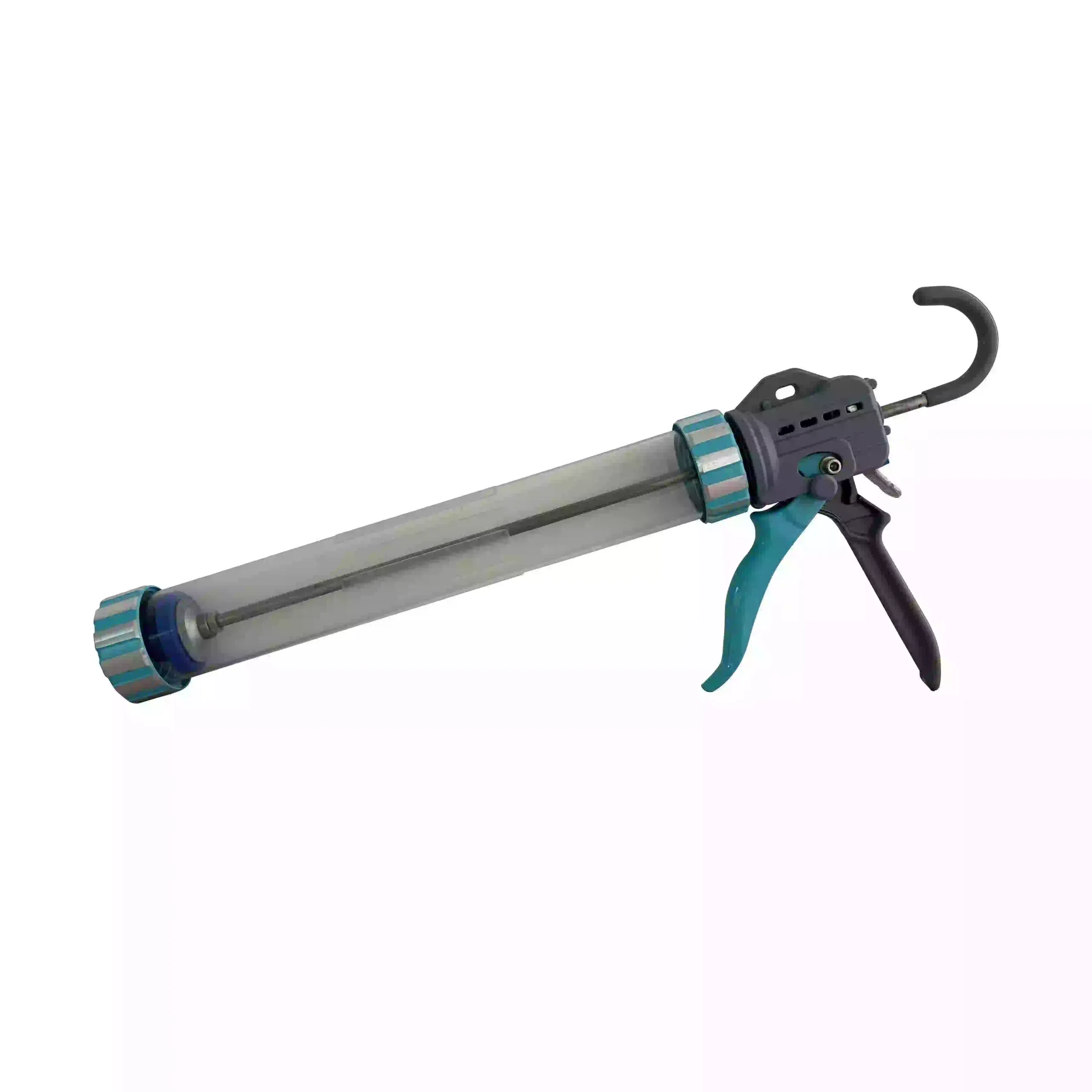

Barrel Material Options: Aluminum, steel, and transparent PVC barrels balance weight, durability, and pressure resistance for different working conditions. Transparent barrels let the operator monitor remaining material and piston position, which helps with reload timing during long sealing runs.

Multiple Drive Types: Manual, pneumatic, and cordless sausage gun versions support different working environments, material viscosities, and dispensing volumes. Manual models suit occasional or low-viscosity work, while pneumatic and cordless drive provide the sustained force needed for thicker sealants and adhesives over repeated cycles.

Foil-Pack Handling Design: Optimized piston and barrel geometry support stable pack collapse and reduce the risk of jamming or uneven discharge. This matters most with larger 600 ml sausage packs, where collapse irregularity is more likely.

Dual Thrust Ratio Switching: Selected manual models offer switchable thrust ratios, either 7:1/12:1 or 12:1/24:1, across 300 ml, 400 ml, and 600 ml pack formats. One gun covers both lighter and higher-resistance sealants in the same shift, removing the need to swap tools when material viscosity or ambient temperature changes.

Request For Our Latest Price

Available Sausage Caulking Gun Configurations

Btektech offers sausage caulking gun configurations in 300 ml, 400 ml, and 600 ml formats, depending on the drive type and application need. Available options include manual and pneumatic models for common foil-pack dispensing tasks, a cordless 600 ml version for mobile operation, and dual thrust ratio manual models that switch between 7:1/12:1 and 12:1/24:1 to handle varying material resistance within the same shift. Standard thrust ratio options for manual single-ratio models include 7:1, 12:1, and 26:1, with additional ratios available on request. Body materials vary by model and include metal, aluminum alloy, and engineering plastic combinations. Contact the sales team to confirm thrust ratio, capacity, and material specification before finalising a bulk order.

Item No. Spec. Drive type Thrust Ratio Max Thrust Force
BTK-MGSAS01 300ml Manual 7:1 / 12:1 / 26:1 available on request

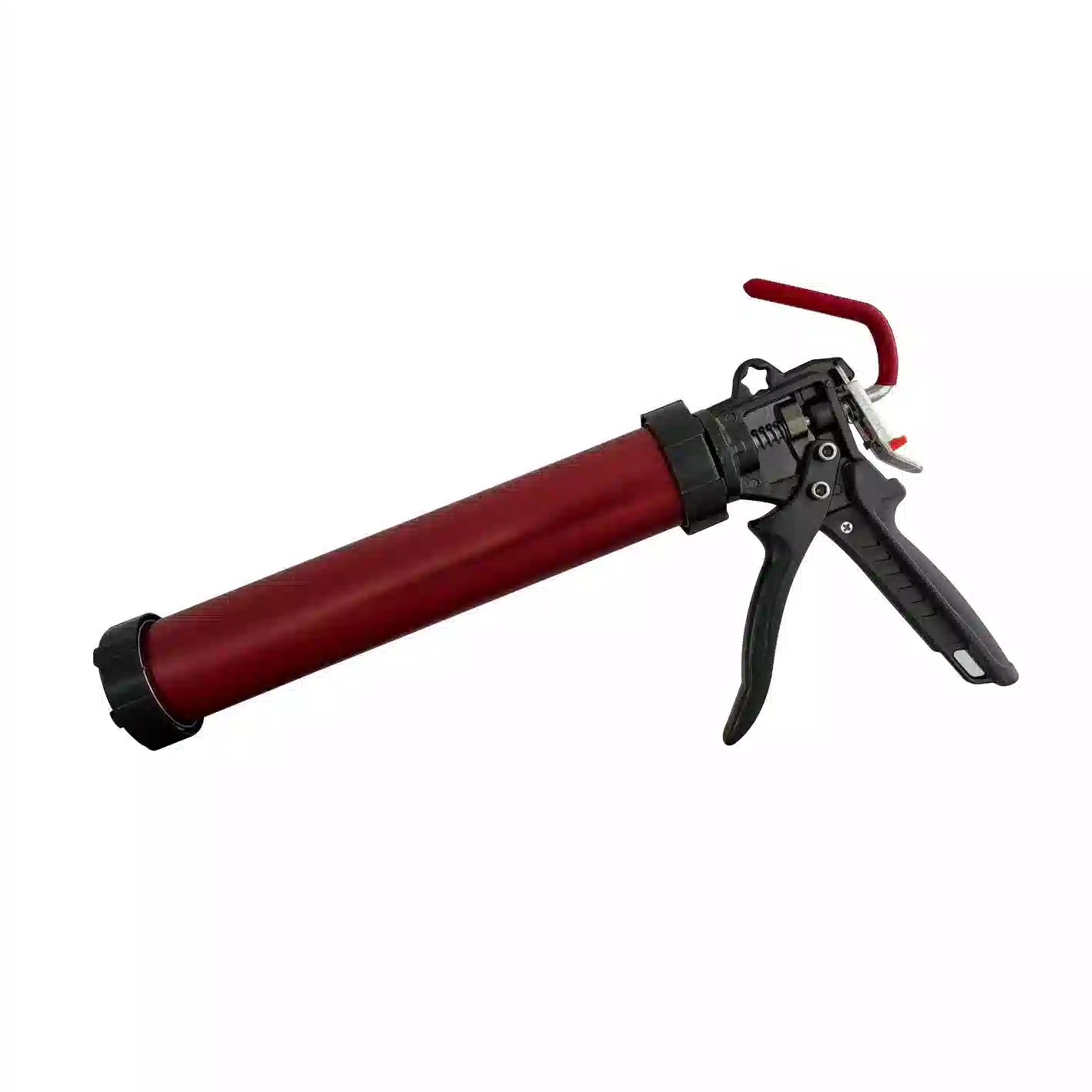

BTK-MGSAS02 600ml Manual 7:1 / 12:1 / 26:1 available on request
BTK-MGSAS03 300ml / 400ml / 600ml Manual 7:1 / 12:1 (Dual thrust ratio)
BTK-MGSAS04 300ml / 400ml / 600ml Manual 12:1 / 24:1 (Dual thrust ratio)
BTK-EGS01 600ml Battery 7500 N

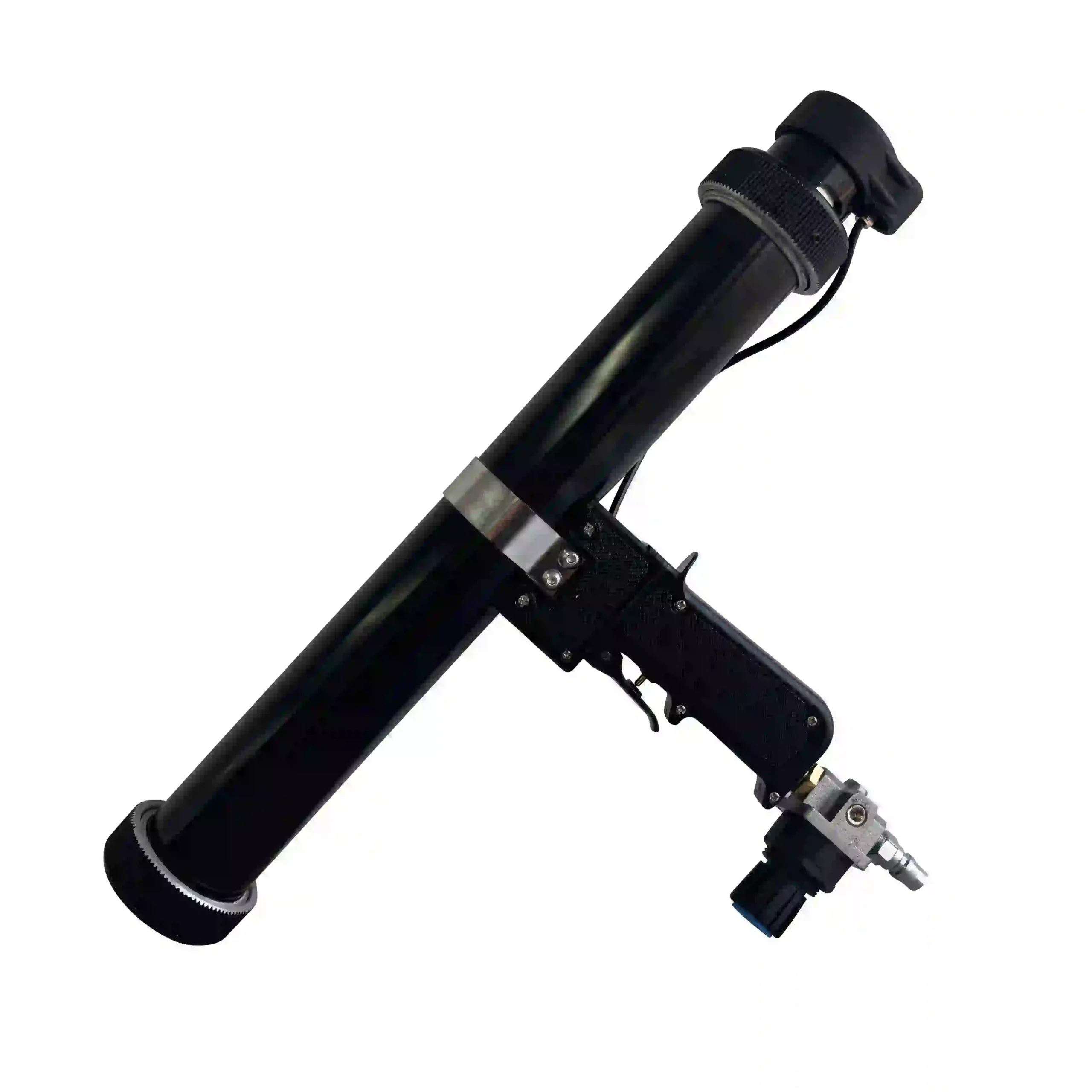

BTK-AGS01 300ml Pneumatic 6000 N
BTK-AGS02 600ml Pneumatic 6000 N



How This Sausage Caulking Gun Fits Your Application

The table below maps drive type, pack format, and typical material to help narrow down the right configuration before confirming specifications with the sales team.

Parameter BTK-MGSAS01 / BTK-MGSAS02 BTK-MGSAS03 / BTK-MGSAS04 BTK-EGS01 BTK-AGS01 / BTK-AGS02
Drive type Manual Manual, dual thrust Battery Pneumatic
Pack format 300 ml / 600 ml sausage pack 300 / 400 / 600 ml sausage pack 600 ml sausage pack 300 ml / 600 ml sausage pack
Barrel material Metal Aluminum alloy + Metal Metal + Plastic Metal + Plastic
Typical materials Silicone, mastic, construction sealant Mixed-viscosity sealants Silicone, PU, mastic Silicone, mastic, high-viscosity sealant
Typical applications Occasional sealing, low-to-medium viscosity work Field maintenance, mixed-material sealing, variable-temperature work Mobile fieldwork, maintenance, repeated cycles Continuous production, high-viscosity material, long seams
Choose this if… You work intermittently and no air supply or charging is needed You switch between different sealant viscosities in the same shift You need mobility without a compressed air line You run continuous, high-viscosity, or long-seam sealing throughout a shift

How to Choose the Right Sausage Caulking Gun

  • Match Material Viscosity to Drive Type: Higher-viscosity sealants usually require pneumatic or cordless drive for more stable dispensing force, while manual sausage caulk guns may be suitable for lighter or intermittent applications.
  • Consider Dual Thrust Ratio for Mixed Materials: If the same job involves switching between lighter and thicker sealants, a dual thrust ratio sausage gun avoids carrying two separate manual tools. The 7:1/12:1 configuration suits lower-to-medium resistance materials, while 12:1/24:1 is better for higher-viscosity sealants or colder working conditions where material resistance increases.
  • Confirm Drive Type Against Work Pattern: Manual guns are suitable for occasional use, while pneumatic and cordless models are better for repetitive work, mobile tasks, or thicker materials. A sausage gun for foil packs used daily on a production line will benefit from pneumatic or cordless drive over a manual configuration.
  • Select Barrel Material for the Environment: Metal barrels offer higher durability and pressure resistance, while transparent barrels help operators monitor remaining material and piston position. For overhead or repetitive sealing work, barrel weight and visibility both factor into the right choice.

Customization Options for Sausage Caulking Gun

As a professional dispensing equipment manufacturer, Btektech provides customization support for sausage caulking guns used in different foil-pack dispensing applications.

OEM Manufacturing

OEM Manufacturing

Produce according to approved drawings, dimensions, and specification requirements.

ODM Development

ODM Development

Modify existing structures or develop new models based on target materials, barrel formats, and workflow needs.

Configuration Customization

Configuration Customization

Customize barrel size, piston material, accessory kits, body structure, etc.

Private Label Service

Private Label Service

Support logo marking, custom colors, and packaging for private-label programs.

Excellent Performance in Industrial Applications

Sausage caulking guns are used in construction, facade engineering, and maintenance applications where foil-pack sealants and adhesives are preferred over rigid cartridges, including jobs that involve more than one material viscosity within the same shift.

Sausage Caulking Gun in Commercial Construction and Facade Engineering

Commercial Construction & Facade Engineering

In construction and facade work, a sausage silicone gun supports the application of high-viscosity sealants in joints, gaps, and vertical surfaces where consistent bead control matters most. Window perimeters, curtain wall sections, and expansion joints all benefit from steady extrusion that holds its profile from the start of a seam to the end. The balanced barrel design reduces handling fatigue during extended use, which becomes relevant when a single crew is working across multiple floors or long facade runs in one day. These tools remain compatible with a wide range of construction sealants, including fire-resistant formulations used in commercial building envelopes.

Send Inquiry Now
Sausage Caulking Gun in Transportation Assembly

Transportation and Vehicle Assembly

In vehicle and equipment assembly, a sausage mastic gun reduces material waste and improves surface consistency during sealing and bonding work on panel seams, undercarriage joints, and structural bonding points. The larger pack format cuts down on reload frequency in larger-area applications, which keeps workflow efficient when the same line is sealing dozens of units per shift. Bus, rail, and industrial vehicle manufacturers in particular benefit from this reduced changeover, since each pack swap on a production line translates directly into idle time. Stable extrusion also helps maintain a consistent bond line across repeated assembly cycles.

Send Inquiry Now
Sausage Caulking Gun in Maintenance, Infrastructure and Validation

Mixed-Viscosity Maintenance and Field Sealing

Field maintenance and infrastructure repair crews often deal with more than one sealant viscosity on the same job, switching between lighter materials for routine sealing and thicker compounds where joints have widened or aged. A dual thrust ratio sausage gun handles this without swapping tools mid-task, since the operator can shift between 7:1/12:1 and 12:1/24:1 settings as resistance changes. This is particularly useful in colder conditions, where the same sealant can stiffen partway through a job and require more force than the morning’s first few beads. The same configuration also supports general-purpose dispensing and material validation work before a process is scaled to automated equipment.

Send Inquiry Now

Frequently Asked Questions About Sausage Caulking Gun

What is a sausage caulking gun used for?

A sausage caulking gun is designed for dispensing sealants and adhesives packaged in foil packs or sausage packs, where the material collapses out of a flexible sleeve as the piston advances. Unlike a standard cartridge gun, which relies on a rigid housing, the sausage gun format supports higher-volume pack sizes and generates less packaging waste per application. The barrel and piston geometry are specifically designed to support stable pack collapse, which a rigid-cartridge tool cannot replicate. Selection should be based on the packaging format the sealant is supplied in.

How do I select the right capacity and drive type for a sausage caulking gun?

+

What caulking gun do I need for sausage tubes?

+

What is a dual thrust ratio sausage caulking gun?

+

Can sausage caulking guns handle high-viscosity or low-temperature sealants?

+

Is a sausage silicone gun suitable for high-viscosity silicone sealants?

+

How do I load a sausage caulking gun?

+

Where can I source industrial sausage caulking guns in bulk?

+
