Dual Cartridge

Dual Cartridge

Two-Component adhesive packaging solution

Maintains precise mix ratios for two-component adhesives via side-by-side design for manual, pneumatic, and electric system. The cartridge is not just packaging, it plays a critical role in maintaining ratio integrity and pressure balance.

Get a Quick Quote

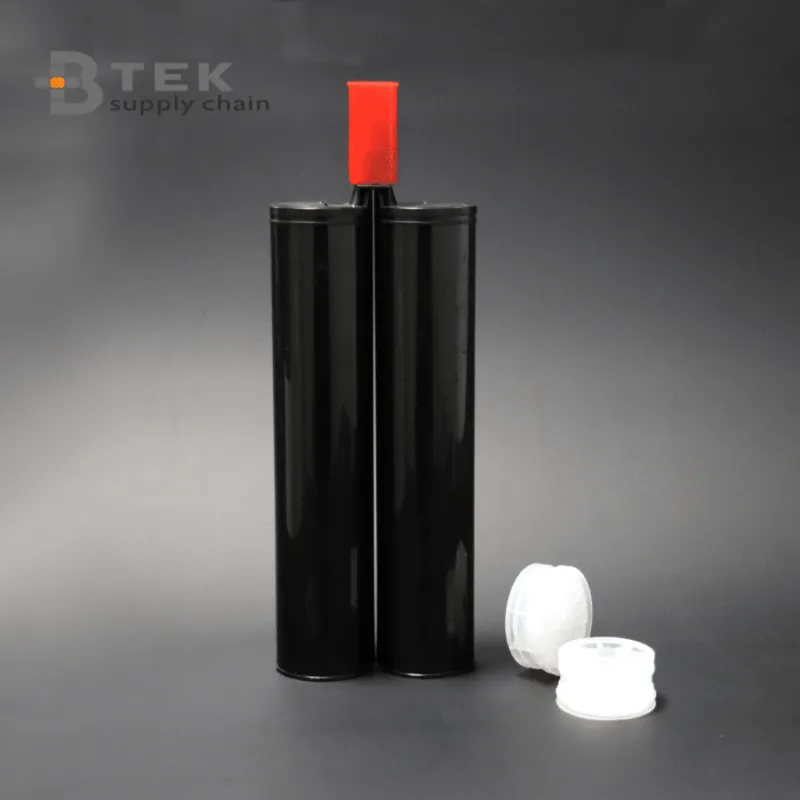

Dual Cartridge white background
thumb
thumb
thumb
thumb

Key Advantages of Dual Cartridge

The dual cartridge system offers seamless adaptability, enhanced output control, and streamlined operations for various environments.
  • Versatile Capacity and Ratios: Available from 50 ml to 1500 ml, with standard ratios, ensuring precise mixing for various adhesive applications.
  • Material Flexibility: PP, PA, and PBT provide chemical resistance, strength, and dimensional stability, presenting reliable performance in different conditions.
  • Enhanced Piston Options: Vented pistons allow for air release and smooth filling, while non-vented and low-friction pistons improve sealing and reduce dispensing resistance.
Request For Our Latest Price →

Available Dual Cartridge Configurations

Dual cartridges are available in capacities from 5 ml to 1500 ml with mixing ratios including 1:1, 2:1, 3:1, 4:1, 5:1, and 10:1 for different two-component dispensing applications. Cartridge materials include PP, PE, and PBT to support various adhesive chemistries and viscosity ranges. Both vented and non-vented piston structures are available for rear-fill processes, leakage control, and stable dispensing performance across manual, pneumatic, and automated dispensing systems.

Item No. Ratio Capacity Exhausting Material Cartridge Material Plungers High(mm) Dia.A(mm) Dia.B(mm)
E1 1 : 1 50ml Y PP PE 118 21.67 21.67
E2 1 : 1 50ml N PP PE 118 21.67 21.67
E3 2 : 1 50ml Y PP PE 116 24.9 17.85
E4 2 : 1 50ml N PP PE 116 24.9 17.8
E5 10:1 50ml Y PBT PE 122 22 7
E6 10:1 75ml Y PBT PE 153.8 30 10.9
E7 1 : 1 400ml Y PE PE 220 44.5 44.5
E8 4 : 1 50ml Y PP PE 114 25 13.6
E11 2 : 1 400ml Y PP PE – – –
ABNS1 1:1 5ml N PP PE 82.6 8.9 8.9
ABNS2 1:1 24ml / PP PE 81.7 18.2 18.2
ABNS3 1:1 590ml Y PP PE 216 48 48
ABNS4 1:1 600ml Y PP PE 207 50 50
ABNS5 2:1 450ml Y PE PE 208 50 37
ABNS6 2:1 900ml N PP PE 214 70 50
ABNS7 3:1 385ml Y PP PE 159.2 55.7 33.7
ABNS8 3:1 390ml N PP PE 212 47.7 29
ABNS9 5:1 360ml Y PP PE 212 47.7 23
ABNS10 10:1 250ml Y PBT PE 145.5 54.7 19.4
ABNS11 10:1 345ml Y PP PE 219 49.5 18.7
ABNS12 10:1 380ml N PP PE 187.4 64 23.2
ABNS13 10:1 490ml Y PBT PE 183 66 23
ABNS14 1:1 1500ml N PP PE 218 77.6 77.6
ABNS15 4 : 1 5ml N PP PE 82.6 11.05 6
ABNS16 4 : 1 375ml N PP PE 255 50 27.6
ABNS17 1:1 14ml N PP PE 81.7 13.5 13.5
ABNS19 1:1 1500ml N PP PE – – –
ABNS20 3:1 585ml Y PP PE – – –
New1 1:1 6ml N PP PE – – –

How to Choose the Right Dual Cartridge

  • Mix Ratio Requirements: Choose a cartridge that matches the adhesive’s required mix ratio, to maintain accurate component proportioning during dispensing.
  • Cartridge Capacity: Select the appropriate cartridge volume based on dispensing output, production cycle, and material consumption requirements.
  • Material Selection: PBT, PA, and PP dual cartridges are available for different adhesive chemistries and dispensing conditions. Material selection should consider chemical resistance, strength, and application environment.
  • Piston Structure: Vented pistons are suitable for rear-fill processes by releasing trapped air during filling, while non-vented pistons provide a fully sealed structure after filling. Pistons with sealing rings help reduce leakage for low-viscosity materials, while pistons without sealing rings can lower dispensing resistance for high-viscosity adhesives.

Customization Options for Dual Cartridge

Standard dual cartridges may fail to meet your demands. Customization ensures the dual cartridge integrates with your dispensing tools, materials, and branding requirements.

OEM Manufacturing

OEM Manufacturing

Execute mass production precisely adhering to your drawings and material, ensuring dimensional conformity and tolerance control.

ODM Development

ODM Development

As professional dual chambers cartridge manufacturers, we can design new cartridge structures and develop new models according to your specific application requirements.

Interface & Integration

Interface & Integration

Customize volume, material, and vented piston for seamless integration with different equipment and dispensing systems.

Private Label Options

Private Label Options

Personalize your product with engraved logos, custom colors, and tailored packaging to strengthen market presence.

Excellent Performance in Industrial Applications

Dual cartridges provide a reliable way to maintain the correct mix ratio. But every environment has its own challenges. our systems are built to handle the unique viscosity and curing requirements of these core applications.

Maintenance, Infrastructure and Validation of Dual Cartridge Gun

Construction & Building Structural Anchoring

For concrete and masonry bonding in applications such as tile and stone installation, as well as door, window, and pipeline sealing and fixation, leading dual chambers cartridge manufacturers offer medium or large volume two-part adhesive cartridges featuring matched pistons used in conjunction with dual dispensing guns. This design helps maintain ratio accuracy, ensuring powerful adhesion and long-term durability, even under demanding building environment conditions.

Send Inquiry Now
Structural Bonding and Assembly of Dual Cartridge Gun

Automotive & Transportation

Our dual chamber cartridges are used for dispensing two-component structural adhesives suitable for bonding and repairing metal components in mechanical manufacturing. These applications often require resistance to high mechanical loads and harsh operating conditions. When dispensing in scenarios subject to vibration or dynamic loading, controlled dispensing systems combined with two-part cartridges help maintain stable flow characteristics during longer dispensing cycles.

Send Inquiry Now
Electronics and Encapsulation of Dual Cartridge Gun

Electronics & Electrical

Small-capacity dual cartridges are used to house two-part potting compounds for delicate circuit protection, including the fixing and encapsulation of electronic components, providing excellent insulation and weather resistance. For precision dispensing in connector sealing and strain relief applications, a dual barrel syringe offers an ideal solution. When paired with manual or pneumatic applicators, these systems facilitate a steady, intended mix.

Send Inquiry Now

Related Product

Product

Static Mixing Nozzles

Check Now →
Product

Dual Cartridge Gun

Check Now →
Product

Dispensing Syringe

Check Now →
Product

Single Component Cartridge

Check Now →

Frequently Asked Questions About Dual Cartridge

What capacity ranges and mix ratios are supported by dual chamber cartridges?

−

The dual chamber cartridge is available from 50 ml to 1500 ml. Available mixing ratios include 1:1, 2:1, 3:1, 4:1, 5:1, and 10:1 for different adhesive and dispensing applications. In actual production, ratio accuracy is often affected by mismatches between dispensing guns, pistons, and static mixers rather than the cartridge body itself. As professional dual chambers cartridge manufacturers, Btektech can also support customized cartridge configurations based on filling systems, dispensing requirements, and adhesive properties.

How do PP, PA and PBT materials affect dual cartridge performance and limitations?

+

When should vented pistons be selected instead of non-vented pistons?

+

How do sealing-ring pistons compare to on-sealing pistons during dispensing?

+

How should side-by-side and coaxial dual cartridges be chosen for applications?

+
