In industrial dispensing and two-part adhesive applications, achieving a perfectly homogenous blend is critical to the structural integrity of the final bond. static mixing nozzles are precision-engineered, motionless devices designed to achieve this consistency without the need for external power or moving parts. By utilizing the energy of the fluid flow, these nozzles ensure that multicomponent resins, such as epoxies and urethanes, are fully activated before they reach the substrate.
What is a Static Mixing Nozzle and How Does It Work?
A static mixer nozzle consists of fixed internal elements—such as helices or baffles—housed within a cylindrical or square tube. As the A and B components are pushed through the nozzle, they undergo three primary mixing mechanisms:
- Laminar Flow and Stream Division (2N Principle): Most industrial adhesive dispensing occurs under laminar flow conditions, where fluids move in smooth, parallel layers. The internal elements split the flow into sub-streams. For helical designs, the number of layers increases exponentially; after N elements, the fluid is divided into 2N layers.
- Convective Mixing (Rotation and Reversal): The elements redirect the flow from the center to the wall and back again, eliminating radial gradients and ensuring temperature and concentration uniformity.
- Dispersive Mixing (Folding and Recombination): The divided streams are continuously stretched, folded, and recombined downstream of each element. This repeated folding action increases the interfacial area between components, leading to a homogenous mixture within a very short distance.

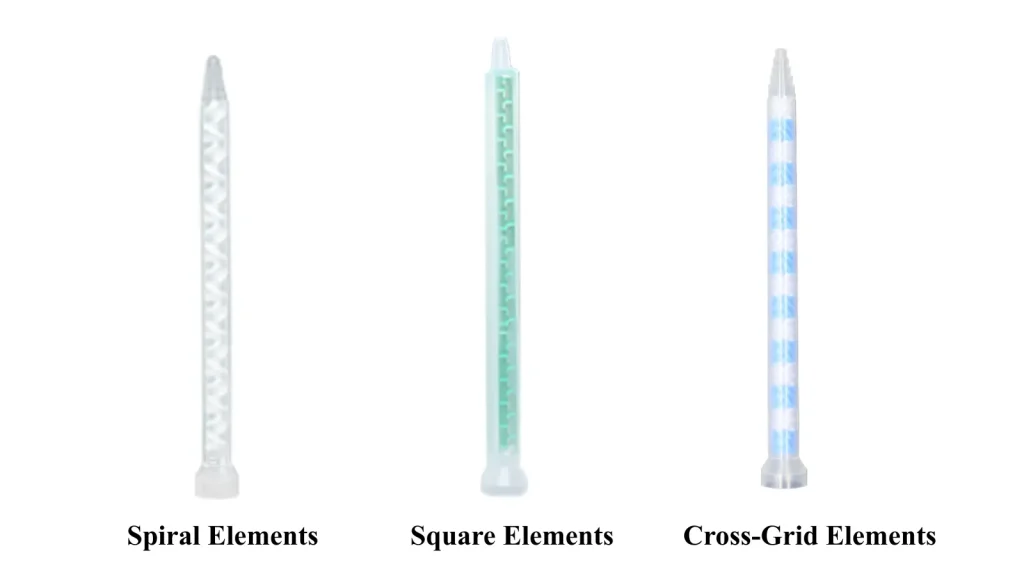

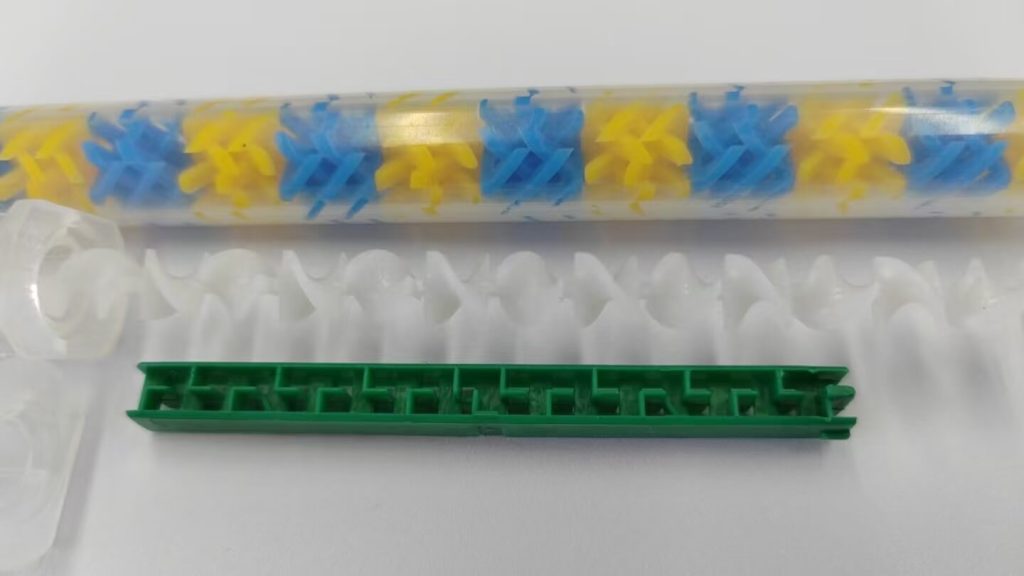

Understanding Static Mixer Element Geometries
The geometry of the internal mixing elements determines the efficiency, length, and pressure drop of the nozzle.
Spiral (Helical) Elements
Helical elements are the traditional industry standard, featuring alternating right-hand and left-hand twisted plates. They are renowned for their reliability across both laminar and turbulent flow regimes. However, because they require more linear distance to achieve full homogenization, helical nozzles are typically longer than modern alternatives.
Square (Quadro) Elements
The Square Mixing Nozzle represents the next generation of dispensing technology. These nozzles utilize a square-shaped grid design. This compact design drastically reduces the Low Retained Volume, decreasing the amount of expensive adhesive wasted inside the tube.
Cross-Grid Elements
For the most demanding applications, the Cross-Grid Mixing Nozzle is the ideal solution particularly for materials with a Wide Viscosity Ratio. TThese structured X-shaped elements provide high shear force, perfect for systems where one component is significantly thicker than the other. The design ensures uniform radial mixing even in thick resins, eliminating “wall effects” and unmixed streaks.

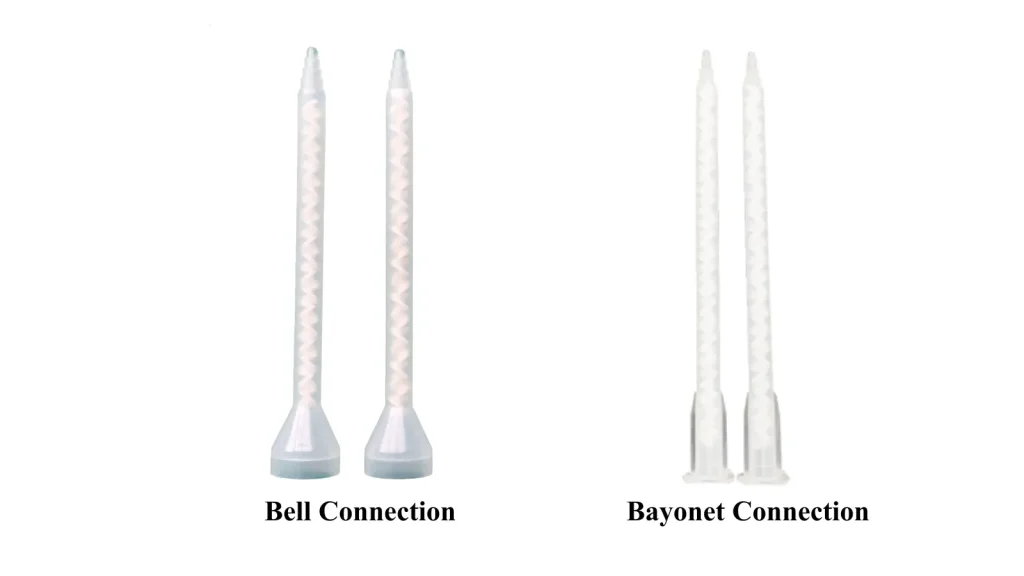

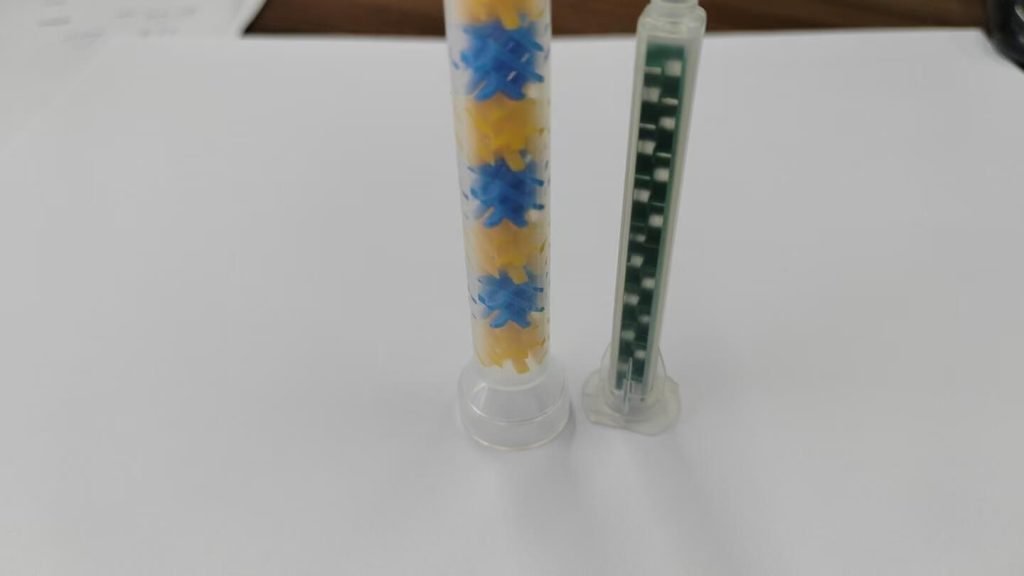

Interface and Connection Families
The inlet of a static mixer must match the specific cartridge or meter-mix machine being used to prevent leakage and cross-contamination.
Bayonet Connection
Commonly used with smaller dispensing systems, the Bayonet Mixer Nozzle is specifically designed for 50ml dual cartridges. It is confirmed to support 1:1 and 2:1 ratio systems.This system provides a secure, leak-free seal for manual or pneumatic handheld dispensing guns. The design often includes separate outlets for components A and B to ensure they do not meet prematurely at the cartridge nose.
Bell Connection
The Bell Static Mixer Nozzle is the standard for industrial-scale dispensing using large-volume cartridges ranging from 200ml to 1500ml. These nozzles support a full range of ratios including 1:1, 2:1, 4:1, and 10:1.The wide “bell-mouth” inlet allows high-viscosity or high-volume materials to enter the mixing path smoothly, reducing pressure resistance The housing is secured to the equipment (such as automated Meter Mix and Dispense machines) using a separate retaining nut, allowing it to withstand high back-pressures during continuous operation.

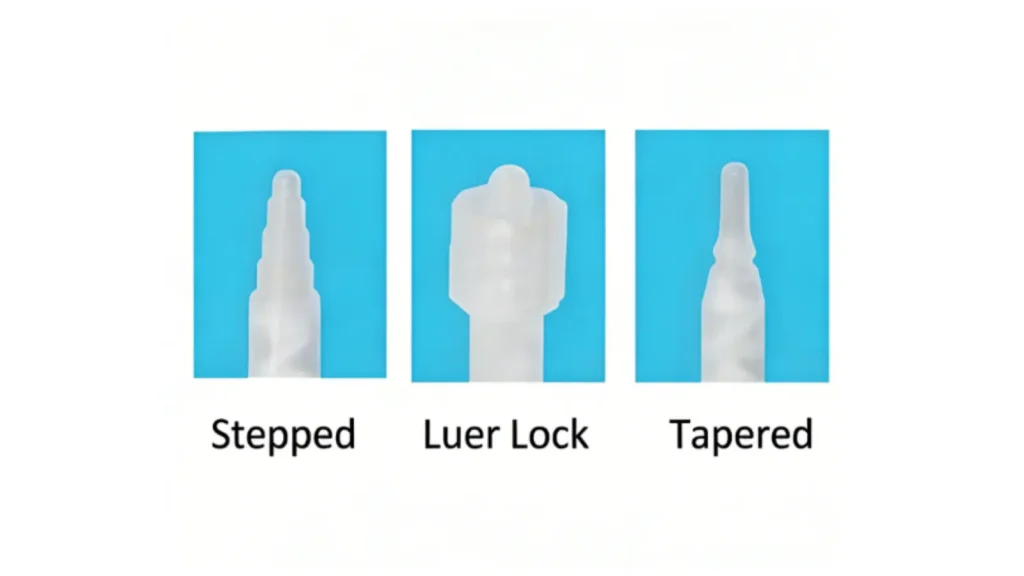

Outlet Forms and Dispensing Behavior
The nozzle outlet, or tip, dictates the bead size and the precision of the adhesive application.
- Stepped Outlets: These feature a tiered design that provides maximum versatility. Users can cut the tip at various intervals to increase the bead size for high-volume bonding without needing additional adapters.
- Tapered Outlets: These provide a fixed, consistent bead size and are ideal for applications requiring repeatable, standard dispensing without manual adjustment.
- Luer Lock Outlets: Essential for high-tech industries like electronics, these outlets allow for the attachment of precision metal needles or fine-gauge tips. They enable ultra-precise micro-dispensing for delicate components.
Practical Selection Guide: How to Choose the Right Static Mixer?
Selecting the correct nozzle involves balancing several technical factors to ensure the adhesive performs as specified on its Technical Data Sheet (TDS):
- Mix Ratio
Materials with a 1:1 ratio are easier to blend, while 10:1 ratios require more elements to achieve homogeneity.
- Viscosity
Thicker materials require larger diameter openings to flow correctly and may benefit from square or cross-grid elements to overcome flow resistance.
- Adhesive Chemistry
If the viscosities of Part A and Part B are significantly different, a higher element count is necessary to prevent “streaking” or soft spots in the cured bond.
- Shot Size and Flow Rate
Faster dispensing or larger shot sizes typically require fewer elements but a larger diameter to manage the resulting pressure drop.
Troubleshooting and Maintenance Tips
While static mixers are designed as disposable components to ensure process reliability, certain operational errors can still occur:
- Adhesive Leakage at Interface: Often caused by using the wrong connection type (e.g., trying to fit a bell mixer on a bayonet cartridge) or failing to tighten the retaining nut.
- Curing Inside the Tube: This happens when pauses in dispensing exceed the material’s “pot life”. If the adhesive begins to react, the internal channels will clog, and the nozzle must be replaced.
- Pressure Drops: Excessive resistance can be caused by using a nozzle with too many elements or one that is too narrow for the material’s viscosity.
- Backflow and Blockage: Leaving a used nozzle attached to the cartridge after use can cause material to cure at the cartridge outlet, ruining the remaining adhesive.
Frequently Asked Questions (FAQs)
Uneven curing or localized soft spots are typically the result of partial mixing failure. This is often caused by an insufficient number of mixing elements for the specific adhesive ratio or attempting to dispense in environments that are too cold, which increases viscosity and prevents proper shearing.
No. Static mixers are intended for single use. Even with immediate flushing, it is nearly impossible to remove all residual adhesive from the internal geometries. Any remaining material will cure, leading to blockages or contamination in the next batch.
When installing a new nozzle, you should always dispense and discard a small amount of adhesive (roughly the volume of the nozzle). This ensures that both components have fully entered the mixing elements and are reaching the tip as a perfectly homogenous blend.
Yes. Static mixers are highly effective for high-viscosity laminar flow applications. For materials exceeding 10,000 cP, helical or structured cross-grid elements are often recommended to provide the necessary flow reorganization.
