Accurate, Efficient, and Controlled Dispensing for Hard-to-Reach Areas

Btektech Angled Syringe Dispensing Tips are engineered for precise dispensing in tight or obstructed areas. Constructed with a stainless steel tip and polypropylene (PP) hub, they are available in 45° and 90° configurations.

Product Advantages & Technical Features

Angled Dispensing Tip: Enhanced Reach and Precision for Complex Applications

Angled Syringe Tip,18 Gauge, Green, 45 Degrees

· Access Confined Areas with Ease:

Fixed 45° and 90° bend designs offer effortless access to recessed components, reducing assembly delays and unnecessary part repositioning in production lines.

· Minimize Contamination & Rework:

Enhanced fluid control minimizes overspill, smearing, and cross-contamination between adjacent parts—reducing material usage, defects, and rework time.

· Optimized Material Compatibility:

The hybrid design combines a polypropylene (PP) or metal hub with a smooth, clog-resistant stainless-steel needle. This ensures leak-free dispensing of adhesives, epoxies, UV glue, and other materials across various industrial environments.

Applications Across Industries

Btektech Angled Tips deliver exceptional reach and precision across a variety of industrial dispensing applications.

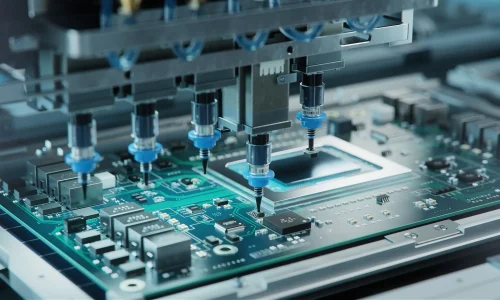

Electronics & SMT Assembly

Ideal for electronics manufacturing and SMT assembly, these Angled Syringe Tips ensure precise dispensing of epoxies, fluxes, and adhesives on PCBs and micro-components. The angled design enables easy access to densely populated circuit areas, providing greater control, cleaner results, and reduced rework.

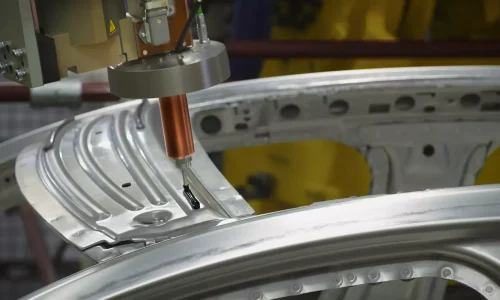

Automotive Manufacturing

Perfect for automotive assembly processes such as sealing, bonding, and lubrication in confined engine or chassis areas. The durable polypropylene (PP) and stainless-steel construction resists oils, greases, and production heat, ensuring consistent performance and long service life.

Aerospace & Industrial Bonding

In aerospace and other precision bonding applications, accuracy and reliability are critical. Angled Syringe Dispensing Tips deliver steady, controlled material flow for adhesives and coatings used in structural and safety-critical assemblies, ensuring both integrity and process consistency.

Product Models & Technical Specifications

Explore the complete range of Btektech Angled Dispensing Tips in the table below. Each model’s part number links to its detailed specifications and pricing sheet. For a comprehensive overview of all our dispensing consumables, please contact us or download the product catalog.

Gauge	Color		ID(mm)	OD(mm)	12.7mm(45°)	12.7mm(90°)
14		Olive	1.54(0.06″)	1.83(0.072″)	9018044	9018045
15		Amber	1.36(0.053″)	1.65(0.065″)	9018069	9018070
16		Grey	1.19(0.047″)	1.64(0.06)	9018076	9018077
18		Green	0.84(0.033″)	1.27(0.05″)	9018123	9018124
20		Pink	0.61(0.024″)	0.91(0.036″)	9018179	9018180
21		Purple	0.51(0.02″)	0.82(0.032″)	9018234	9018235
22		Blue	0.41(0.016″)	0.72(0.028″)	9018273	9018274
23		Orange	0.33(0.013″)	0.65(0.025″)	9018315	9018316
25		Red	0.25(0.01″)	0.52(0.02″)	9018346	9018347
27		Clear	0.2(0.008″)	0.42(0.016″)	9018404	9018405
30		Lavender	0.15(0.006″)	0.31(0.012″)	9018434	9018435

Angled Dispensing Tips vs. Other Dispensing Tips: Choose the Best for Your Application

Need precise access to hard-to-reach areas? Our Angled Tips are engineered to navigate confined spaces without compromising on flow control or application accuracy. This comparison helps you find the right tip geometry for tight assemblies and complex production setups.

	Angled Tips	Flexible Tips	Tapered Tips
Best For	Reaching recessed components and hard-to-access assembly areas	Scratch-free dispensing on delicate or curved surfaces	High-viscosity materials in tight or angled locations
Core Construction	Stainless-steel needle with PP or metal hub (45°/90° bend)	Fully PP flexible or one-piece PP structure	High-grade polypropylene (straight or 35° bent)
Key Advantage	Provides angled precision and reduces part repositioning	Bendable and trim-to-fit for custom reach	Smooth, clog-resistant flow for thick materials
Common Applications	Electronics SMT, automotive bonding, industrial assembly	PCB assembly, medical devices, narrow grooves	Electronics bonding, LED sealing, thick fluid coating

Need a Custom Solution? We've Got You Covered.

At Btektech, we engineer custom solutions for all products related to adhesives and fluid dispensing.Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Our Customization Options Include:

· Physical Attributes: Size, material, and color.

· Branding: Custom packaging and logo application.

· Functional Design: Modifications based on your requirements.

To get started, simply share your basic drawings, functional specifications, or intended usage scenarios. Our engineering team will assess feasibility and collaborate with you to develop a high-performance, reliable solution.

Partner with Btektech for Precision

From initial design to final delivery, we ensure your custom solution achieves unmatched consistency. If you have a customization need, contact us today to discuss your project.

Related Products

Your complete dispensing solution awaits. Browse our full portfolio of engineered-for-excellence consumables to find every component you need for flawless results, all backed by our expertise and support.

Brush Dispensing Tips

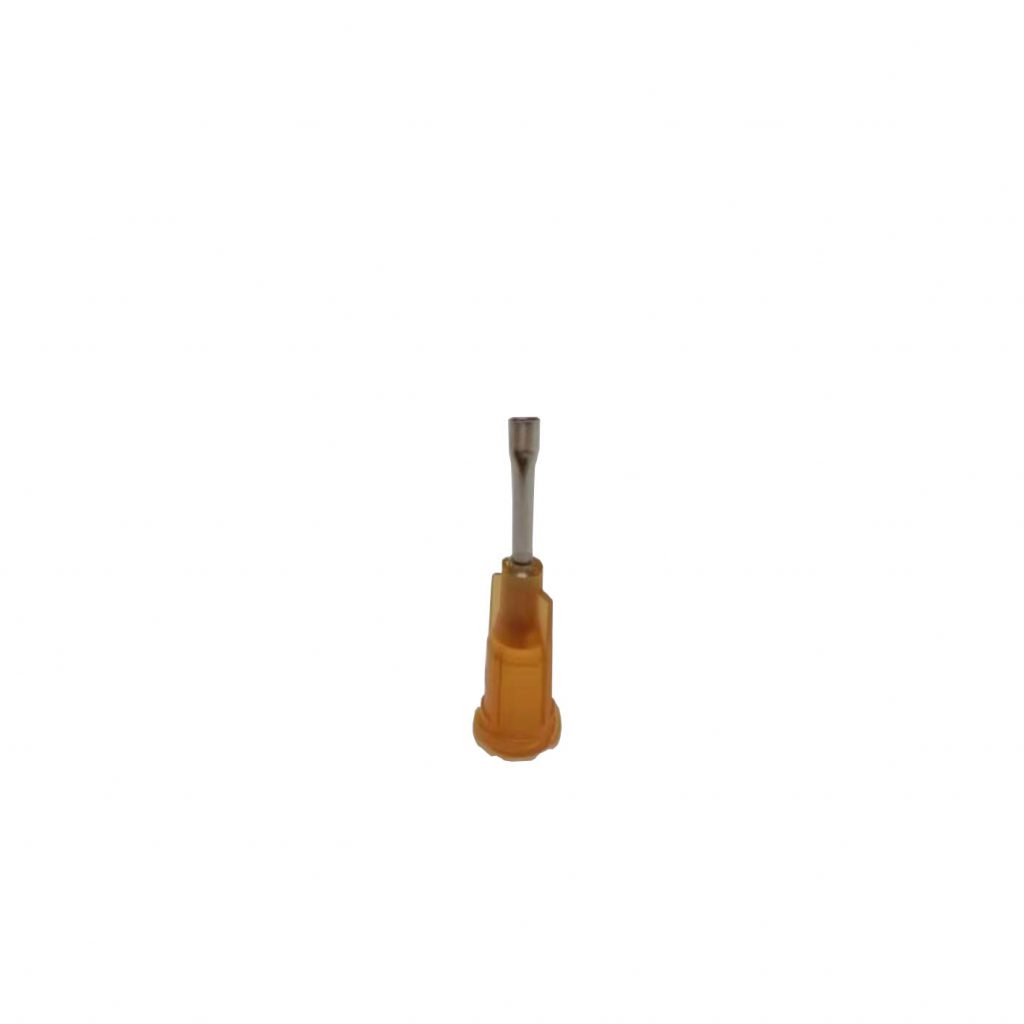

Oval Dispensing Tips

Tapered Dispensing Tips

Flexible Dispensing Tips

PTFE-lined Dispensing Tips

Stainless Steel Dispensing Tips

Frequently Asked Questions (FAQ)

Q1 What materials are Btektech Angled Tips made of?

Our products feature a burr-free, polished stainless-steel needle paired with either a polypropylene (PP) or metal hub. Metal hubs and stainless-steel needles provide superior mechanical strength, while PP hubs offer a cost-effective option for general dispensing applications.

Q2 What angle options are available?

Btektech offers Angled Tips in standard 45° and 90° configurations, providing easy access to hard-to-reach or confined areas during adhesive or coating applications.

Q3 How do I choose between PP and metal hubs?

Btektech offers two hub options to meet different application needs. PP hubs are made of polypropylene bonded to a stainless-steel needle with epoxy adhesive. They offer a lightweight and cost-effective structure suitable for standard dispensing needs. Metal hubs are mechanically joined to the stainless-steel needle through a riveted connection, providing higher mechanical strength and improved structural stability for demanding applications. Whichever option you choose, every Btektech Angled Tip is engineered for precision, safety, and dependable performance on your production line.

Q4 Are Btektech Angled Tips compatible with standard dispensing equipment?

Absolutely. They are designed for universal compatibility with standard Luer Lock syringes, valves, and other dispensing systems, allowing for seamless integration into existing setups.

Q5 Do you provide custom sizes or bend angles?

Yes. As the direct manufacturer, Btektech provides fully customizable options — including specific lengths, inner diameters, and bend angles to meet your exact production and application requirements.
