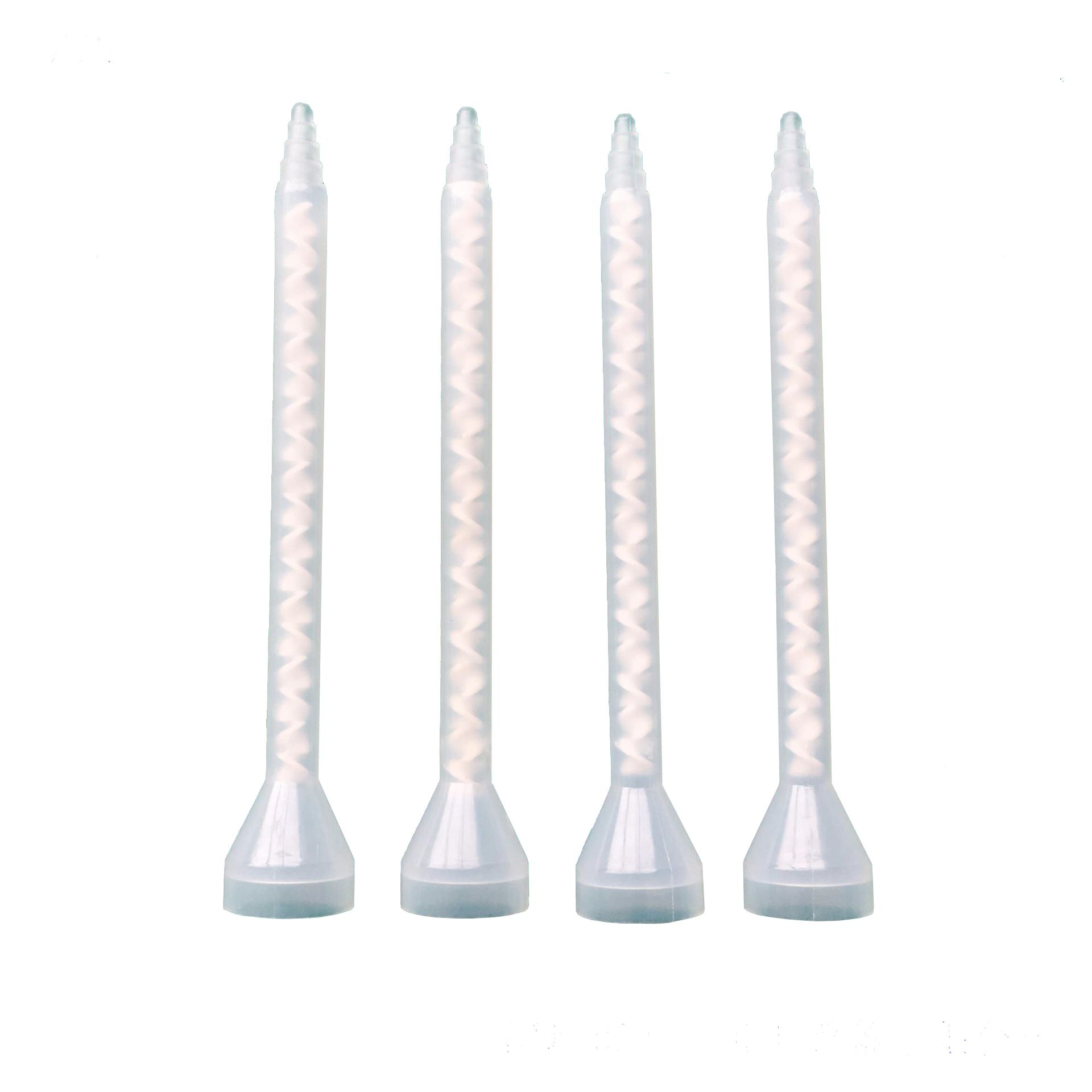

Bell Mouth Static Epoxy Mixing Nozzles, specially designed for 200ml and 400mlAB glue guns. If the interface is suitable, the product can also be used on any two-component liquid mixing machine.
$0.17

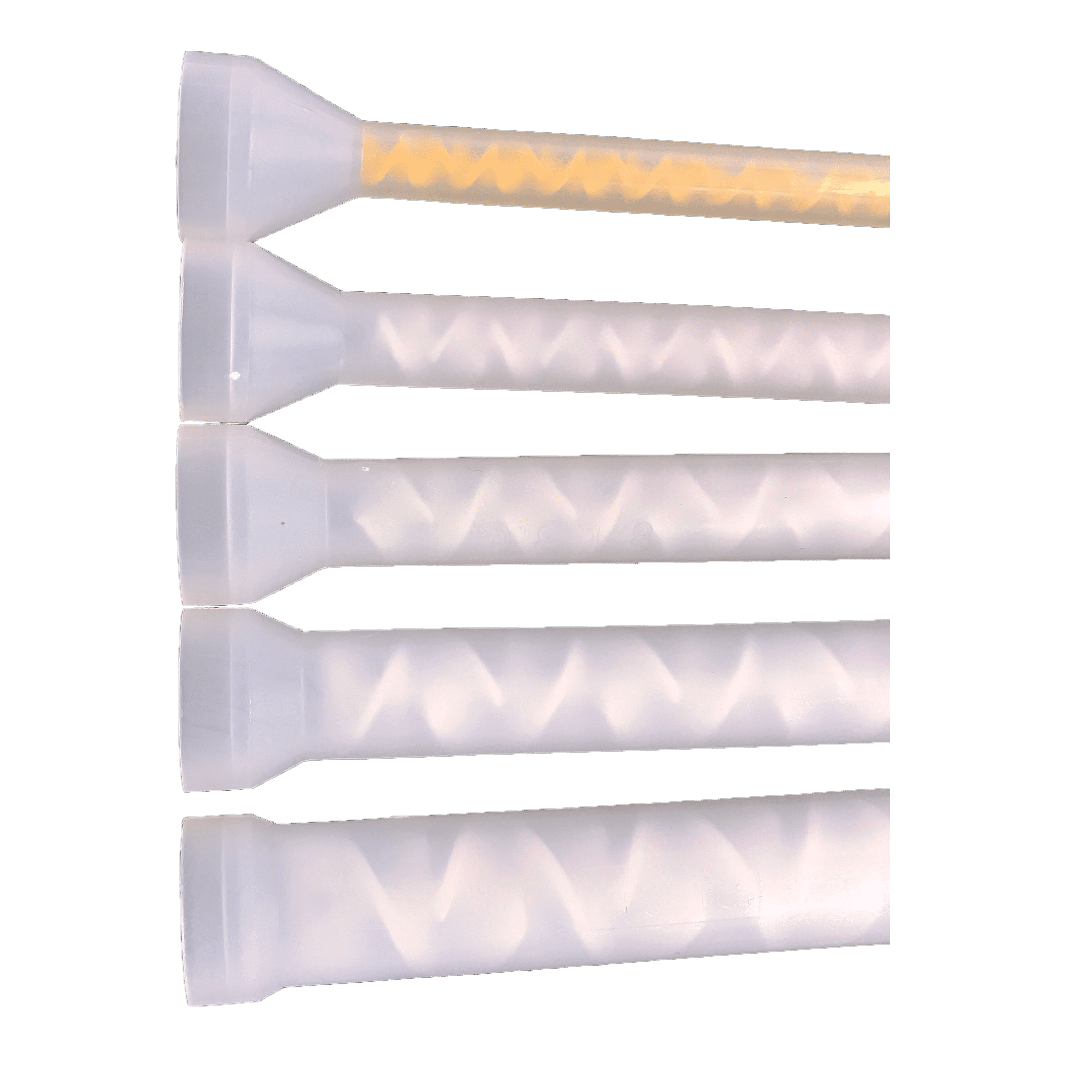

Bell Mouth Static Epoxy Mixing Nozzles:
The interface diameter of the bell mouth static epoxy mixing nozzle is 16.7mm, which is the unified standard of the industry. It is often used for the high-pressure operation of glue filling machines. If used for high viscosity glue mixing, please add a metal coat to ensure safe operation and mixing quality.

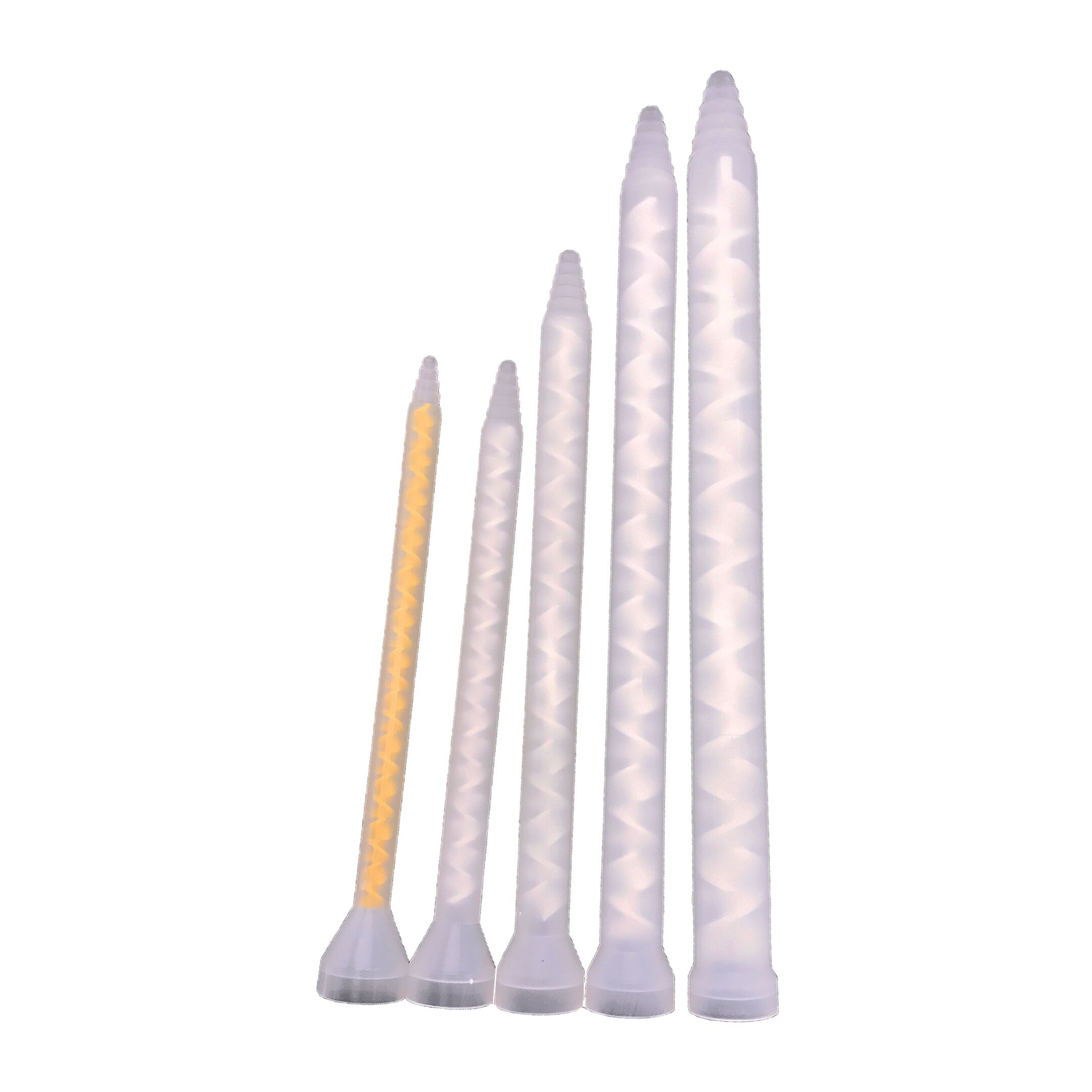

Customers can choose products with different inner diameter and length specifications according to the mixing characteristics of two-component adhesive to better improve the mixing effect of two-component liquid materials.
| No. | Part No. | Elements | I.D.(mm) | L (mm) | O.D.(mm) | A (mm) | Inner-core Color |
|---|---|---|---|---|---|---|---|
| B5 | PMC05-18 | 18 | 5 | 120 | 8 | 1.5 | White/Yellow/Blue |
| B6 | PMC05-24 | 24 | 5 | 149 | 8 | 1.5 | White/Yellow/Blue |
| B7 | PMS05-32 | 32 | 5 | 188 | 8 | 1.5 | White/Yellow/Blue |
| B8 | PMC06-18 | 18 | 6.3 | 148 | 10 | 1.9 | White |
| B9 | PMC06-24L | 24 | 6.3 | 185 | 10 | 2 | White |
| B10 | PMS06-32 | 32 | 6.3 | 234 | 10 | 1.9 | White/Yellow |
| B11 | PMC08-18 | 18 | 8 | 175 | 12 | 2.4 | White |
| B12 | PMC08-24 | 24 | 8 | 223 | 12 | 2.4 | White/Yellow/Blue |
| B13 | PMC08-32 | 32 | 8 | 287 | 12 | 2.4 | White/Yellow/Blue |
| B14 | PMC10-12 | 12 | 10 | 156 | 14 | 3 | White |
| B15 | PMC10-18 | 18 | 10 | 215 | 14 | 3 | White |
| B16 | PMC10-24 | 24 | 10 | 276 | 14 | 3 | White/Yellow |
| B17 | PMS10-32 | 32 | 10 | 352 | 14 | 3 | White/Yellow /Blue |
| B18 | PMS13-18 | 18 | 13 | 223 | 17 | 4 | White |
| B19 | PMS13-24 | 24 | 13 | 293 | 17 | 4 | White/Yellow |
| B20 | PMS13-32 | 32 | 13 | 379 | 17 | 4 | White/Yellow |
| B21 | PMS13-36 | 36 | 13 | 423 | 17 | 4 | White/Yellow |
| B22 | PMC09-24 | 24 | 9 | 231 | 12.7 | 3 | White |
| B23 | PMS06-48 | 48 | 6.3 | 333.8 | 9.4 | 2 | White |
| B24 | PMS09-40 | 40 | 9.3 | 359 | 13 | 3 | White |
| B25 | PMC04-24 | 24 | 4.7 | 131.72 | 7.6 | 1.78 | White |
| B26 | PMC12-12 | 12 | 12.65 | 170.4 | 16.76 | 4 | Yellow |
| B27 | PMC13-12 | 12 | 13 | 197 | 17 | 4 | White/Yellow |
