The Bayonet Static Mixing Nozzle is a type of epoxy mixing nozzle that is commonly used in the dispensing of two-part adhesives and sealants. The nozzle features a bayonet connection that allows it to be easily attached and removed from the dispensing gun.
The Bayonet Static Epoxy Mixing Nozzles take light square bayonet style twist-lock, can be tightly connected to 50 ml AB glue cartridge.
The liquid can be from AB glue cartridge separate into the tube, Cut and recombine when flowing in the tube, thus playing a mixing role.
$0.45
Bayonet Static Epoxy Mixing Nozzles:
PMA Bayonet Static Epoxy Mixing Nozzles are suitable for 1:1 and 2:1 glue mixing. This series of epoxy mixing tubes can be cut through the stepped head of the static mixing tube to increase the outlet size or adapt the needle to reduce the outlet.
| No. | Part No. | Elements | I.D.(mm) | L(mm) | O.D.(mm) | A(mm) | Inner-core Color |
|---|---|---|---|---|---|---|---|
| A1 | PMC3.0-08S | 8 | 3 | 38 | 4.6 | 1 | White |
| A2 | PMA3.0-07S | 7 | 3 | 33.2 | 4.6 | 1 | White |

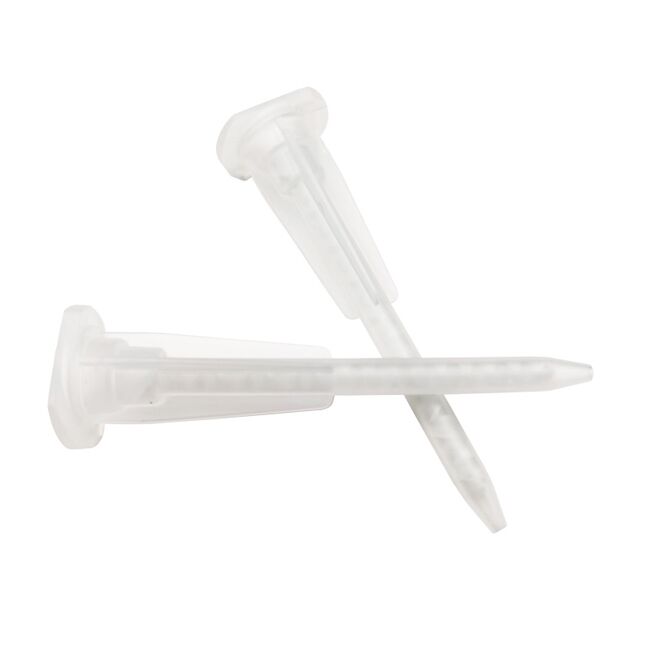

| A3 | PMA3.0-17S | 17 | 3 | 63 | 4.6 | 1 | White |

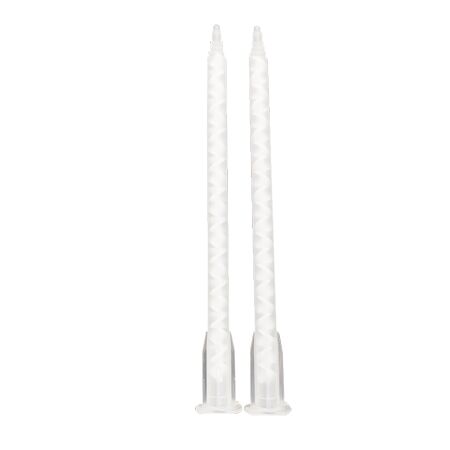

| A7 | PMA6.3-21S | 21 | 6.3 | 153 | 8.7 | 1.5 | White |
| A8 | PMA6.3-21L | 21 | 6.3 | 151.5 | 8.7 | 1.5 | White |
| A9 | PMA6.3-12S | 12 | 6.3 | 97 | 8.7 | 1.5 | White |
| A10 | PMA3.0-13S | 13 | 3 | 50.6 | 4.6 | 1 | White |
| A11 | PMA4.0-13S | 13 | 4 | 66 | 2.5 | 2 | White |
| A12 | PMA4.0-17S | 17 | 4 | 81.6 | 5.8 | 2 | White |
| A13 | PMA5.4-07S | 7 | 5.4 | 55.7 | 7 | 1.5 | White |
| A14 | PMA5.4-13S | 13 | 5.4 | 84.6 | 7 | 1.5 | White |
| A15 | PMA5.4-21S | 21 | 5.4 | 124 | 7.6 | 1.5 | White |
| A16 | PMA6.3-17S | 17 | 6.3 | 128 | 8.7 | 1.5 | White |
| A21 | PMX5.4-17S | 17 | 5.4 | 103.7 | 7.6 | 1.5 | Red |
