Introduction
This guide provides a structured overview of caulk gun types by material package format and drive method. The following sections explain how different mechanisms, drive methods, and package formats influence dispensing workflow conditions. At the end of the guide, a reference table is included to help you quickly compare formats.
How Does a Caulk Gun Work?
A caulk gun, also called a dispensing mechanism or adhesive applicator, is a controlled-delivery tool used to apply adhesives and sealants from cartridges or foil packs. When the trigger is pulled, force is transmitted through the drive system to the plunger, which advances into the cartridge and displaces material through the outlet. Whether the application involves construction sealing, automotive assembly, or industrial production, the mechanism type determines bead consistency, operator fatigue, and mixing accuracy.
Understanding the differences between manual vs pneumatic dispensing workflows helps explain why each drive method is suited to different operating conditions.
Basic Caulk Gun Mechanism
All caulk gun formats share a common mechanical principle: force is applied to a plunger rod, which travels through the cartridge or pack and pushes material toward the outlet. The key differences between formats lie in how that force is generated and transmitted.
- Trigger force transmission varies between manual and powered systems
- Rod movement is either hand-driven or motor/air-driven
- Pressure generation determines output consistency and operator effort
Why Different Caulk Gun Mechanisms Exist
Different dispensing conditions place different demands on the drive system, which is why multiple caulk gun mechanism types have developed independently.
- Trigger force transmission differs between manual lever systems and powered drive systems
- Manual pressure generation depends on operator input, while pneumatic and cordless systems generate pressure independently of hand strength
- Dispensing continuity requirements vary by workload — intermittent tasks tolerate manual input, while repetitive dispensing setups require sustained, consistent force output
Types of Caulk Guns by Drive Method
Manual Drive Systems
A manual drive system uses a hand-operated trigger mechanism to advance the plunger. No power source is required. Manual formats include standard lever-action cartridge guns and compact syringe dispensing tools.
Typical Workflow Conditions
- Low-to-medium volume sealing and bonding tasks
- Confined or access-restricted workspace without power infrastructure
- Electronics component bonding, laboratory validation, and prototype production
Advantages
- Compact and portable with no power dependency
- Simple to operate with a minimal learning curve
- Precise output volume control for low-volume processes; manual dispensing tool formats for syringe-based applications are covered separately
Limitations
- Continuous use causes hand fatigue
- Output force is limited by operator strength
- Not suited to high-viscosity or high-frequency repetitive dispensing setups

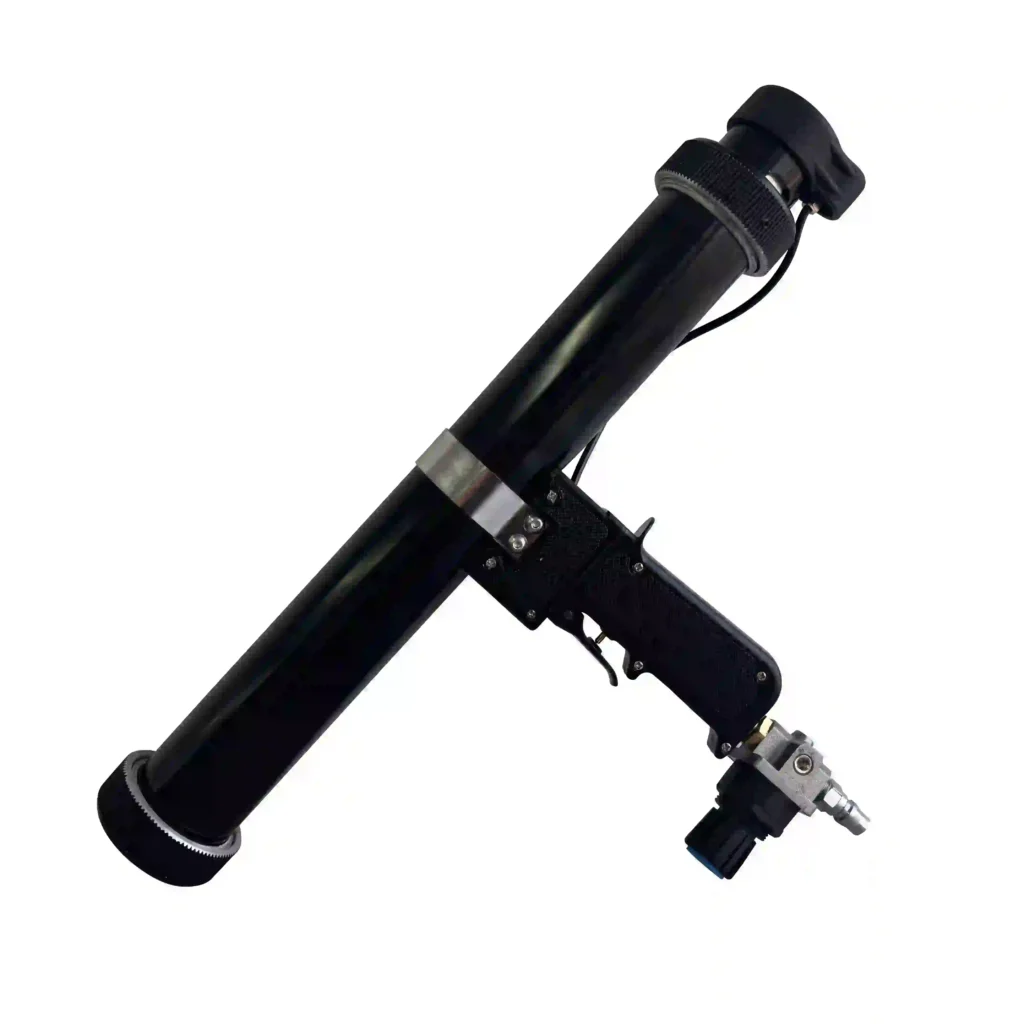

Pneumatic Drive Systems
A pneumatic dispensing system uses compressed air to drive the plunger, delivering consistent thrust without requiring operator hand force. Air pressure is typically adjustable, allowing output to be tuned to material viscosity. Pneumatic formats are available for single-component cartridges, dual cartridges, and sausage pack systems. A full overview of pneumatic dispensing system formats is available on the corresponding format page.
Typical Workflow Conditions
- Factory floor and workshop environments with repetitive dispensing continuity requirements
- High-viscosity or highly filled materials where manual thrust is insufficient
- Large-area building sealing with high material consumption
Advantages
- Steady, consistent output force produces uniform bead quality across long runs
- Adjustable air pressure provides flexibility across a wide viscosity range
- Reduces hand fatigue for sustained-use production-oriented dispensing
Limitations
- Requires a compressor and air lines, which limits job-site mobility
- Higher upfront equipment cost compared to manual tools
- Cannot be used in locations without a compressed air supply

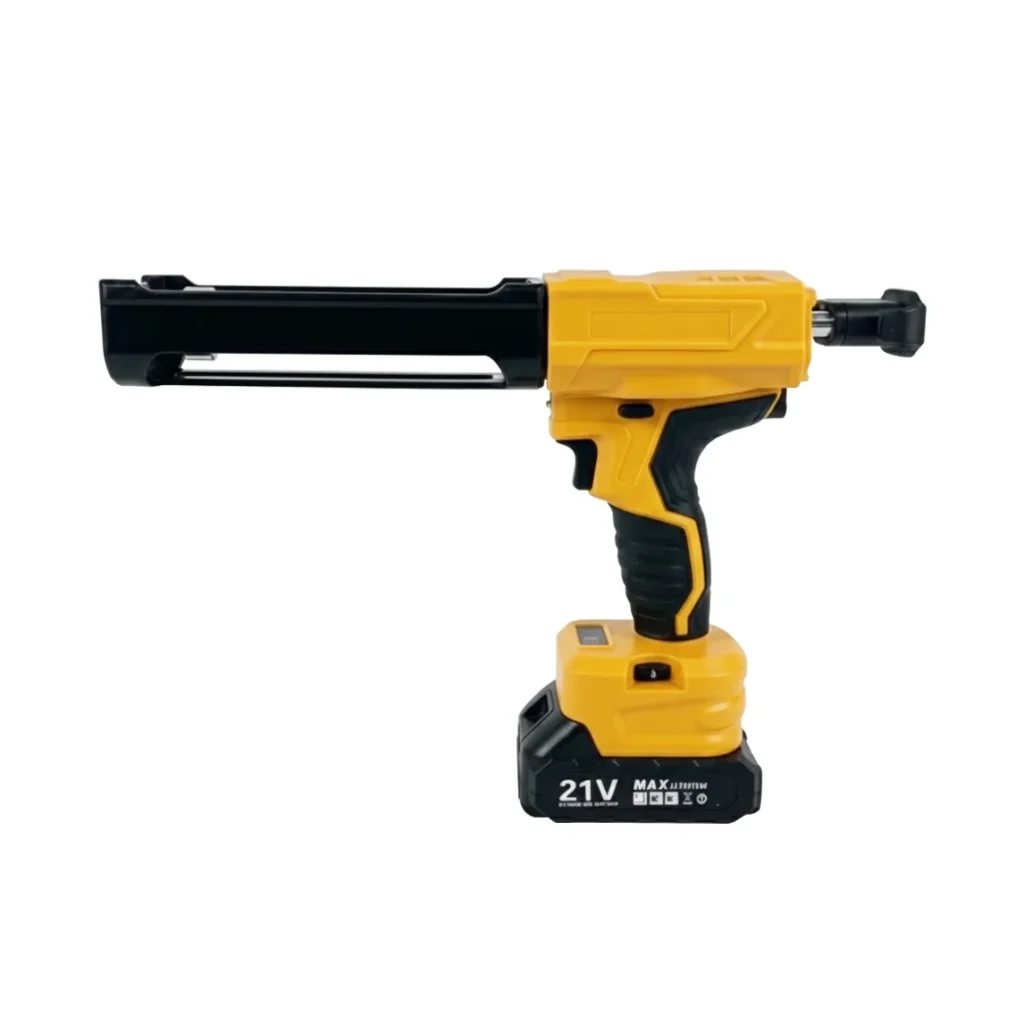

Cordless Drive Systems
A cordless dispensing workflow uses a rechargeable battery and motor-driven plunger to dispense sealants and adhesives without compressed air or a fixed power outlet. An automatic pressure-release system pulls the plunger back slightly when the trigger is released, preventing post-trigger drool. Cordless formats are available for single-component cartridges, sausage packs, and two-component cartridge systems. See the format page for a reference on cordless dispensing tool formats and available configurations.
Typical Workflow Conditions
- Intermittent or task-based applications with high mobility requirements
- Sites that need motorized output consistency but cannot accommodate compressor infrastructure
Advantages
- Fully wireless structure adapts to varied job-site conditions
- Motor delivers consistent force for a uniform bead from start to finish of the cartridge
Limitations
- Battery capacity and thermal limits restrict use in continuous production-line applications
- For long-cycle or highly repetitive duty, pneumatic tools offer superior sustained force and uptime
- Battery platform, charger, and plug standard must be matched to the operating environment
Types of Caulk Guns by Package Format

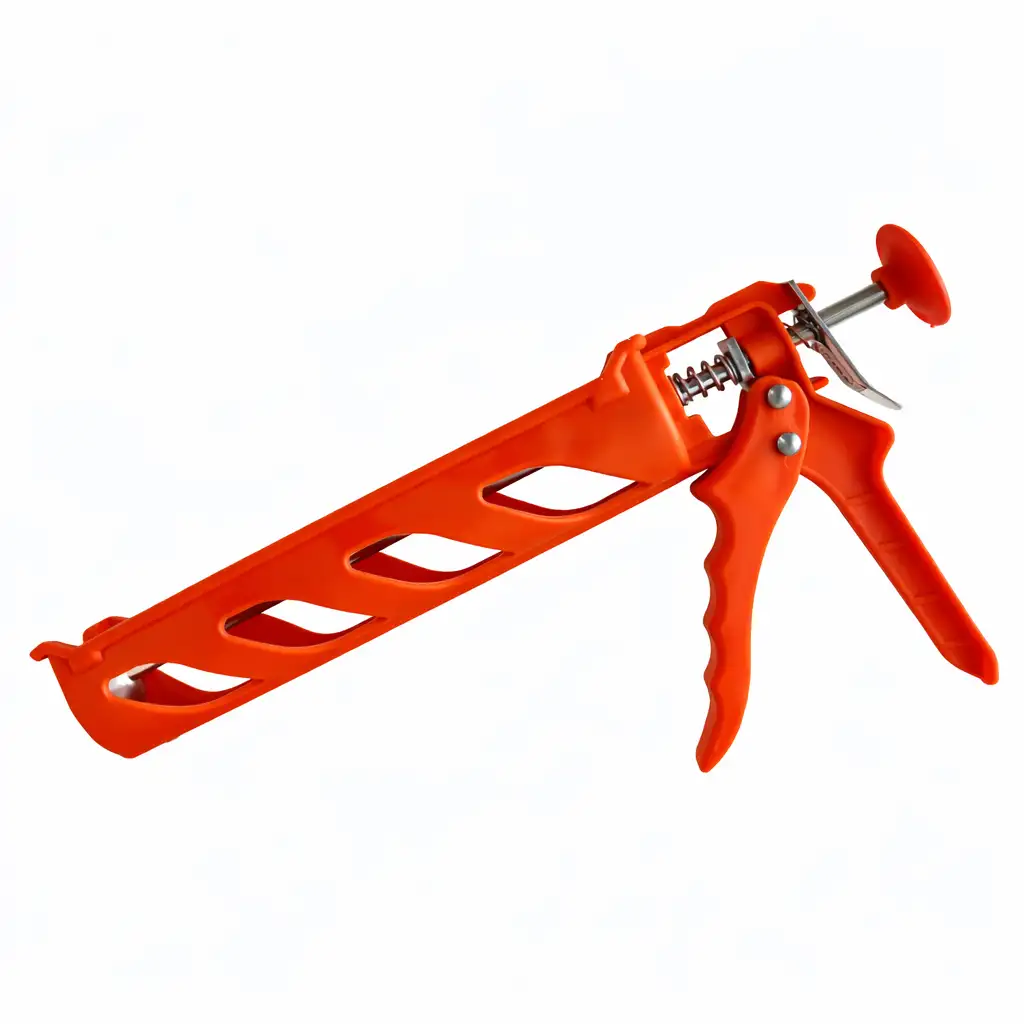

Cartridge Systems
Cartridge-based dispensing mechanisms are designed for rigid cartridges containing single-component materials. These systems are available in manual, pneumatic, and cordless drive configurations.
Typical Workflow Conditions
- Sealing windows, doors, joints, and pipe penetrations
- General construction weatherproofing
- Small to medium-volume applications using low-to-medium viscosity materials
Advantages
- Simple to operate with a minimal learning curve
- Standard cartridge formats are widely compatible and easy to source
- Full range of drive options available
Limitations
- Suitable for single-component materials only
- Manual versions cause hand fatigue over extended high-volume use

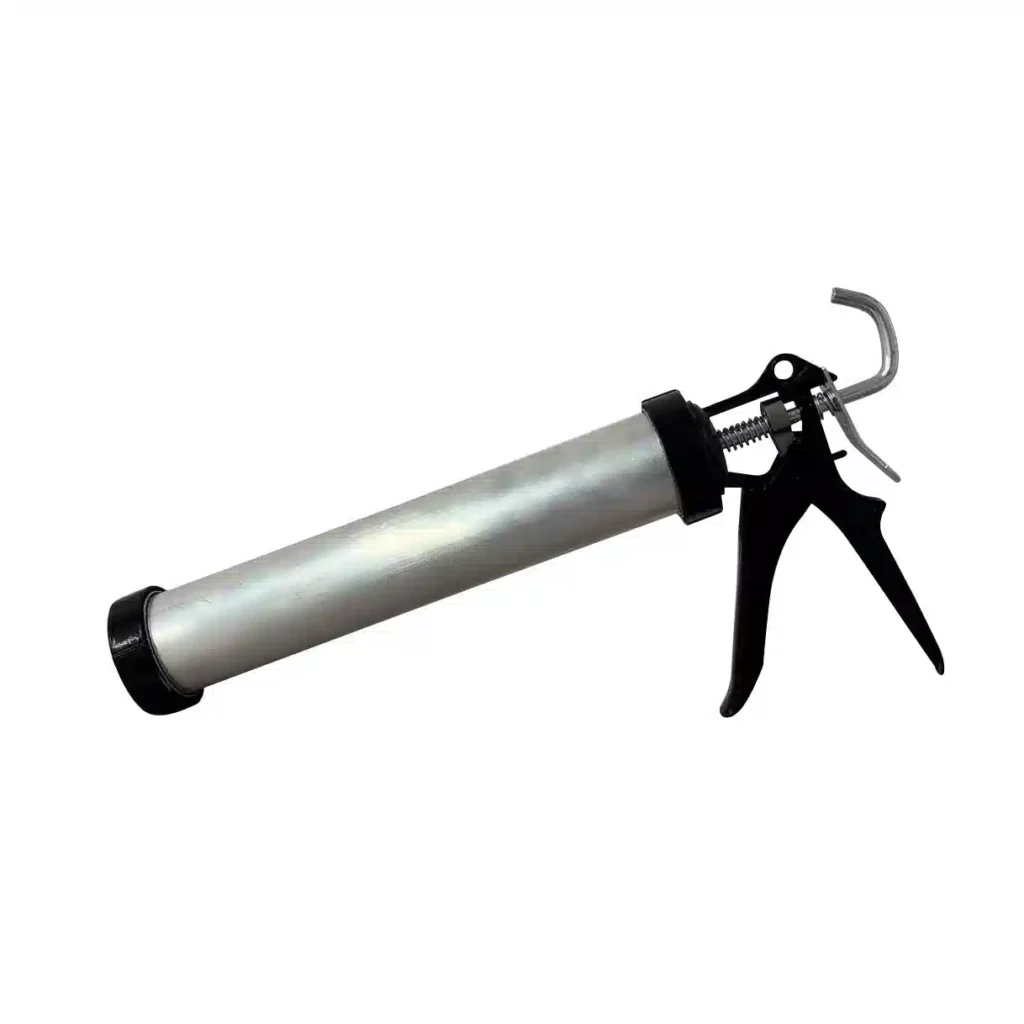

Sausage Pack Systems
A sausage dispensing format is designed to load flexible foil packs rather than rigid cartridges. Because the foil pack is compressed as material is dispensed, nearly all of the material can be used. Both manual and pneumatic drive configurations are available. For reference on sausage dispensing system formats, see the corresponding format page.
Typical Workflow Conditions
- Large-area building sealing such as curtain walls, expansion joints, windows, and doors
- High-consumption applications such as firestop and automotive body sealing
- Environments where bulk-packaged material is more cost-effective than rigid cartridges
Advantages
- High capacity reduces reload frequency and improves work continuity
- Minimal material waste — foil packs are nearly fully dispensable
- Pneumatic configuration preferred for large or demanding repetitive dispensing setups
Limitations
- Loading a foil pack requires slightly more setup than inserting a rigid cartridge
- Not appropriate for small-volume precision work or two-component systems requiring metered ratio control
Dual Cartridge Systems
A dual cartridge dispensing format, also called a 2K system, delivers two-component materials from paired cartridges at a controlled ratio. It is used when Part A and Part B must be dispensed together for proper curing. Manual, pneumatic, and cordless drive configurations are available. See the format page for a reference on dual cartridge dispensing configurations across available ratio and capacity options.
Typical Workflow Conditions
- Structural bonding and assembly using epoxy, PU, or MS systems
- Applications requiring precise volumetric ratios
- Low-to-medium volume assembly in construction, electronics, and manufacturing
Advantages
- Mechanical synchronization keeps both components evenly dispensed, reducing ratio errors
- No manual pre-mixing means less waste and fewer mixing errors
Limitations
- Must be matched to the correct cartridge ratio and size, not interchangeable
- A purge step is required before every session; initial output must be discarded
- Not suited to high-speed continuous automation
Understanding how cartridge formats affect dispensing workflow including the differences between single-component and two-component package systems — helps clarify why format selection and drive method are evaluated together.
Why Dispensing Workflow Changes Tool Requirements
The frequency and duration of dispensing operations directly affect which mechanism type is appropriate.
- Intermittent dispensing frequency can be handled by manual or cordless formats without significant productivity loss
- Repetitive trigger operation over extended periods accumulates operator fatigue, which reduces output consistency and increases error risk in manual systems
- Operator fatigue accumulation in sustained-use environments shifts the workload-dependent format decision toward pneumatic or motor-driven systems
For more on how drive method affects output under different conditions, see the comparison of repetitive dispensing workflow differences between manual and pneumatic systems.
Intermittent vs Repetitive Dispensing Conditions
Intermittent dispensing describes tasks where material is applied in short sessions with recovery time between applications. Repetitive dispensing describes sustained workflows where the trigger is engaged frequently or continuously over extended periods.
These two operating conditions place different demands on drive systems, package formats, and operator ergonomics. A format that performs well under intermittent conditions may not sustain consistent output under repetitive dispensing continuity requirements.
Why Mobility and Output Stability Often Conflict
Cordless and pneumatic systems represent different engineering priorities, and these priorities are difficult to satisfy simultaneously within a single format.
- Cordless dispensing workflows offer mobility advantages making them well suited to varied or remote workspace
- Pneumatic dispensing systems offer consistency advantages including stable pressure delivery, adjustable force, and sustained output over long runs, making them well suited to production-oriented dispensing environments
- Workspace limitation differences often determine which priority takes precedence: sites without compressor infrastructure favor cordless formats, while factory environments with air supply favor pneumatic systems
Quick Reference Table
| Format | Material | Typical Capacity | Drive |
| Cartridge (1K) | 1K | 300–600 ml | Manual / Pneumatic / Cordless |
| Dual Cartridge (2K) | 2K | 23–1500 ml | Manual / Pneumatic / Cordless |
| Sausage Pack | 1K | 300 / 600 ml | Manual / Pneumatic/ Cordless |
| Syringe (Manual) | 1K | 10 / 30 / 55 ml | Manual/ Cordless |
The table shows common capacity ranges. Additional capacity configurations may vary by dispensing format and system design. The above are the standard models. Btektech can also provide customized styles to meet your needs.
Conclusion
This guide covers the main caulk gun formats organized by drive method and package format, including manual, pneumatic, and cordless drive systems, and cartridge, sausage pack, and dual cartridge package formats.
The primary differences between formats lie in how force is generated and transmitted, which package types are accepted, and what dispensing workflow conditions each format is designed to support. Once those three dimensions are understood, it becomes straightforward to identify which structural category applies to a given dispensing context before consulting a dedicated product or selection page. For a reference overview of available industrial dispensing tool formats, standard configurations are listed on the product page.
FAQs About Caulk Gun Mechanisms and Formats
How does a caulk gun work?
When the trigger is pulled, force is transmitted through the drive system to the plunger rod. The plunger advances through the cartridge or pack, generating pressure that displaces material toward the outlet. The drive method determines how that force is produced and how consistently it is maintained across the dispensing session.
What is the basic mechanism inside a caulk gun?
The core mechanism involves three elements: force transmission from the trigger or drive system, rod movement through the cartridge body, and pressure generation at the material outlet. All caulk gun formats share this basic structure; the differences lie in how force is introduced into the system.
Why are there different types of caulk guns?
Different formats exist because workload conditions, package formats, and mobility requirements vary significantly across applications. A workload-dependent format decision involves evaluating how frequently dispensing occurs, what package type the material is supplied in, and whether the workspace supports compressed air infrastructure or requires wireless operation.
Do all caulk guns require a static mixing nozzle?
No. Static mixing nozzles are only needed for dual cartridge systems. Single-component formats dispense material directly without mixing.
What do 1K and 2K mean in caulk gun classifications?
1K refers to single-component material — ready to dispense without mixing. 2K requires Part A and Part B to be dispensed together and mixed before curing activates.
