Dispensing Syringe

Dispensing Syringe

Controlled Manual Dispensing for Industrial Adhesives and Fluids

Designed for controlled manual dispensing in repair, laboratory, and fine assembly applications. These dispensing syringes are used for manual dispensing of adhesives, grease, and fluids, and support accurate fluid placement, adapt to different viscosities.

Get a Quick Quote
Dispensing Syringe white background
thumb
thumb
thumb
thumb

Key Advantages of Dispensing Syringe

Adhesive syringe satisfies material compatibility with specific piston designs and flexible integration across manual dispensing tasks.
  • Chemical-Resistant Polypropylene: PP is generally inert to aggressive solvents and oils under normal conditions.
  • Specific Piston Designs: Rubber pistons provide smooth, virtually leak-free operation. All-plastic pistons reduce the risk of elastomer contamination.
  • Piston Options for Different Fluids: Rubber pistons typically provide tighter sealing for lower- to medium-viscosity fluids. All-plastic pistons reduce elastomer contact when contamination sensitivity matters.
  • Capacity Range for Manual Work: Small barrels help you control low-volume dosing. Larger barrels reduce refill frequency when precision still matters but throughput is higher.
Request For Our Latest Price →

Available Dispensing Syringe

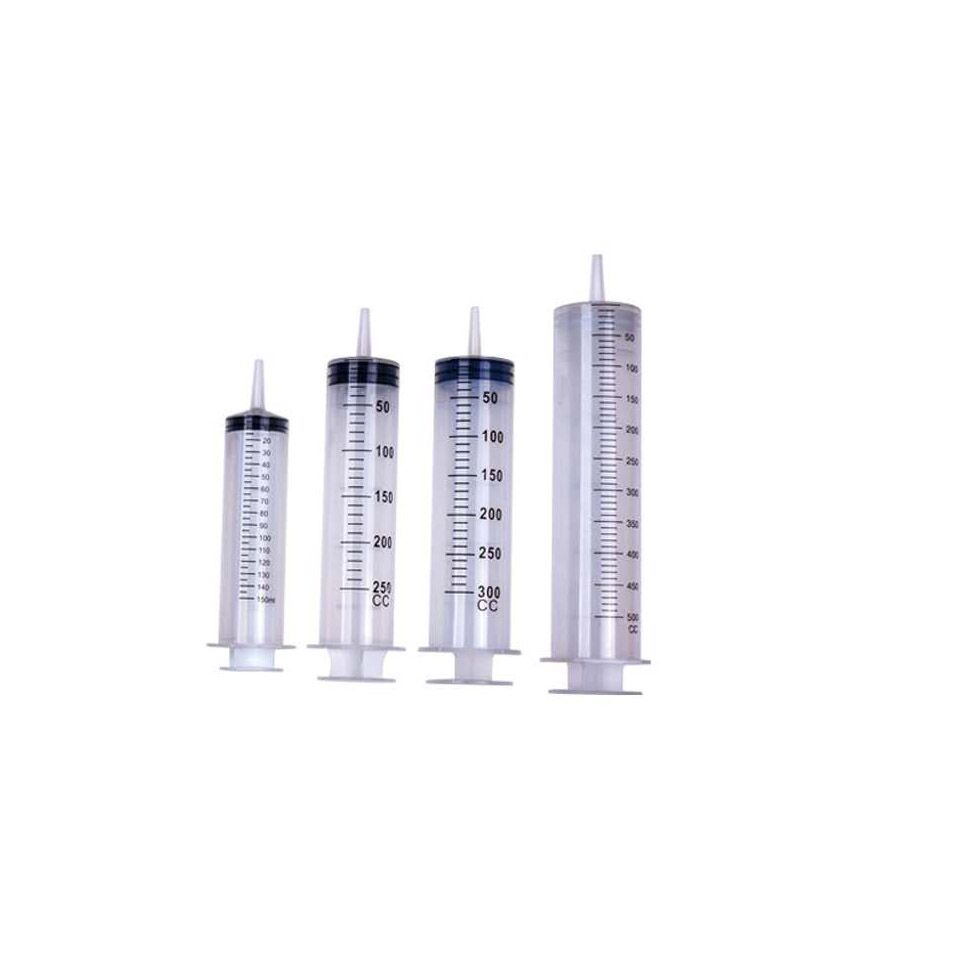

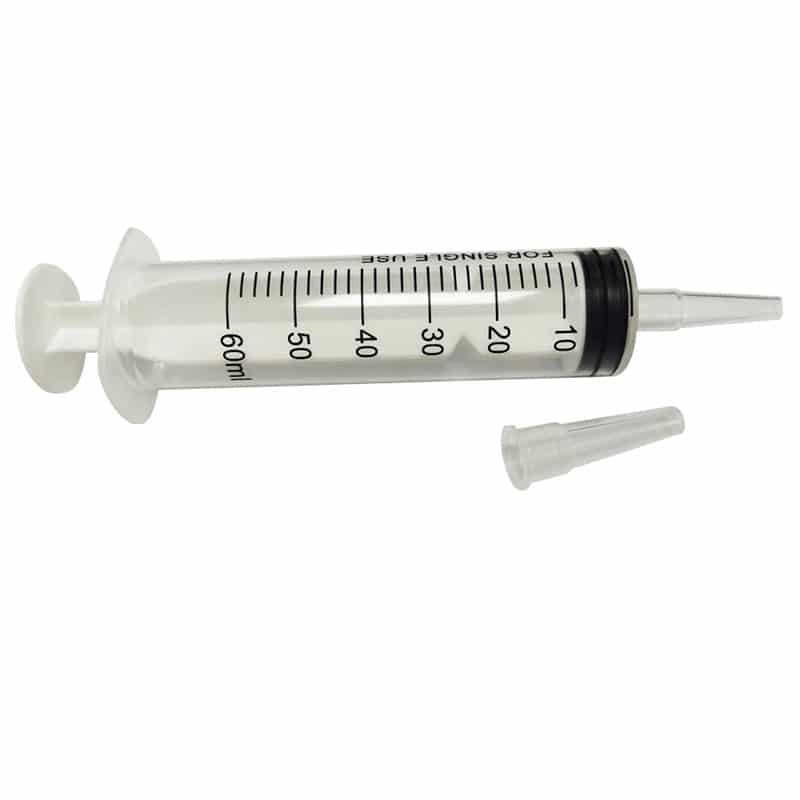

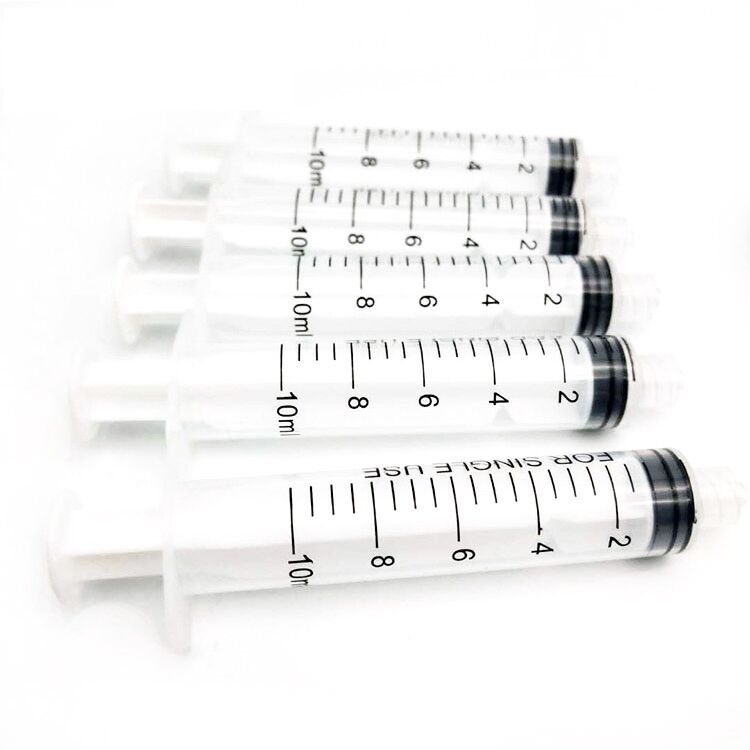

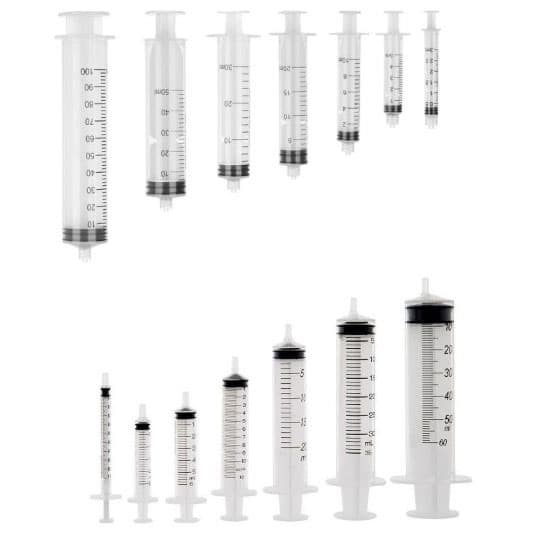

Dispensing syringes cover 1cc to 500cc capacities, with Luer-lock and non-Luer outlet options for different flow-control needs. Choose the outlet and capacity based on required dosing control, material viscosity, and dispensing tip compatibility.

Color Capacity(CC) Head Style ID(mm) OD(mm) Length(mm)
Clear 1 Luer/ Non Luer 4.7 6.4 97.5
Clear 3 Luer/ Non Luer 9 10.4 86
Clear 5 Luer/ Non Luer 12.5 13.6 83.6
Clear 10 Luer/ Non Luer 15 16.5 84.9
Clear 20 Luer/ Non Luer 19.2 20.9 122.1
Clear 30 Luer/ Non Luer 22.6 23.7 136.2
Clear 50 Luer/ Non Luer 29.25 31.3 145
Clear 100 Luer/ Non Luer 32.1 35.3 189
Clear 150 Luer/ Non Luer 40.2 42.7 209
Clear 200 Luer/ Non Luer 44 47 215
Clear 250 Non Luer 45 48 246
Clear 300 Non Luer 51 56 220
Clear 500 Non Luer 60 63 265

How to Choose Dispensing Syringe

  • Piston Type: For high-viscosity fluids, rubber pistons provide the necessary sealing force. For applications involving silicone-free fluids or high-purity optical components, plastic dispensing syringes are preferred.
  • Outlet Type: If you require more recise flow control, please choose a luer-lock dispensing syringe. If you prefer lower resistance, a tapered syringe is the better choice.
  • Production Cycle: Match capacity to refill frequency to minimize downtime and fatigue. Please select the syringe based on your application.

Customization Options for Dispensing Syringe

When standard syringe sizes or outlet formats do not match your fluid behavior or manual process, Btektech—as a professional manufacturer of dispensing components—offers customized services to ensure a perfect match between the syringe and your fluid medium, viscosity properties, and brand image requirements.

OEM Format

OEM Format

produce syringes to approved drawings, dimensions, and outlet connection requirements.

ODM Structure

ODM Structure

modify barrel geometry or develop new syringe formats for specific fluid behavior or dosing tasks.

Outlet & Piston Options

Outlet & Piston Options

adjust Luer-lock presence, tapered outlet design, and piston material based on flow and sealing requirements.

Private Label Options

Private Label Options

customize color, logo, and packaging when channel identification or brand differentiation is required.

Excellent Performance in Industrial Applications

Industrial dispensing syringes provide precise, contamination-resistant fluid application across electronics, jewelry assembly, and maintenance, with tailored capacities and all-plastic designs delivering controlled, efficient results.

Technician using a Btektech dispensing syringe to and adhesives on a printed circuit board during electronic assembly

Electronics & Semiconductors

Industrial dispensing syringes are used in PCB flux application, underfill, and encapsulation processes requiring high precision. All-plastic pistons help reduce contamination risks, while small-capacity barrels improve control and limit air entrapment. These features support stable output, protect sensitive components, and contribute to consistent performance in electronics manufacturing and semiconductor packaging.

Send Inquiry Now
Small-capacity dispensing syringe used to apply adhesive on a ring for gem setting in fine jewelry assembly

Craft, Jewelry & Precision Assembly

Dispensing syringes enable accurate adhesive placement for tasks such as jewelry setting and instrument assembly. Transparent barrels allow real-time fluid monitoring, while small to mid-capacity options offer better flow control. This helps reduce overflow, supports cleaner finishes, and suits applications that require detail-oriented and controlled bonding.

Send Inquiry Now
Technician applying adhesive to a chair leg using a Btektech dispensing syringe for furniture assembly or repair

Maintenance, Repair & DIY

Dispensing syringes are suitable for sealant application, lubrication, and general bonding tasks. Large-capacity barrels handle high-viscosity materials, while interchangeable tips add flexibility. This supports cleaner application, helps reduce material waste, and improves control, making them practical for maintenance work, repairs, and various DIY uses.

Send Inquiry Now

Related Product

Product

Single Component Cartridge

Check Now →
Product

Dual Cartridge

Check Now →

Frequently Asked Questions About Dispensing Syringe

Which piston works better for low-viscosity adhesive in a dispensing syringe?

−

A dispensing syringe with a rubber piston is suitable for low-viscosity adhesives. It maintains consistent seal pressure, prevents blow-by, and provides smooth flow. Avoid rigid pistons, as they allow fluid to bypass under pressure. Always match piston design to material viscosity per manufacturer recommendations.

Can I use a luer-lock dispensing syringe for high-viscosity materials?

+

How do I choose syringe capacity for adhesive without frequent refilling?

+

Can a dispensing syringe be used for long-term storage of industrial adhesive?

+

Why does flow become unstable in a manual dispensing syringe?

+
