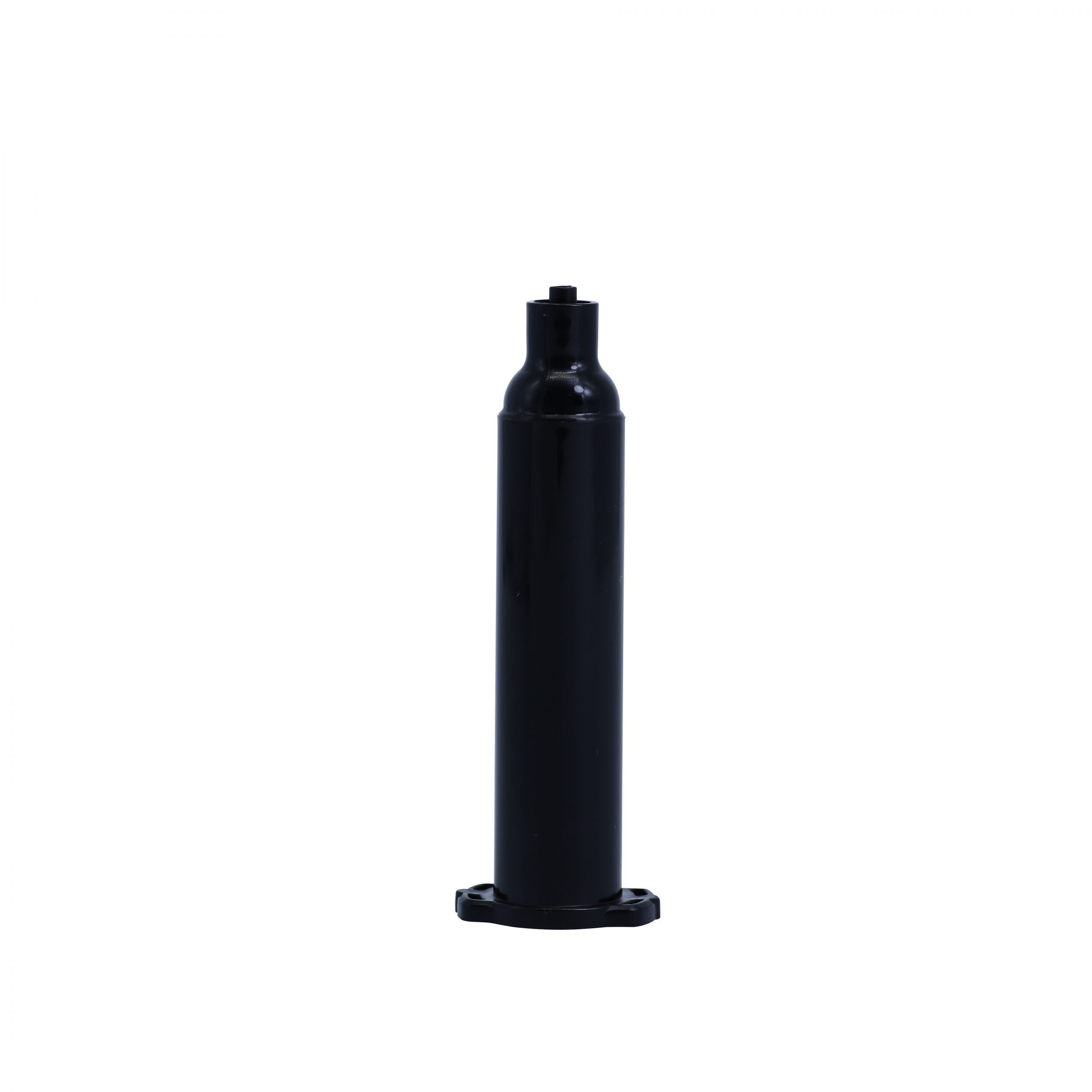

Single Component Cartridge

Single Component Cartridge

When you need to package and dispense 1K sealants or adhesives in a controlled format, a single component cartridge gives you a sealed reservoir, piston-driven output, and standard outlet connection. This structure exists for manual, pneumatic, and automated dispensing tasks where open filling causes waste, contamination, or unstable bead control.

Get a Quick Quote
Single Component Cartridge 1
thumb
thumb
thumb
thumb

Key Advantages of Single Component Cartridge

Btektech single component cartridge helps you control storage, connection format, and piston-driven output in 1K dispensing work.
  • Material Options for Different Chemistries: High-grade PP and HDPE reduce material degradation or cartridge swelling.
  • UV & Photo-Sensitive Protection: UV-blocking amber and opaque black options help shield light-sensitive resins and UV-curable adhesives from premature polymerization.
  • Standard Outlet Interfaces: Thread standards such as M15 or 1/4″ NPT make it easier to match cartridges with common caps, nozzles, or dispensing setups.
  • Optimized Internal Geometry: Precision-molded internal walls and tightly controlled diameters provide clean wiping and smooth piston movement.
Request For Our Latest Price →

Available Single Component Cartridge Configurations

Single component cartridges are available in capacities ranging from 3cc to 500cc and 2.5oz to 32oz with significant variations in inner diameter, outer diameter, and length. Material options include clear or amber plastic, paper, rubber, and PE, ensuring compatibility with various compounds. Select based on your desired volume, dispensing precision, and material compatibility for optimal performance.

NO. Capacity ID

(mm)

 OD

(mm)

 Length

(mm)

 Color
ASC01 3 CC 9.5 11.5 74.4 Clear/Amber
ASC02 5 CC 12.6 14.4 70 Clear/Amber
ASC03 10 CC 15.6 18.5 91 Clear/Amber
ASC04 30 CC 22.5 25.5 118.5 Clear/Amber
ASC05 55 CC 22.5 25.5 174.5 Clear/Amber
ASC06 100 CC 31 37 191.5 Clear/Amber
ASC07 200 CC 40 45.4 230 Clear/Amber
ASC08 300 CC 50 55 200 Clear/Amber
JSC01 5 CC 13 15.4 77 Clear/Green/Black/orange
JSC02 10 CC 15.1 17.5 106 Clear/Green/Black/orange
JSC03 30 CC 22.8 25.5 130 Clear/Green/Black/orange
JSC04 55 CC 22.8 25.5 162 Clear/Green/Black/orange
JSC05 70 CC 22.80 25.5 223 Clear/Green/Black/orange
BC01 2.5 OZ 40 43.26 100 Clear/Amber /Black
BC02 6 OZ 40.65 43.26 181.5 Clear/Amber /Black
BC03 12 OZ 40.65 43.26 314.3 Clear/Amber /Black
BC04 32 OZ 65 68.3 346.4 Clear/Amber /Black
BC05 20 OZ 65 68 250 Clear/Amber /Black

How to Choose Single Component Cartridge

  • Material: When visual monitoring of material levels is required, clear plastic cartridges are typically used. For light-sensitive adhesives that need UV protection, amber or black plastic cartridges are preferred.
  • End Caps & Piston: When secure sealing during storage is required, you need a 1K cartridge with a front cap to reduce contamination. To achieve consistent dispensing under pressure, you need a cartridge with a rear piston that maintains tight contact with the inner body.
  • Standard Compatibility: Japan Style cartridges follow metric dimensions, while American Style cartridges use imperial-based sizing, so verifying the correct standard before selection helps reduce performance issues.

Customization Options for Single Component Cartridge

When standard 1K cartridge sizes or outlet formats do not match your material behavior or dispensing setup, structural customization becomes necessary. You may need to adjust barrel length, thread type, piston fit, or closure design to control storage stability, fill volume, or output consistency.

OEM Build

OEM Build

Produce cartridges to approved drawings, dimensions, and thread requirements.

ODM Layout

ODM Layout

Modify body geometry or develop new cartridge formats for specific filling or dispensing conditions.

Custom Options

Custom Options

Adjust cap type, piston material, or sealing design based on storage and application needs.

Private Label Options

Private Label Options

Personalize your product with engraved logos, custom colors, and tailored packaging to strengthen market presence.

Excellent Performance in Industrial Applications

Btektech single component cartridges are designed for the safe and controlled delivery of 1K materials across diverse industrial workflows—from precision electronic assembly to architectural window installation, our cartridges of various capacities and materials can help you work more efficiently.

Single-Component-Cartridge-Used-in-Construction-Applicatio

Construction & Infrastructure Applications

Cartridges are widely used for dispensing silicones, MS polymers, and PU sealants in sealing, glazing, and waterproofing tasks. HDPE options provide the wall rigidity needed for joint sealants in bridges and roadways, while different sizes support both large-scale construction and routine maintenance under typical site conditions.

Send Inquiry Now
Adhesiv Cartridge Used in Automotive

Automotive & Industrial Manufacturing Uses

These cartridges support pneumatic dispensing in body seam sealing, glass bonding, and heavy equipment assembly. Their design accommodates high-viscosity adhesives such as windshield sealants, epoxies, and acrylics, helping maintain stable flow and material consistency while minimizing air inclusion during standard production processes.

Send Inquiry Now
Single-Component-Cartridge-Used-in-Electronics-Applications

Electronics & Precision Assembly Solutions

Cartridges are used for encapsulation, thermal management, and micro-bonding in electronics manufacturing. Light-blocking options help handle photo-sensitive materials, while smaller capacities enable precise application of thermal pastes, conductive adhesives, and underfill materials in controlled assembly environments.

Send Inquiry Now

Related Product

Product

Manual Syringe Gun

Check Now →
Product

Single Component Caulking Gun

Check Now →
Product

Dual Cartridge

Check Now →

Frequently Asked Questions About Single Component Cartridge

What materials can be filled in a single component cartridge?

−

A single component cartridge is commonly used for 1K silicones, PU sealants, MS polymers, acrylics, and other adhesives that remain stable in a sealed piston-driven package. Material compatibility still depends on the specific chemistry, storage time, and dispensing condition, so you should verify compatibility before full production use.

How do I choose between PP and HDPE for a 1K cartridge?

+

Will a single component cartridge fit manual, pneumatic, and automated dispensing systems?

+

When should I use amber or black cartridge bodies?

+
