British type hose clamps have a special and robust hoop seat system. British hose clamps high torque with smooth inner steel band British hose clamp inner surface rolled clamp can effectively protect the hose from abrasion.
$0.01 – $0.05

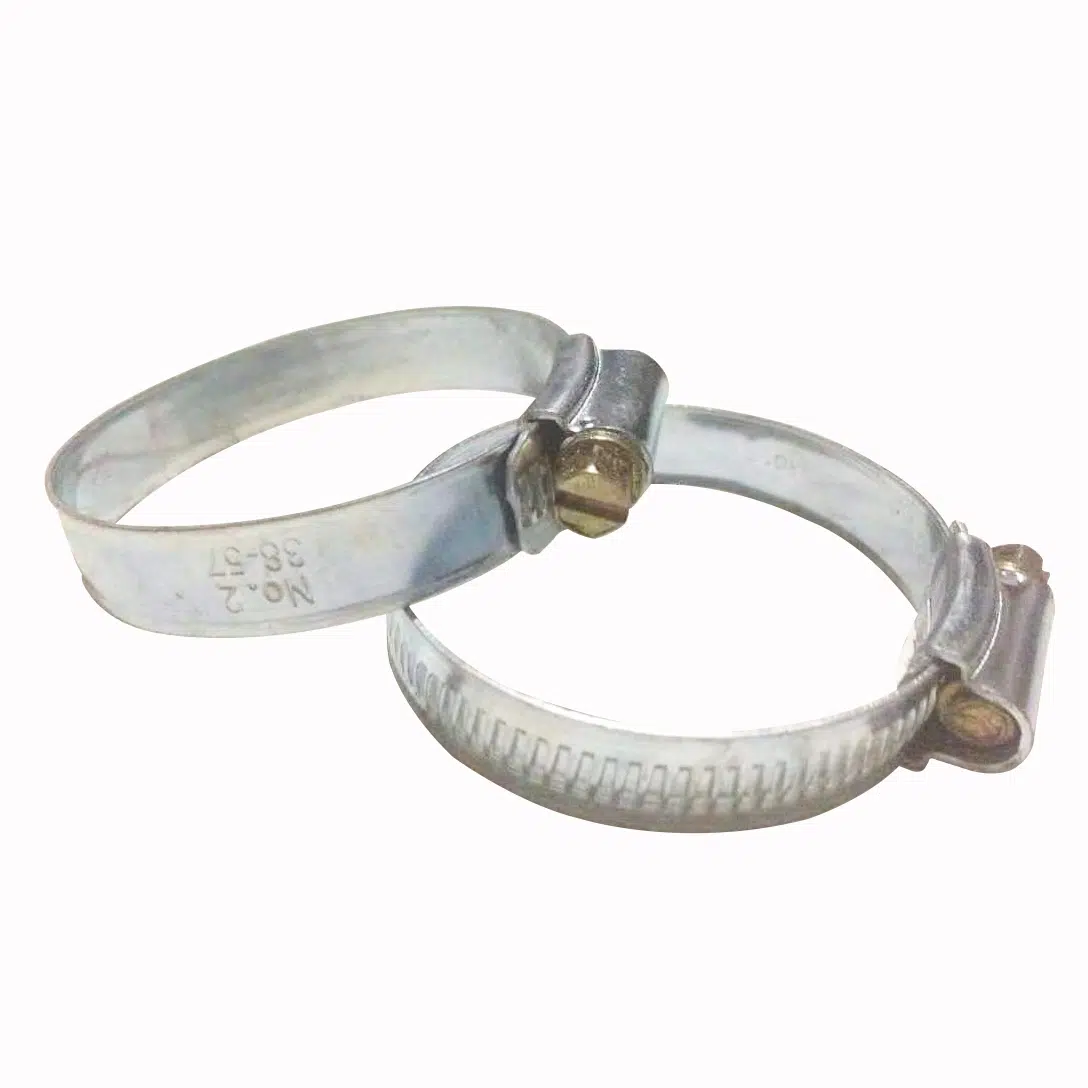

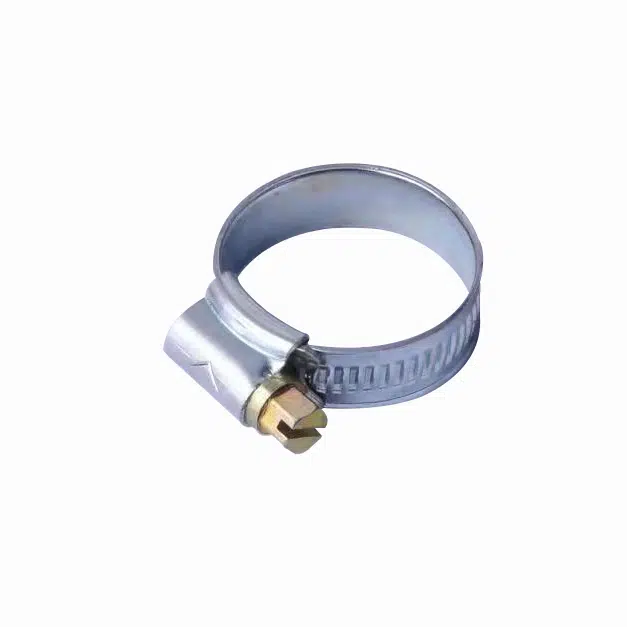

British type hose clamp is available in carbon steel and stainless steel and different sizes (as shown in the picture below). With high clamping force and high breaking torque, Imperial hose clamps are the safest and most reliable clamps. It is widely used in various equipment oil, water, and gas pipelines in the automobile, shipbuilding, and machinery industries. It is the ideal accessory for all kinds of hose connections and fastening.
| Bandwidth（mm） | Range(mm) | Range(inch) | Thickness(mm) | Break torque(Nm) |
|---|---|---|---|---|
| 9.7 | 9-13 | 3/8-1/2″ | 1 | 5Nm |
| 9.7 | 13-16 | 1/2-0.629″ | 1 | 5Nm |
| 9.7 | 13-19 | 1/2-3/4″ | 1 | 5Nm |
| 11.7 | 16-22 | 0.629-7/8″ | 1 | 5Nm |
| 11.7 | 19-25 | 3/4-1″ | 1 | 5Nm |
| 11.7 | 22-29 | 7/8-1 1/4″ | 1 | 7Nm |
| 11.7 | 25-38 | 1-1 3/8″ | 1 | 7Nm |
| 11.7 | 28-41 | 7/8″-1.6″ | 1 | 7Nm |
| 11.7 | 31-48 | 1 1/4-1.89″ | 1 | 7Nm |
| 11.7 | 38-54 | 1 1/2-2 1/16″ | 1 | 7Nm |
| 11.7 | 44-60 | 1.737-2.36″ | 1 | 7Nm |
| 11.7 | 50-70 | 2-2 3/4″ | 1 | 7Nm |
| 11.7 | 60-80 | 1.737-3 3/8″ | 1 | 7Nm |
| 11.7 | 70-90 | 2 3/4-3 1/2″ | 1 | 7Nm |
| 11.7 | 83-102 | 1.737-4″ | 1 | 7Nm |
| 11.7 | 95-115 | 3.7-4.52″ | 1 | 7Nm |
| 11.7 | 104-127 | 4-5″ | 1 | 7Nm |
| 11.7 | 127-146 | 5-6″ | 1 | 7Nm |
