Matching the adapter head, hose, and controller-side fitting to your equipment helps maintain a sealed air path from the controller to the barrel.
Sealed Air Transfer: A fully engaged adapter head, hose, and controller-side fitting help reduce pressure loss caused by incomplete or mismatched connections.
Capacity-Matched Configuration: Select the adapter by the listed barrel capacity and rear-interface geometry; do not assume configurations are interchangeable across capacities.
Configurable Hose and Adapter Head: Standard assemblies use a 1-meter hose and green adapter head; hose length and head color can be specified for OEM projects.
Rear-Interface Options: Available configurations match different barrel rear-flange shapes, locking features, sealing diameters, and adapter-head engagement structures.
Equipment Integration: Confirm hose routing, adapter-head retention, and pressure response through sample testing before automated integration.

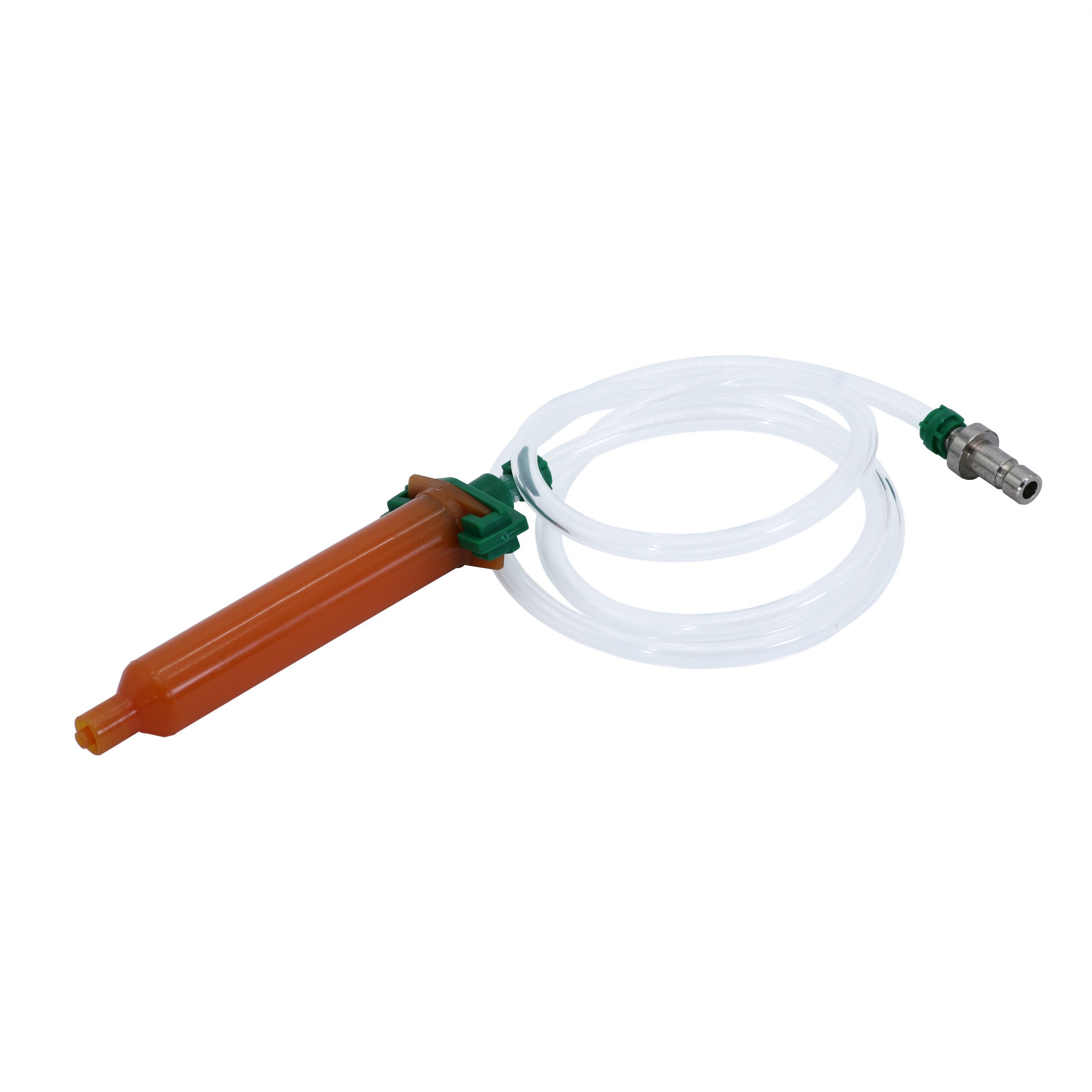

Syringe barrel adapter assemblies are available for 3cc, 5cc, 10cc, 30cc, and 55cc barrels. Each listed capacity is offered in two rear-interface configurations for different rear-flange, locking, and sealing geometries. Each assembly connects a compatible barrel to a time-pressure controller through an adapter head, 6 mm O.D. hose, and controller-side quick-connect fitting. Standard units use a 1-meter hose and green adapter head; confirm the required rear-interface configuration from the barrel dimensions, drawing, or physical sample when ordering.
| Part No. | Barrel Capacity | Hose O.D. | Standard Hose Length | Adapter Head Color |
| SA03 | 3 cc | 6 mm nominal | 1 m | Green |
| SA05 | 5 cc | 6 mm nominal | 1 m | Green |
| SA10 | 10 cc | 6 mm nominal | 1 m | Green |
| SA30 | 30 cc | 6 mm nominal | 1 m | Green |
| SA55 | 55 cc | 6 mm nominal | 1 m | Green |
The standard configuration uses a 1-meter hose and green adapter head. Btektech can adjust hose length, adapter-head color, controller-side fitting, and rear-interface geometry for OEM or equipment-specific requirements.
Send the controller outlet and barrel rear-interface dimensions; Btektech configures the hose length, fitting type, and adapter head to the approved specifications.
Provide a barrel and controller combination without a standard match; Btektech develops the adapter-head and fitting geometry based on your requirements.
Adjust hose length, hose specification, controller-side fitting type, and adapter-head geometry for the required barrel interface.
Specify adapter-head color, part marking, labeling, and packaging for OEM identification or distributor-specific requirements.
Syringe barrel adapters support pneumatic dispensing when a time-pressure controller supplies compressed air directly to a dispensing barrel. The following applications show where barrel capacity, rear-interface geometry, hose routing, and connection retention require project-specific verification.
Electronics and precision assembly processes use syringe barrels for localized adhesive or conformal-coating application on housings, sensors, and small components. A correctly matched adapter head, hose, and controller-side fitting help reduce air loss caused by incomplete connections. For bench-top dispensing, confirm barrel fit, hose routing, and pressure response before production use. Automated integration requires separate equipment-level sample testing.
Medical device assembly may use small syringe barrels for localized adhesive bonding or potting. The adapter transfers controller air to the barrel but does not meter the dispensed material. Confirm barrel capacity and rear-interface geometry before assembly, then validate connection retention and pressure response through sample testing before production use.
Automotive and general industrial assembly may use 30cc or 55cc syringe barrels for localized adhesive, sealant, or potting applications. A correctly matched adapter head and hose help reduce air leakage between the controller and barrel in bench-top or fixture-mounted setups. Verify hose routing, connection retention, and pressure response through sample testing before continuous or motion-based operation.
A syringe barrel adapter usually leaks when the hose, controller-side fitting, adapter head, or barrel mating surface does not engage completely. Damage, debris, or cured material at a sealing surface can also allow air loss. Reseat each connection, inspect the hose and mating surfaces, and verify that the intended pressure matches the approved hose, fitting, seal, and adapter-head configuration before restarting dispensing.
