High-Precision, Durable, and Contamination-Free Dispensing for Industrial Automation

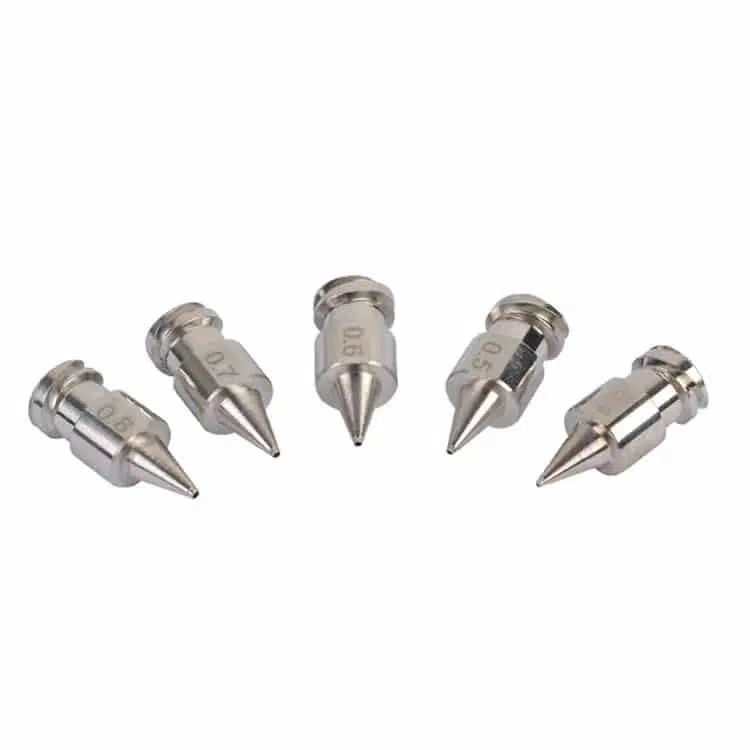

Btektech Stainless Steel Precision Nozzles offer polished, burr-free metal tips and tapered internal paths for superior flow control and durability. Available in integrated or split styles for high-accuracy industrial dispensing systems.
· Tapered Nozzle Design for Superior Flow Control:
The precision-engineered tapered structure reduces flow resistance, stabilizes fluid velocity, and ensures precise material placement — suitable for both low-viscosity coatings and highly viscous adhesives in automated micro-dispensing.
· High-Precision Manufacturing:
Manufactured using advanced CNC technology, each nozzle features seamless forming and mirror-polished inner walls to prevent clogging and maintain excellent flow consistency. Capable of handling granular and viscous fluids, it ensures repeatable micro-precision performance across diverse industrial applications.
· Customizable & Reusable for Cost Efficiency:

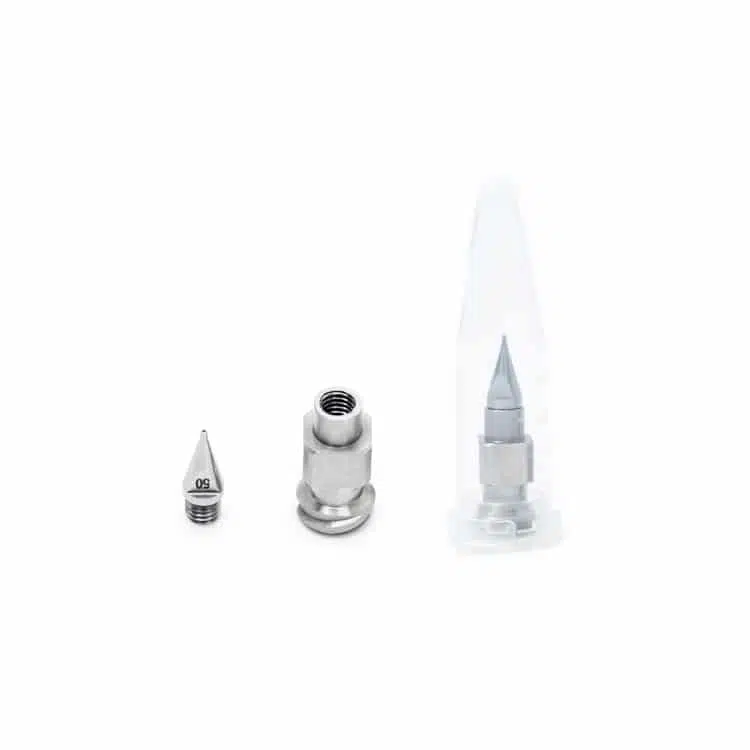

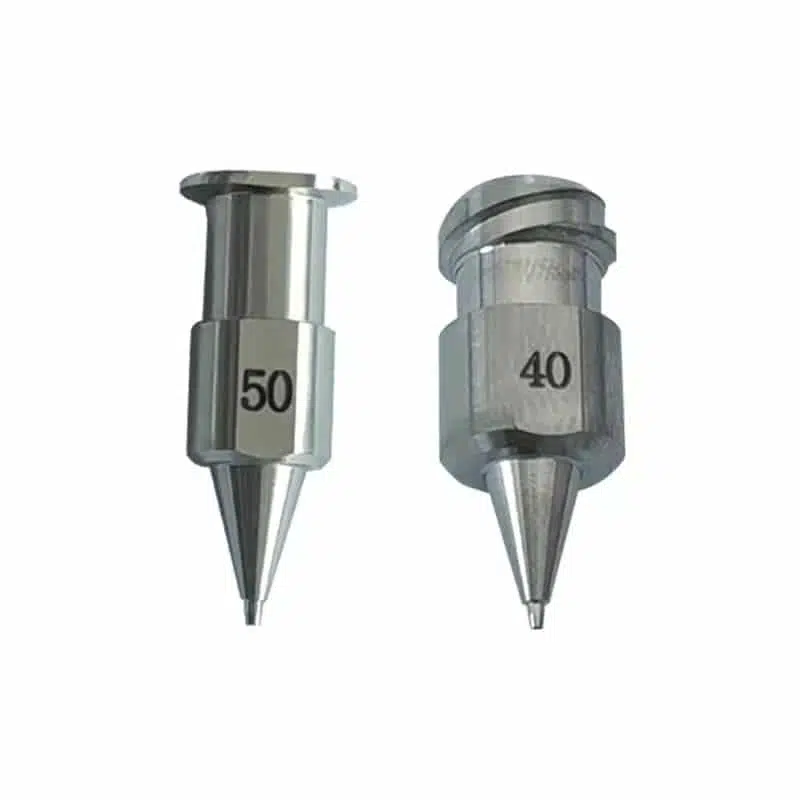

Available in integrated and split-style configurations with multiple gauges and lengths. The split design features a threaded connection between hub and nozzle tip for rapid interchange, reducing consumable cost, minimizing downtime, and improving equipment utilization.

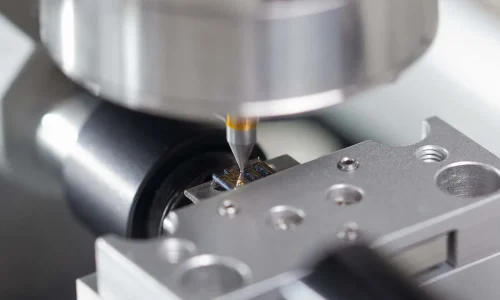

Ideal for the precise application of UV adhesives, potting compounds, and optical bonding agents. The tapered nozzle geometry allows fine-line placement while preventing overflow and contamination on delicate lenses and chip components—supporting high yield rates and optical performance.

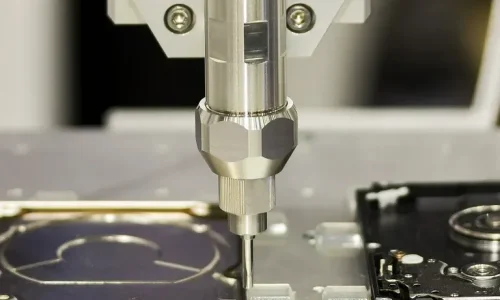

Ensures controlled micro-dispensing of epoxies, solder pastes, and conductive adhesives for critical processes such as BGA packaging and chip encapsulation. The nozzles support void-free underfill and accurate material alignment to protect interconnects and enhance structural reliability and thermal efficiency.

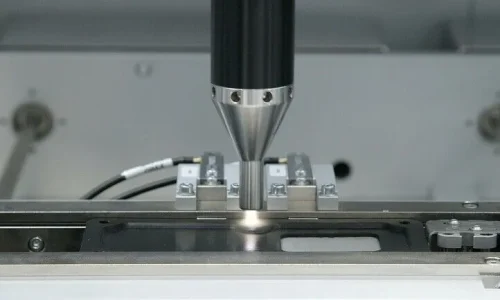

Perfect for edge sealing, resin filling, and micro-bead coating in automated lines. They deliver consistently even fluid distribution to form durable protective layers on components like LCD panels and crystal resonators — reducing downtime and improving production stability.
Explore the complete range of Btektech Stainless Steel Precision Nozzle in the table below. Each model’s part number links to its detailed specifications and pricing sheet. For a comprehensive overview of all our dispensing consumables, please contact us or download the product catalog.
| Bayonet | Double thread | ID.(mm) | OD.(mm) |
| SPN01 | STPN01 | 0.1 | 0.2 |
| SPN02 | STPN02 | 0.15 | 0.25 |
| SPN03 | STPN03 | 0.2 | 0.3 |
| SPN04 | STPN04 | 0.25 | 0.35 |
| SPN05 | STPN05 | 0.3 | 0.4 |
| SPN06 | STPN06 | 0.35 | 0.45 |
| SPN07 | STPN07 | 0.4 | 0.5 |
| SPN08 | STPN08 | 0.45 | 0.55 |
| SPN09 | STPN09 | 0.5 | 0.6 |
| SPN10 | STPN10 | 0.6 | 0.7 |
| SPN11 | STPN11 | 0.7 | 0.8 |
| SPN12 | STPN12 | 0.8 | 0.9 |
| SPN13 | STPN13 | 0.9 | 1 |
| SPN14 | STPN14 | 1 | 1.1 |
| SPN15 | STPN15 | 1.1 | 1.2 |
| SPN16 | STPN16 | 1.2 | 1.3 |
| SPN17 | STPN17 | 1.3 | 1.4 |
| SPN18 | STPN18 | 1.4 | 1.5 |
| Bayonet | Double thread | ID.(mm) | OD.(mm) |
| APN01 | ATPN01 | 0.1 | 0.2 |
| APN02 | ATPN02 | 0.15 | 0.25 |
| APN03 | ATPN03 | 0.2 | 0.3 |
| APN04 | ATPN04 | 0.25 | 0.35 |
| APN05 | ATPN05 | 0.3 | 0.4 |
| APN06 | ATPN06 | 0.35 | 0.45 |
| APN07 | ATPN07 | 0.4 | 0.5 |
| APN08 | ATPN08 | 0.45 | 0.55 |
| APN09 | ATPN09 | 0.5 | 0.6 |
| APN10 | ATPN10 | 0.6 | 0.7 |
| APN11 | ATPN11 | 0.7 | 0.8 |
| APN12 | ATPN12 | 0.8 | 0.9 |
| APN13 | ATPN13 | 0.9 | 1 |
| APN14 | ATPN14 | 1 | 1.1 |
| APN15 | ATPN15 | 1.1 | 1.2 |
| APN16 | ATPN16 | 1.2 | 1.3 |
| APN17 | ATPN17 | 1.3 | 1.4 |
| APN18 | ATPN18 | 1.4 | 1.5 |

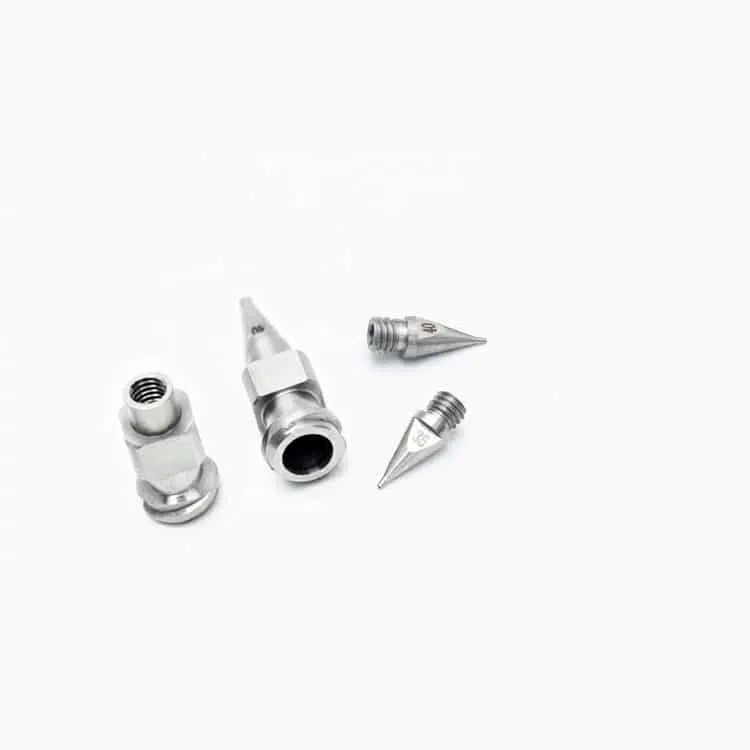

Split type of precision nozzle
| Bayonet | Double thread | ID.(mm) | OD.(mm) |
| SPN01 | STPN01 | 0.1 | 0.2 |
| SPN02 | STPN02 | 0.15 | 0.25 |
| SPN03 | STPN03 | 0.2 | 0.3 |
| SPN04 | STPN04 | 0.25 | 0.35 |
| SPN05 | STPN05 | 0.3 | 0.4 |
| SPN06 | STPN06 | 0.35 | 0.45 |
| SPN07 | STPN07 | 0.4 | 0.5 |
| SPN08 | STPN08 | 0.45 | 0.55 |
| SPN09 | STPN09 | 0.5 | 0.6 |
| SPN10 | STPN10 | 0.6 | 0.7 |
| SPN11 | STPN11 | 0.7 | 0.8 |
| SPN12 | STPN12 | 0.8 | 0.9 |
| SPN13 | STPN13 | 0.9 | 1 |
| SPN14 | STPN14 | 1 | 1.1 |
| SPN15 | STPN15 | 1.1 | 1.2 |
| SPN16 | STPN16 | 1.2 | 1.3 |
| SPN17 | STPN17 | 1.3 | 1.4 |
| SPN18 | STPN18 | 1.4 | 1.5 |

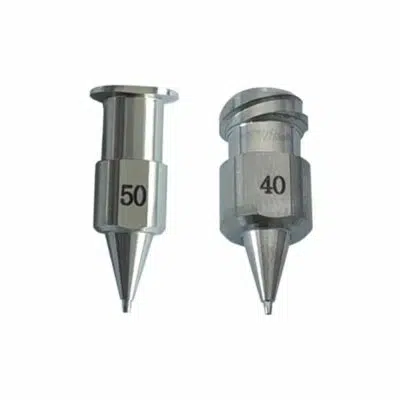

Integrated-type of of precision nozzle
| Bayonet | Double thread | ID.(mm) | OD.(mm) |
| APN01 | ATPN01 | 0.1 | 0.2 |
| APN02 | ATPN02 | 0.15 | 0.25 |
| APN03 | ATPN03 | 0.2 | 0.3 |
| APN04 | ATPN04 | 0.25 | 0.35 |
| APN05 | ATPN05 | 0.3 | 0.4 |
| APN06 | ATPN06 | 0.35 | 0.45 |
| APN07 | ATPN07 | 0.4 | 0.5 |
| APN08 | ATPN08 | 0.45 | 0.55 |
| APN09 | ATPN09 | 0.5 | 0.6 |
| APN10 | ATPN10 | 0.6 | 0.7 |
| APN11 | ATPN11 | 0.7 | 0.8 |
| APN12 | ATPN12 | 0.8 | 0.9 |
| APN13 | ATPN13 | 0.9 | 1 |
| APN14 | ATPN14 | 1 | 1.1 |
| APN15 | ATPN15 | 1.1 | 1.2 |
| APN16 | ATPN16 | 1.2 | 1.3 |
| APN17 | ATPN17 | 1.3 | 1.4 |
| APN18 | ATPN18 | 1.4 | 1.5 |
| Stainless Steel Dispensing Tips | PTFE Tips | ||
|
Best For |
High-precision, automated micro-dispensing |
Robust, high-flow industrial dispensing |
Chemically resistant precision flow |
|
Core Construction |
CNC-machined stainless-steel tapered nozzle | Full stainless-steel with nickel-plated hub |

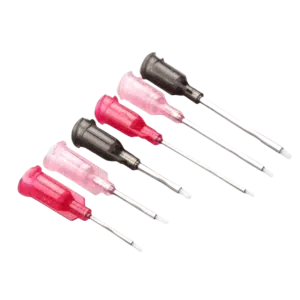

Stainless-steel with PTFE liner |
|
Key Advantage |
Seamless tapered design for consistent micro-flow | High mechanical strength and burr-free path |
Prevents curing and clogging of reactive fluids |
| Common Applications | Semiconductor, LED, optical module assembly | Automotive, SMT production, adhesives | Electronics, chemical processing, bonding lines |
| Stainless Steel Dispensing Tips | PTFE Tips | ||
|
Best For |
High-precision, automated micro-dispensing |
Robust, high-flow industrial dispensing |
Chemically resistant precision flow |
|
Core Construction |
CNC-machined stainless-steel tapered nozzle | Full stainless-steel with nickel-plated hub |
Stainless-steel with PTFE liner |
|
Key Advantage |
Seamless tapered design for consistent micro-flow | High mechanical strength and burr-free path |
Prevents curing and clogging of reactive fluids |
| Common Applications | Semiconductor, LED, optical module assembly | Automotive, SMT production, adhesives | Electronics, chemical processing, bonding lines |
At Btektech, we engineer custom solutions for all products related to adhesives and fluid dispensing.
Our Customization Options Include:
· Physical Attributes: Size, material, and color.
· Branding: Custom packaging and logo application.
· Functional Design: Modifications based on your requirements.
To get started, simply share your basic drawings, functional specifications, or intended usage scenarios. Our engineering team will assess feasibility and collaborate with you to develop a high-performance, reliable solution.
Partner with Btektech for Precision
From initial design to final delivery, we ensure your custom solution achieves unmatched consistency. If you have a customization need, contact us today to discuss your project.
