How This Dual Cartridge Gun Fits Your Application
The table below compares the standard dual cartridge gun range by drive type, cartridge volume, mix ratio, material compatibility, and typical application. Use it as a quick screening guide before confirming the exact cartridge format, plunger ratio, nozzle interface, and adhesive viscosity with the sales team.
| Parameter |
Manual Small-Volume |
Manual Large-Volume |
Battery-Powered |
Pneumatic |
| Drive type |
Manual trigger |
Manual trigger |
Battery motor |
Compressed air |
| Cartridge format |
Side-by-side dual cartridge |
Dual cartridge / coaxial cartridge |
Side-by-side dual cartridge |
Side-by-side dual cartridge |
| Cartridge volume |
50 ml / 75 ml |
200–600 ml |
200 ml / 400 ml / 585 ml |
400 ml / 490 ml / 600 ml / 1500 ml |
| Available mix ratios |
1:1, 2:1, 4:1, 10:1 |
1:1, 2:1, 3:1, 4:1, 5:1, 10:1 |
1:1, 3:1 |
1:1, 10:1 |
| Typical materials |
2K epoxy, acrylic adhesive, AB glue |
2K epoxy, PU adhesive, structural adhesive |
2K epoxy, sealant, medium-viscosity adhesive |
High-viscosity 2K sealant, PU, filled epoxy |
| Typical applications |
Repair, field use, prototyping |
Assembly, bonding, maintenance |
Production, field installation |
Continuous production, high-thrust |
Match the Gun to the Cartridge Before Comparing Drive Options

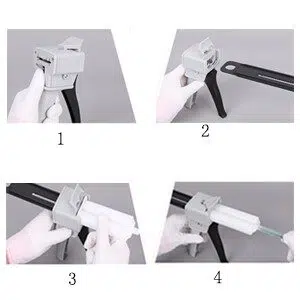

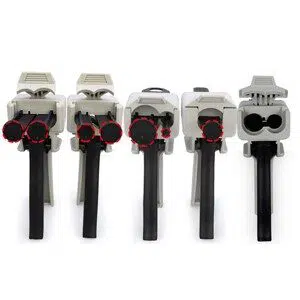

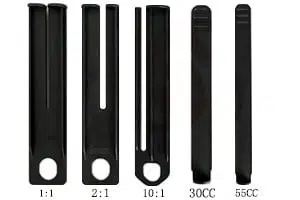

A double barrel epoxy gun should match the cartridge layout and the manufacturer-specified A:B ratio. Verify whether the cartridge is side-by-side or coaxial, whether both plungers align with the cartridge pistons, and whether the mixer inlet matches the cartridge outlet. For two-part epoxy, also confirm material viscosity and the required production cycle before selecting the drive system.
What to Send When Requesting a Dual Cartridge Gun Quote
Please include the cartridge brand or drawing, total fill volume, A:B mix ratio, side-by-side or coaxial format, adhesive type, and preferred manual, pneumatic or battery operation. If available, include the mixer connection and expected usage frequency. The sales team can then confirm an appropriate model rather than assuming cartridges of the same volume are interchangeable.
