Accurate, Efficient, and Controlled Dispensing for Hard-to-Reach Areas

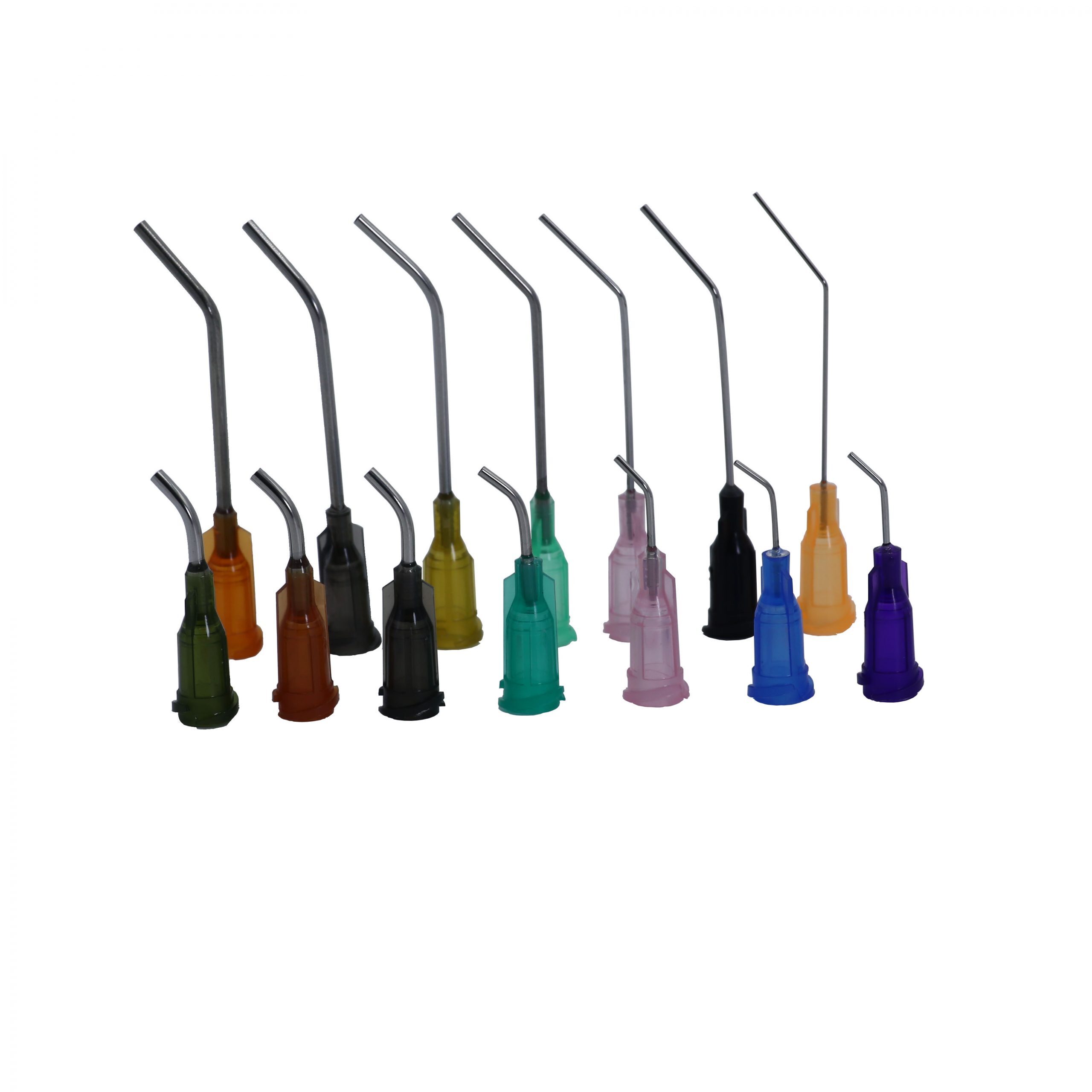

Btektech Angled Syringe Dispensing Tips are engineered for precise dispensing in tight or obstructed areas. Constructed with a stainless steel tip and polypropylene (PP) hub, they are available in 45° and 90° configurations.
Fixed 45° and 90° bend designs offer effortless access to recessed components, reducing assembly delays and unnecessary part repositioning in production lines.
Enhanced fluid control minimizes overspill, smearing, and cross-contamination between adjacent parts—reducing material usage, defects, and rework time.
The hybrid design combines a polypropylene (PP) or metal hub with a smooth, clog-resistant stainless-steel needle. This ensures leak-free dispensing of adhesives, epoxies, UV glue, and other materials across various industrial environments.
Ideal for electronics manufacturing and SMT assembly, these Angled Syringe Tips ensure precise dispensing of epoxies, fluxes, and adhesives on PCBs and micro-components. The angled design enables easy access to densely populated circuit areas, providing greater control, cleaner results, and reduced rework.
Perfect for automotive assembly processes such as sealing, bonding, and lubrication in confined engine or chassis areas. The durable polypropylene (PP) and stainless-steel construction resists oils, greases, and production heat, ensuring consistent performance and long service life.
In aerospace and other precision bonding applications, accuracy and reliability are critical. Angled Syringe Dispensing Tips deliver steady, controlled material flow for adhesives and coatings used in structural and safety-critical assemblies, ensuring both integrity and process consistency.
Explore the complete range of Btektech Angled Dispensing Tips in the table below. Each model’s part number links to its detailed specifications and pricing sheet. For a comprehensive overview of all our dispensing consumables, please contact us or download the product catalog.
| Gauge | Color | ID(mm) | OD(mm) | 12.7mm(45°) | 12.7mm(90°) | |
| 14 | Olive | 1.54(0.06″) | 1.83(0.072″) | 9018044 | 9018045 | |
| 15 | Amber | 1.36(0.053″) | 1.65(0.065″) | 9018069 | 9018070 | |
| 16 | Grey | 1.19(0.047″) | 1.64(0.06) | 9018076 | 9018077 | |

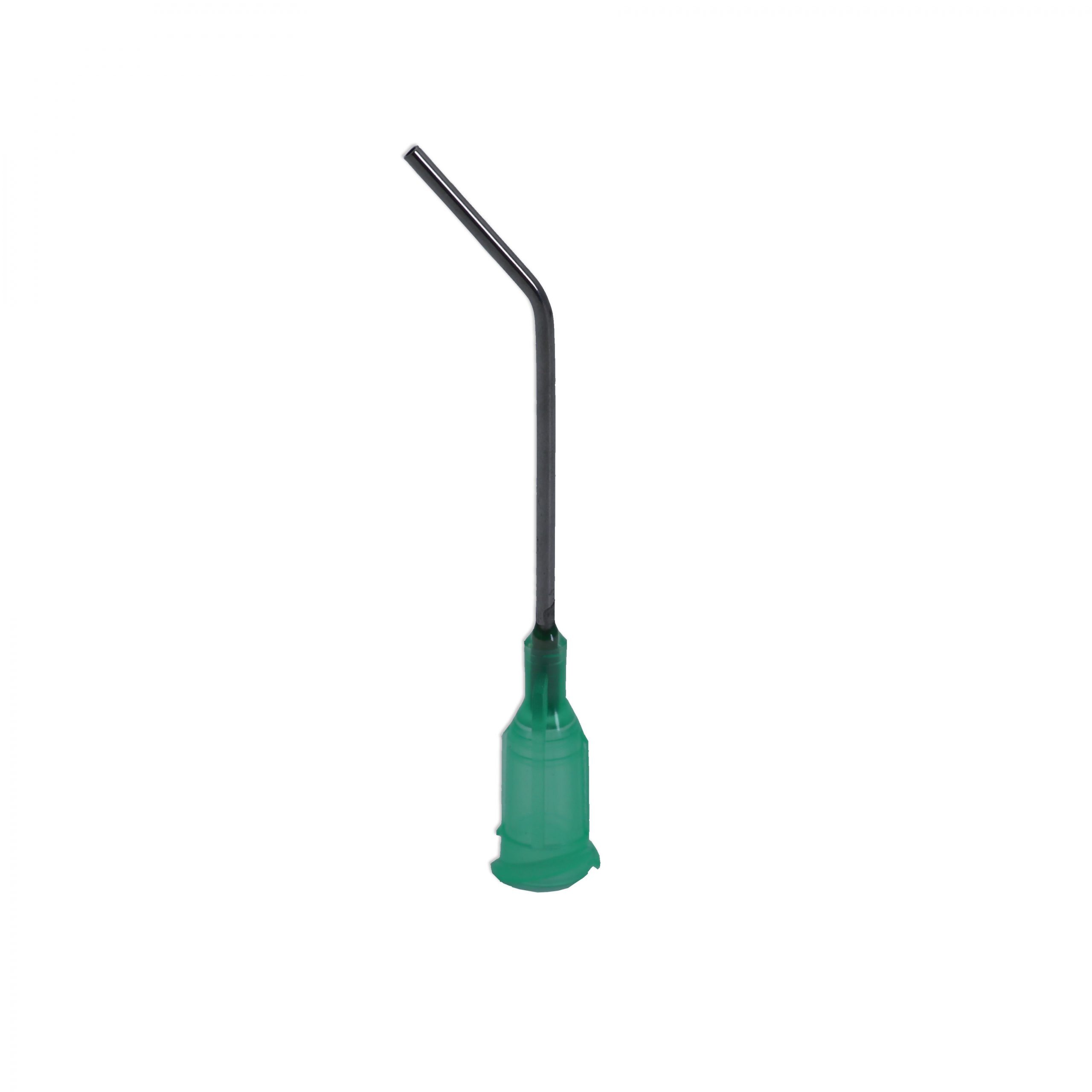

| 18 | Green | 0.84(0.033″) | 1.27(0.05″) | 9018123 | 9018124 | |
| 20 | Pink | 0.61(0.024″) | 0.91(0.036″) | 9018179 | 9018180 | |
| 21 | Purple | 0.51(0.02″) | 0.82(0.032″) | 9018234 | 9018235 | |
| 22 | Blue | 0.41(0.016″) | 0.72(0.028″) | 9018273 | 9018274 | |
| 23 | Orange | 0.33(0.013″) | 0.65(0.025″) | 9018315 | 9018316 | |

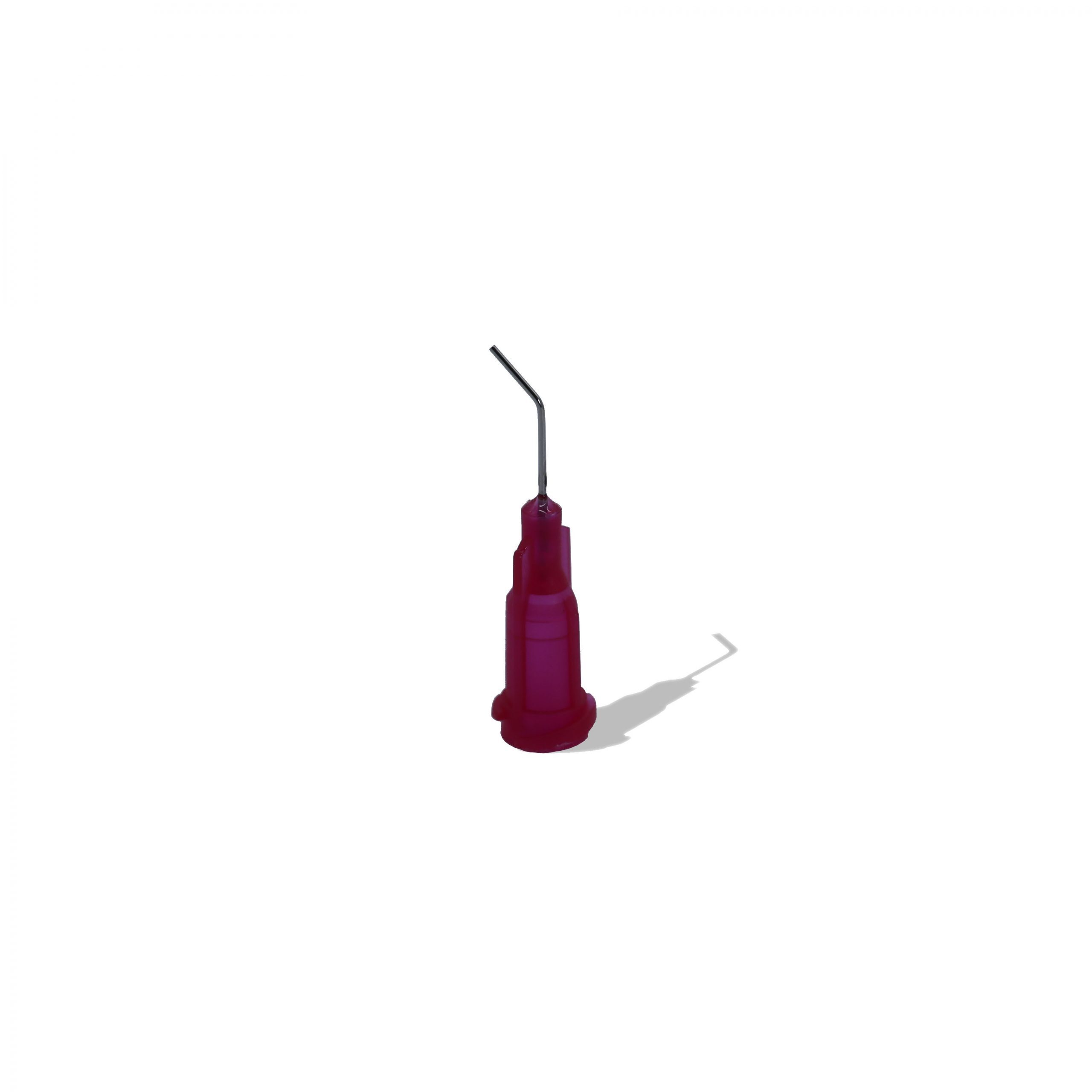

| 25 | Red | 0.25(0.01″) | 0.52(0.02″) | 9018346 | 9018347 | |
| 27 | Clear | 0.2(0.008″) | 0.42(0.016″) | 9018404 | 9018405 | |
| 30 | Lavender | 0.15(0.006″) | 0.31(0.012″) | 9018434 | 9018435 | |
| Gauge | Color | ID(mm) | OD(mm) | 12.7mm(45°) | 12.7mm(90°) | |
| 14 | Olive | 1.54(0.06″) | 1.83(0.072″) | 9018044 | 9018045 | |
| 15 | Amber | 1.36(0.053″) | 1.65(0.065″) | 9018069 | 9018070 | |
| 16 | Grey | 1.19(0.047″) | 1.64(0.06) | 9018076 | 9018077 | |
| 18 | Green | 0.84(0.033″) | 1.27(0.05″) | 9018123 | 9018124 | |
| 20 | Pink | 0.61(0.024″) | 0.91(0.036″) | 9018179 | 9018180 | |
| 21 | Purple | 0.51(0.02″) | 0.82(0.032″) | 9018234 | 9018235 | |
| 22 | Blue | 0.41(0.016″) | 0.72(0.028″) | 9018273 | 9018274 | |
| 23 | Orange | 0.33(0.013″) | 0.65(0.025″) | 9018315 | 9018316 | |
| 25 | Red | 0.25(0.01″) | 0.52(0.02″) | 9018346 | 9018347 | |
| 27 | Clear | 0.2(0.008″) | 0.42(0.016″) | 9018404 | 9018405 | |
| 30 | Lavender | 0.15(0.006″) | 0.31(0.012″) | 9018434 | 9018435 | |
| Angled Tips | Flexible Tips | Tapered Tips | |
| Best For | Reaching recessed components and hard-to-access assembly areas | Scratch-free dispensing on delicate or curved surfaces | High-viscosity materials in tight or angled locations |
| Core Construction | Stainless-steel needle with PP or metal hub (45°/90° bend) | Fully PP flexible or one-piece PP structure | High-grade polypropylene (straight or 35° bent) |
| Key Advantage | Provides angled precision and reduces part repositioning | Bendable and trim-to-fit for custom reach | Smooth, clog-resistant flow for thick materials |
| Common Applications | Electronics SMT, automotive bonding, industrial assembly | PCB assembly, medical devices, narrow grooves | Electronics bonding, LED sealing, thick fluid coating |
| Angled Tips | Flexible Tips | Tapered Tips | |
| Best For | Reaching recessed components and hard-to-access assembly areas | Scratch-free dispensing on delicate or curved surfaces | High-viscosity materials in tight or angled locations |
| Core Construction | Stainless-steel needle with PP or metal hub (45°/90° bend) | Fully PP flexible or one-piece PP structure | High-grade polypropylene (straight or 35° bent) |
| Key Advantage | Provides angled precision and reduces part repositioning | Bendable and trim-to-fit for custom reach | Smooth, clog-resistant flow for thick materials |
| Common Applications | Electronics SMT, automotive bonding, industrial assembly | PCB assembly, medical devices, narrow grooves | Electronics bonding, LED sealing, thick fluid coating |
At Btektech, we engineer custom solutions for all products related to adhesives and fluid dispensing.
Our Customization Options Include:
· Physical Attributes: Size, material, and color.
· Branding: Custom packaging and logo application.
· Functional Design: Modifications based on your requirements.
To get started, simply share your basic drawings, functional specifications, or intended usage scenarios. Our engineering team will assess feasibility and collaborate with you to develop a high-performance, reliable solution.
Partner with Btektech for Precision
From initial design to final delivery, we ensure your custom solution achieves unmatched consistency. If you have a customization need, contact us today to discuss your project.
