Static mixing nozzles are ingenious devices used across various industries for achieving homogeneous blends, uniform dispersions, and consistent reactions. However, one challenge that often arises during their operation is the presence of liquid residue. This can lead to uneven mixing, reduced product quality, and even clogging of the nozzle over time. In this blog, we’ll delve into the world of static mixing nozzles and explore effective strategies to minimize liquid residue for optimal performance.
Understanding Static Mixing Nozzles:

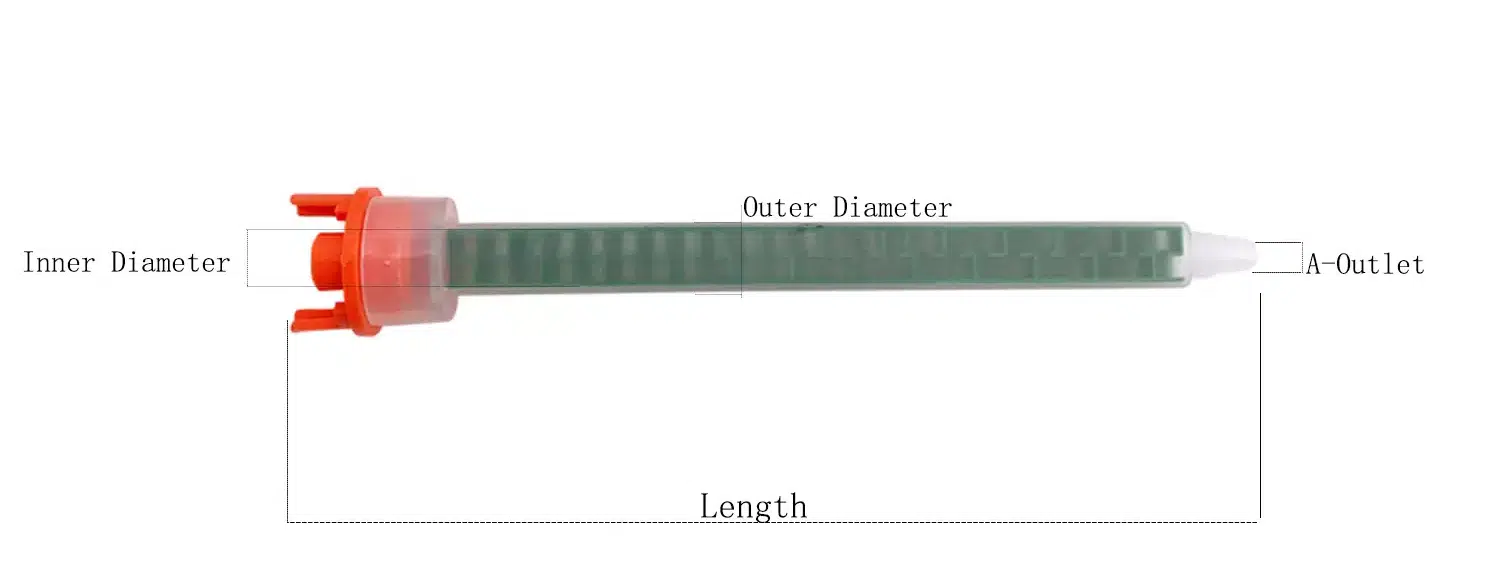

Static mixing nozzles are commonly used to blend or disperse liquids, gases, or powders in a variety of applications, ranging from chemical processing and pharmaceuticals to food and beverage production. They consist of a series of baffles, blades, or elements within a cylindrical chamber. As fluids pass through the nozzle, these elements cause turbulence and create a chaotic flow pattern that promotes thorough mixing.
Causes of Liquid Residue:
Liquid residue can occur due to several factors, including viscosity mismatches, inadequate flow rates, improper nozzle design, and inefficient mixing. It’s essential to identify the root causes of residue formation to address the issue effectively.
Strategies to Minimize Liquid Residue:
-
Proper Nozzle Selection:
Begin by selecting a static mixing nozzle that suits the specific viscosity and flow rate of the fluids being mixed. An appropriate nozzle ensures that the residence time within the mixer is sufficient for complete blending without causing excess residue.
-
Optimize Flow Rates:
Ensure that the flow rates of the components being mixed are balanced. Mismatches in flow rates can result in inadequate mixing and increased residue formation. Use flow meters to monitor and adjust the flow rates as needed.
-
Consider Fluid Properties:
Understand the viscosity, density, and chemical properties of the liquids being mixed. Viscous fluids may require nozzles with larger mixing elements to accommodate the flow, while less viscous fluids might require smaller elements for efficient blending.
-
Element Design and Configuration:
The design and configuration of the mixing elements play a crucial role in minimizing residue. Elements should be chosen based on the Reynolds number of the flow and the desired level of mixing. Experiment with different element arrangements to find the one that minimizes residue formation.
-
Prevent Air Entrapment:
Air entrapped in the fluid can lead to incomplete mixing and the creation of air pockets. Use proper priming techniques and ensure that the nozzle is positioned correctly to avoid air entrapment.
-
Maintain Proper Pressure:
Operating the nozzle at the recommended pressure helps in achieving the desired flow and turbulence for effective mixing. Deviating from the recommended pressure range might result in inadequate blending and residue formation.
-
Regular Maintenance:
Periodically inspect and clean the static mixing nozzle to remove any buildup or residue that may have accumulated over time. This preventive maintenance ensures consistent performance and minimizes the risk of clogging.
Conclusion:
Static mixing nozzles are invaluable tools for achieving uniform blends and dispersions, but liquid residue can hinder their performance. By selecting the right nozzle, optimizing flow rates, considering fluid properties, and maintaining proper pressure, you can master the art of minimizing liquid residue in static mixing nozzles. Understanding the intricacies of the mixing process and taking proactive steps to address residue formation will result in improved product quality and process efficiency across various industries.
