Quick answer: Most manual syringe gun problems come from either the replaceable material path or the reusable drive mechanism. Inspect the dispensing tip first and replace a disposable tip to rule out a restriction, then check the barrel and piston for residue, damage, or poor fit. If resistance or uneven movement remains with the barrel removed, inspect the drive rod, ratchet, and release button. Matching the symptom to the affected component is faster than replacing parts at random.
Know the Two Sides of a Manual Syringe Gun

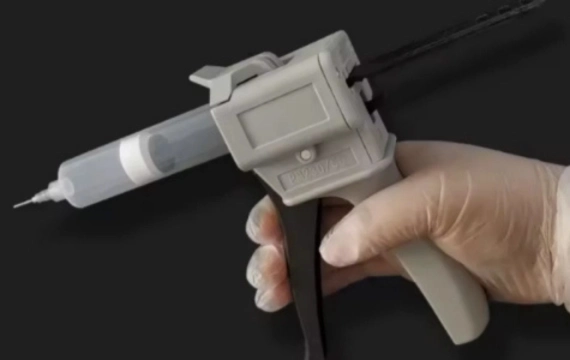

A manual syringe gun is really two systems working together, and knowing which one you’re dealing with saves a lot of guesswork.
| System Side | Main Components | Typical Problems |
| Gun body (reusable) | Trigger, ratchet mechanism, release button, drive rod | Sticking, skipping, uneven advancement |
| Material path (barrel side) | Barrel, piston (often nylon in Btektech manual syringe systems), dispensing tip | Clogging, leakage, delayed or inconsistent output |
Never force the drive rod back or forward without pressing the release button first; doing so against the ratchet teeth is a common way to damage the mechanism. Because the barrel, piston, and tip are the parts that contact the material, treat them as the replaceable side of the system. Under normal use, the gun body should mainly require external wiping and routine inspection rather than solvent cleaning or full disassembly.
In small-volume syringe dispensing, a slight change in trigger resistance or deposit size can indicate a tip, piston, barrel, or drive-mechanism problem before the tool fails completely. This guide focuses on the maintenance points found across Btektech’s manual syringe gun configurations for small-volume dispensing.
Before You Troubleshoot: Rule Out Material and Technique Changes
A manual syringe gun is operator-controlled, so before treating higher trigger force or a change in deposit size as a mechanical problem, confirm that the material, its temperature, the barrel size, the tip opening, and your dispensing technique haven’t changed. A colder or higher-viscosity material can noticeably increase resistance even when the gun and barrel are working exactly as they should.
Quick Diagnosis: Match the Symptom to the Problem
| Symptom | Check First | Likely Action |
| Trigger force increases gradually | Partial tip blockage | Replace the dispensing tip |
| Resistance changes at different points in the stroke | Bent drive rod, or damage inside the barrel | Inspect alignment; replace the damaged part |
| Material appears behind the piston | Piston fit, barrel wall condition, model-specific seal | Replace the damaged or mismatched material-path component |
| Output starts late or comes out in pulses | Trapped air from loading, or poor piston contact | Reload or replace the barrel according to the material, barrel, and process instructions. |
| Deposit size becomes inconsistent | Tip restriction, piston/seal wear, barrel wear | Isolate one component at a time |
| Rod skips or the release button sticks | Debris in the ratchet or drive mechanism | Clean externally; service if skipping continues |
Common Manual Syringe Gun Problems and Fixes
The Dispensing Tip Is Clogged
What you notice: Trigger force is higher than usual, output has slowed, or nothing comes out at all.
Check first: Look at the tip opening for visible cured material, and confirm how long it’s been since the last dispense.
What to do: In most cases, replacing the tip is the more reliable move over trying to clear it, small-bore tips are inexpensive relative to the risk of altering the opening. Some setups do run reusable precision tips rather than disposable ones; if yours does, only clear it with a method the tip manufacturer specifically approves, and stop if you feel any resistance that suggests you’re reshaping the opening rather than clearing it.
Replace when: Material has visibly cured inside the tip, or flow resistance and deposit shape have changed from what you’d normally expect.
The Gun Is Hard to Push
What you notice: Trigger force is higher than usual, either consistently or at specific points in the stroke.
Check first:
- Confirm material, temperature, barrel size, and tip opening haven’t changed (see the section above).
- Replace the dispensing tip to rule out a partial blockage.
- Inspect the barrel wall and piston for residue, swelling, or damage.
- Remove the barrel and check whether the drive rod advances smoothly on its own.
What to do: If resistance clears once the barrel is removed, the issue is on the material-path side. Residue buildup or a worn piston are the most common causes. If resistance persists with the barrel removed, check the gun’s own ratchet housing for debris or a sticking release button, and inspect the drive rod for a bend. Resistance that changes at different points in the stroke is a stronger sign of a bent rod than of uniform friction or buildup.
Replace when: The barrel or piston is scored, swollen, cracked, or clearly worn. Service or replace the gun if the drive rod still binds or skips with the barrel removed entirely.
Material Is Leaking Behind the Piston
What you notice: Material appearing where it shouldn’t, behind the piston rather than out the tip, or a sudden drop in how much force it takes to dispense.
Check first: Inspect the piston for wear, swelling, or incorrect fit, and check the barrel wall for scoring or damage. On gun models that use a separate seal at the barrel interface, check that seal too, since the exact sealing arrangement varies by gun and barrel model.
What to do: Visually compare the piston and any sealing component with a new one. Look for flattening, cracking, or a slightly sticky or swollen texture. When replacing a piston or seal, match the size, material, and exact part number rather than assuming that a similar-looking component will fit. Even a slightly undersized component may fail to seal properly.
Replace when: Any visible wear, swelling, or cracking is present, or the barrel wall itself shows scoring that a new piston won’t seal against.
Deposit Size Becomes Inconsistent
What you notice: Some strokes dispense the expected amount, others come up short or run long, without you changing your technique.
Check first: Rule out operator-side variables first, same material temperature, same tip size, same trigger stroke, same technique, before attributing the change to a worn part. If those are all consistent, the pattern of inconsistency points to the cause:
- A partially clogged tip tends to reduce output gradually while increasing the force needed.
- A worn piston or seal tends to cause uneven inconsistency, some strokes normal, others short, because bypass around a worn or poorly fitted piston may vary from stroke to stroke.
- Air trapped in the barrel during loading shows up as delayed or uneven output early in a run.
What to do: Isolate one component at a time, starting with the tip since it’s the cheapest to rule out, rather than replacing multiple parts at once.
Replace when: The pattern points clearly to one component and inspection confirms visible wear or damage there.
The Drive Rod Skips or the Release Button Sticks
What you notice: The rod doesn’t advance smoothly with each trigger pull, or the release button feels stiff or unresponsive.
Check first: This is a gun-body issue, not a barrel or material problem. Look for debris or dried material inside the ratchet housing.
What to do: Clean the exterior and accessible parts of the mechanism according to the gun manufacturer’s instructions. Material reaching the ratchet or trigger mechanism generally indicates leakage past the piston or barrel interface rather than normal wear. Identify and correct that upstream leak before returning the gun to service.
Replace when: Skipping or sticking continues after cleaning, at that point the mechanism likely needs service or replacement rather than further cleaning.
How Barrel Size and Interface Affect Compatibility
Barrel capacity alone does not determine whether parts are interchangeable. Within Btektech’s product range, the 30cc/50cc manual syringe gun is designed to work with compatible 30cc and 50cc barrels from the specified series. This is a confirmed model-level compatibility and should not be treated as a general rule for all syringe guns or barrel systems.
Barrels with similar nominal capacities may still use different internal diameters, flange styles, piston designs, or drive lengths depending on the manufacturer and product series. When replacing a barrel, piston, or seal, confirm the barrel series, capacity, internal diameter, interface style, and compatible gun model rather than assuming that parts with the same cc rating will fit.
A Condition-Based Maintenance Schedule
Rather than a fixed weekly or monthly interval, which doesn’t account for how much a given setup is actually used or what material it’s running, a condition-based approach tends to hold up better:
- After every use or material change: inspect the tip, wipe down external residue before it cures, and confirm nothing has reached the barrel interface or the gun body itself.
- At the start of a shift or a new batch: confirm the drive rod travels smoothly, the barrel is seated correctly, and output is consistent during an approved test dispense before starting real work.
- At the first sign of higher force, delayed output, leakage, or drift in deposit size: stop and check the tip, piston, barrel, and drive mechanism before continuing, rather than working through it and hoping it resolves.
- For a validated production process: follow whatever maintenance interval and replacement criteria are specified in your process documentation rather than defaulting to a generic schedule.
When to Replace the Tip, Barrel, Piston, or Gun
| Part | Continue Using When | Replace When |
| Dispensing tip | Flow and deposit shape remain stable | Clogged, cracked, contaminated, or output shape changes |
| Barrel piston | Moves smoothly and seals consistently | Swollen, cracked, worn, or leaking |
| Barrel | Interior is smooth and undamaged | Scored, pitted, cracked, contaminated, or mismatched |
| Drive rod | Straight and moves smoothly | Bent, or resistance changes through the stroke |
| Ratchet mechanism | Advances consistently and releases correctly | Sticking, skipping, or advancing unevenly with no barrel installed |
Looking to Replace Parts or Upgrade the Gun?
If the problem follows the barrel or piston rather than the gun body, confirm the current setup uses compatible syringe barrel and piston components. If tip restriction or deposit-shape changes keep happening, it’s worth comparing disposable dispensing tips by opening size and material before changing the gun itself. And if the drive rod, ratchet, or barrel fit no longer performs consistently after service, take a look at our manual syringe gun options matched to barrel capacity and material viscosity.
FAQs About Manual Syringe Gun Maintenance
How do I handle a clogged manual syringe gun tip?
Replacing the tip is usually more reliable than trying to clear it, especially once material has visibly cured inside it or the deposit shape has changed. If you’re running a reusable precision tip rather than a disposable one, only clear it with a method the manufacturer specifically approves, and stop if you feel resistance that suggests you’re reshaping the opening.
Why is my syringe gun hard to push?
Remove the barrel first to isolate the cause. If resistance clears, check for residue buildup or a worn piston on the material-path side. If resistance remains with the barrel removed, check the gun’s ratchet mechanism and drive rod for debris or a bend.
How do I know if a piston or seal needs replacing?
Look for flattening, cracking, or a swollen, sticky texture compared to a new one. Functionally, watch for material leaking behind the piston, a sudden drop in dispensing resistance, or output that doesn’t match how far you’ve advanced the drive rod.
Why is my syringe gun dispensing inconsistent amounts?
First confirm that material temperature, tip size, trigger stroke, and dispensing technique haven’t changed, that alone accounts for a lot of apparent inconsistency. If those are stable, check for a partially blocked tip, piston or seal wear, or air trapped in the barrel during loading.
How often should I maintain a manual syringe gun?
Rather than a fixed schedule, check the tip and wipe down residue after every use, confirm smooth operation at the start of each shift or batch, and stop to inspect the full system at the first sign of higher force, delayed output, or drift in deposit size. If you’re running a validated process, follow the maintenance interval in your process documentation instead.
