Introduction
When dispensing two-component adhesive, simply pushing the resin and hardener into a common tube is not enough. Without active stirring, the two parts would remain largely separate, leading to incomplete curing and weak bonds.
Inside an epoxy mixing system, there are no moving parts. Instead, a series of mixing elements transform a simple flow path into a precision layering machine. As the two components travel through the nozzle, these elements continuously split, reorient, and recombine the fluid streams.
Understanding the working mechanism in general helps clarify why this design is so effective: passive structures can achieve active blending through geometric repetition. The result is a microscopically thin, alternating structure of A and B material, allowing diffusion and reaction to complete within seconds.
This blog helps you to learn what is a mixing element and how mixing elements work, explaining why length, diameter, and element count affect flow redistribution behavior differently. The broader relationship between cartridges, dispensing pressure, and flow organization is further explained in the 2-component dispensing system structure overview.
What Is a Mixing Element?
Mixing element a fixed geometric insert that repeatedly divides and reorients fluid without any moving shaft or motor. The mixing element is made up of a series of stationary baffles or, arranged in a specific pattern to create controlled redistribution of the resin system. Static mixing elements have no moving parts; all mixing action comes from geometry alone.
Mixing elements may be manufactured from plastic or metal depending on flow resistance, chemical exposure, and operating temperature conditions. Different material structures influence rigidity, pressure tolerance, and internal flow redistribution behavior.
What Does a mixing element do? Mixing element splits the combined inlet stream into multiple sub-streams, redirects each one along a different path, and recombines them in a new spatial arrangement. This interleaving action is repeated at every element stage, progressively reducing segregation between components.
How Mixing Elements Work
When components A and B enter a static mixing system, the internal element geometry forces the flow to divide into multiple sub-streams, redirect them along different paths, and then bring them back together downstream.
At each element stage, the incoming cross-section is partitioned into discrete regions. These regions are spatially rearranged as they pass through the element, and when they recombine at the exit, their relative positions have changed. As a result, material that was initially separated (for example, side-by-side A and B streams) becomes interleaved, with portions of A embedded within B and vice versa.
Crucially, this process is not dependent on a specific rotation angle or geometry type.
- In helical elements, the rearrangement is driven by continuous twisting and rotation.
- In cross-grid or square elements, the same effect is achieved through repeated orthogonal splitting and redirection across the cross-section.
Despite these structural differences, the underlying mechanics remains consistent: flow is continuously split, spatially redistributed, and recombined in a new configuration. This directly illustrates how mixing elements work at a fundamental level, through repeated geometric division and recombination.
With each successive element, the previously recombined streams are split again along a different plane or direction. This repeated reorganization progressively reduces segregation between components and increases interfacial contact. How helical, square, and cross-grid geometries each achieve this through different structural paths is described in the types of static mixing nozzle elements, connections, and outlet styles.

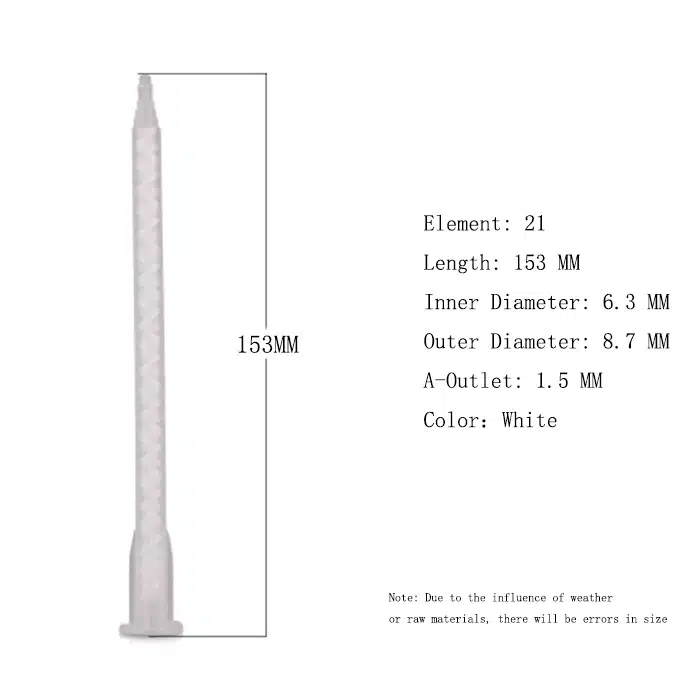

Number of Mixing Elements
How Many Mixing Elements Are Needed
The number of mixing elements in a series directly determines how many split-recombine cycles the fluid undergoes, which in turn controls layer count, pressure buildup, and redistribution patterns throughout the nozzle. Engineers often ask how many mixing elements are needed for a given flow condition; the answer depends on the material’s viscosity, the required mix uniformity, and the pressure capacity of the dispensing system.
Most industrial mixing systems contain between 7 and 48 mixing elements. Common counts include 10, 16, 18, 24, and 32 elements. Lower counts such as 10 are typically used for low-viscosity materials with good natural miscibility, where fewer split-recombine cycles are sufficient. Mid-range counts such as 16 and 18 cover the majority of standard flow redistribution applications. Higher counts such as 24 and 32 are used for high-viscosity or highly filled systems where more layering stages are needed to achieve uniform output.
The mixing elements number also interacts with individual element length. Together, these two parameters, count and length, determine the total length and the total pressure drop across the system.
Mixing Elements Changes Flow Behavior
The physical length of a mixing system is determined by two parameters: the number of mixing elements and the length of each individual element. These are not interchangeable.
- Element count impact on flow: Each element added to the series executes one additional layering cycle. The total layer count grows as 2ⁿ, where n is the number of elements. This exponential relationship means that even modest increases in element count produce large changes in layer structure and diffusion distance.
- Pressure buildup: Each element introduces a geometric flow interruption that consumes energy. As element count increases, total pressure drop accumulates across the series. The relationship between element count and pressure is not linear; early elements and later elements contribute differently, but the general direction is consistent: more elements means more resistance.
- Redistribution patterns: Different element geometries produce different radial redistribution patterns at each stage. Helical elements redistribute flow continuously along a rotational path. Square and cross-grid elements redistribute through orthogonal direction changes. The cumulative redistribution pattern across the full element series determines whether wall-side and center-side flow are adequately exchanged before the outlet.
Element count determines how many split-recombine cycles execute in series, which determines the final layer count. Individual element length is expressed as the L/D ratio (element length divided by internal diameter). This governs whether one complete split-recombine cycle can execute within the available geometry at a reasonable pressure cost.
- If L/D is too short, the fluid exits before completing the full helical path, and the layering action is geometrically incomplete.
- If L/D is too long, pressure drop increases while the marginal mixing gain per unit length diminishes.
The relationship between element count and mixing behavior can be summarized as:
- More elements → longer flow path → more split-recombine cycles → finer layer structure
- Beyond a certain point, additional elements yield diminishing improvements
- Excessive element count increases resistance without proportionally improving uniformity
Element count drives mixing progression; length supports the physical space required for that progression. How these parameters interact with cartridge format, including inlet geometry, barrel volume, and pressure tolerance, is documented in the cartridge compatibility conditions.
Dead Zones of Mixing Elements
Dead zones are low-velocity flow regions inside a mixing system where material moves significantly more slowly than the bulk stream, or stagnates entirely. They are a product of geometry and flow conditions rather than material properties alone.
- Low-velocity flow regions: Where the element geometry creates abrupt changes in cross-section or sharp internal corners, local flow velocity drops. Material in these regions does not advance at the same rate as the main stream, creating a velocity gradient that separates fast-moving and slow-moving portions.
- Incomplete redistribution: If element geometry does not redistribute wall-side flow toward the center consistently, material near the nozzle wall may accumulate residence time far in excess of the bulk average. This creates compositional gradients at the outlet even when the center-flow is well mixed.
- Geometry-related stagnation: At inlet transitions, outlet expansions, and element junctions, flow can separate from the wall and form recirculation pockets. Material trapped in these pockets is exposed to prolonged residence time, which in reactive adhesive systems can initiate partial curing inside the nozzle, contributing to blockage and output inconsistency.
Dead zones are a primary reason why mixing element design matters beyond simple layer count. A high element count in a geometry prone to stagnation may produce less consistent output than a lower element count in a geometry with continuous radial redistribution.
Conclusion
Epoxy flow redistribution systems rely on a simple but effective mechanism: stationary mixing elements continuously split, reorient, and recombine fluid streams. With each element, the number of material layers doubles, reducing diffusion distance and enabling rapid, complete curing.
Standard mixing element configurations used in industrial dispensing systems can be referenced here. Different systems may use specify element material (plastic mixing element or metal mixing element) and element count based on their material system, viscosity, and dispensing pressure requirements.
FAQs About Mixing Elements
Why Use Mixing Elements?
At typical dispensing viscosities, ranging from hundreds to hundreds of thousands of mPa·s, flow inside a tube is laminar. Under laminar conditions, there is no natural lateral exchange between the A and B streams. Mixing element design addresses this by introducing controlled geometric interruptions that force the two streams to divide, reposition, and recombine regardless of viscosity or flow rate. This makes the mixing action independent of dispensing speed and reliable across a wide range of materials, from low-viscosity epoxies to highly filled polyurethane systems.
Why does doubling the number of layers matter?
As the number of layers increases, each individual layer becomes thinner. This shortens the diffusion distance between adjacent A and B molecules, allowing the chemical reaction to complete much faster across the entire cross-section. This layer-thinning effect is the core of the mechanics for reactive adhesive systems.
What happens if there are too few mixing elements?
Insufficient elements leave A-rich and B-rich zones across the cross-section. The practical results are localized under-cure, visible streaking in the cured material, and significant variation in bond strength.
Do all mixing element geometries work the same way?
The underlying working mechanism is consistent across geometries: flow is continuously split, spatially redistributed, and recombined in a new configuration. Only the geometric method of achieving this differs. Helical elements use continuous rotation; square and cross-grid elements use orthogonal redirection. The mixing element geometry affects pressure drop, dead zone distribution, and radial redistribution efficiency, but not the fundamental split-and-recombine logic.
What is the most appropriate mixing element geometry for a given application?
There is no universally optimal mixing element geometry. The appropriate geometry depends on material viscosity, required layer count, acceptable pressure drop, and dispensing system capacity. Higher-viscosity materials and demanding mix ratios typically require higher element counts and geometries with strong radial redistribution. Lower-viscosity systems can achieve adequate results with fewer elements and lower pressure drop geometries.
