| No. | Nº de pieza | Elementos | D.I.(mm) | L(mm) | D.E.(mm) | A(mm) | Color del núcleo interno |
|---|---|---|---|---|---|---|---|
| A1 | PMC3.0-08S | 8 | 3 | 38 | 4.6 | 1 | blanco |
| A2 | PMA3.0-07S | 7 | 3 | 33.2 | 4.6 | 1 | blanco |
| A3 | PMA3.0-17S | 17 | 3 | 63 | 4.6 | 1 | blanco |
| A5 | PMA5.4-17S | 17 | 5.4 | 103 | 7.6 | 1.5 | blanco |
| A7 | PMA6.3-21S | 21 | 6.3 | 153 | 8.7 | 1.5 | blanco |
| A8 | PMA6.3-21L | 21 | 6.3 | 151.5 | 8.7 | 1.5 | blanco |
| A9 | PMA6.3-12S | 12 | 6.3 | 97 | 8.7 | 1.5 | blanco |
| A10 | PMA3.0-13S | 13 | 3 | 50.6 | 4.6 | 1 | blanco |
| A11 | PMA4.0-13S | 13 | 4 | 66 | 2.5 | 2 | blanco |
| A12 | PMA4.0-17S | 17 | 4 | 81.6 | 5.8 | 2 | blanco |
| A13 | PMA5.4-07S | 7 | 5.4 | 55.7 | 7 | 1.5 | blanco |
| A14 | PMA5.4-13S | 13 | 5.4 | 84.6 | 7 | 1.5 | blanco |
| A15 | PMA5.4-21S | 21 | 5.4 | 124 | 7.6 | 1.5 | blanco |
| A16 | PMA6.3-17S | 17 | 6.3 | 128 | 8.7 | 1.5 | blanco |
| A17 | PMA6.8-12L | 12 | 6.8 | 149 | 8.6 | 4.9 | blanco |
| A18 | PMA0517-0413 | 17+13 | 5.4-4.0 | 149 | 7.6-5.7 | 1.5 | blanco |
| A19 | PMX3.0-17S | 17 | 3 | 62.3 | 4.6 | 1 | rojo |
| A20 | PMX4.0-17S | 17 | 4 | 81.6 | 5.8 | 2 | rojo |
| A21 | PMX5.4-17S | 17 | 5.4 | 103.7 | 7.6 | 1.5 | rojo |
| A22 | PMX0517-0413 | 17+13 | 5.4-4.0 | 149 | 7.6-5.7 | 1.5 | rojo |
| A23 | PMA6.3-12S | 12 | 6.3 | 8.7 | 97 | 1.5 | blanco |

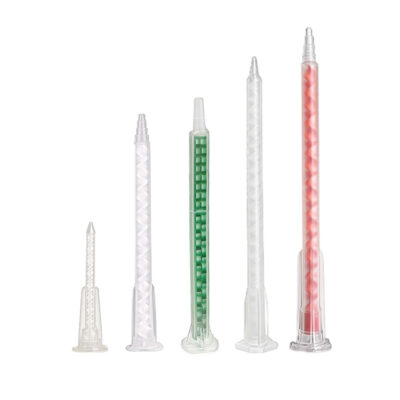

Mezcla estática PMA boquilla es adecuado para la mezcla de cola 1:1 y 2:1. Esta serie de Los tubos de mezcla pueden cortarse a través del cabezal escalonado del tubo de mezcla estático para aumentar el tamaño de la salida o adaptar la aguja para reducir la salida.
| No. | Nº de pieza | Elementos | D.I.(mm) | L(mm) | D.E.(mm) | A(mm) | Color del núcleo interno |
|---|---|---|---|---|---|---|---|
| A1 | PMC3.0-08S | 8 | 3 | 38 | 4.6 | 1 | blanco |
| A2 | PMA3.0-07S | 7 | 3 | 33.2 | 4.6 | 1 | blanco |
| A3 | PMA3.0-17S | 17 | 3 | 63 | 4.6 | 1 | blanco |
| A5 | PMA5.4-17S | 17 | 5.4 | 103 | 7.6 | 1.5 | blanco |
| A7 | PMA6.3-21S | 21 | 6.3 | 153 | 8.7 | 1.5 | blanco |
| A8 | PMA6.3-21L | 21 | 6.3 | 151.5 | 8.7 | 1.5 | blanco |
| A9 | PMA6.3-12S | 12 | 6.3 | 97 | 8.7 | 1.5 | blanco |
| A10 | PMA3.0-13S | 13 | 3 | 50.6 | 4.6 | 1 | blanco |
| A11 | PMA4.0-13S | 13 | 4 | 66 | 2.5 | 2 | blanco |
| A12 | PMA4.0-17S | 17 | 4 | 81.6 | 5.8 | 2 | blanco |
| A13 | PMA5.4-07S | 7 | 5.4 | 55.7 | 7 | 1.5 | blanco |
| A14 | PMA5.4-13S | 13 | 5.4 | 84.6 | 7 | 1.5 | blanco |
| A15 | PMA5.4-21S | 21 | 5.4 | 124 | 7.6 | 1.5 | blanco |
| A16 | PMA6.3-17S | 17 | 6.3 | 128 | 8.7 | 1.5 | blanco |
| A17 | PMA6.8-12L | 12 | 6.8 | 149 | 8.6 | 4.9 | blanco |
| A18 | PMA0517-0413 | 17+13 | 5.4-4.0 | 149 | 7.6-5.7 | 1.5 | blanco |
| A19 | PMX3.0-17S | 17 | 3 | 62.3 | 4.6 | 1 | rojo |
| A20 | PMX4.0-17S | 17 | 4 | 81.6 | 5.8 | 2 | rojo |
| A21 | PMX5.4-17S | 17 | 5.4 | 103.7 | 7.6 | 1.5 | rojo |
| A22 | PMX0517-0413 | 17+13 | 5.4-4.0 | 149 | 7.6-5.7 | 1.5 | rojo |
| A23 | PMA6.3-12S | 12 | 6.3 | 8.7 | 97 | 1.5 | blanco |
At Btektech, we engineer custom solutions for all products related to adhesives and fluid dispensing.
Our Customization Options Include:
· Physical Attributes: Size, material, and color.
· Branding: Custom packaging and logo application.
· Functional Design: Modifications based on your requirements.
To get started, simply share your basic drawings, functional specifications, or intended usage scenarios. Our engineering team will assess feasibility and collaborate with you to develop a high-performance, reliable solution.
Partner with Btektech for Precision
From initial design to final delivery, we ensure your custom solution achieves unmatched consistency. If you have a customization need, contact us today to discuss your project.
