Sıvı akışını etkilemeden 45 derece veya 90 derece bükülebilir.
$0.13

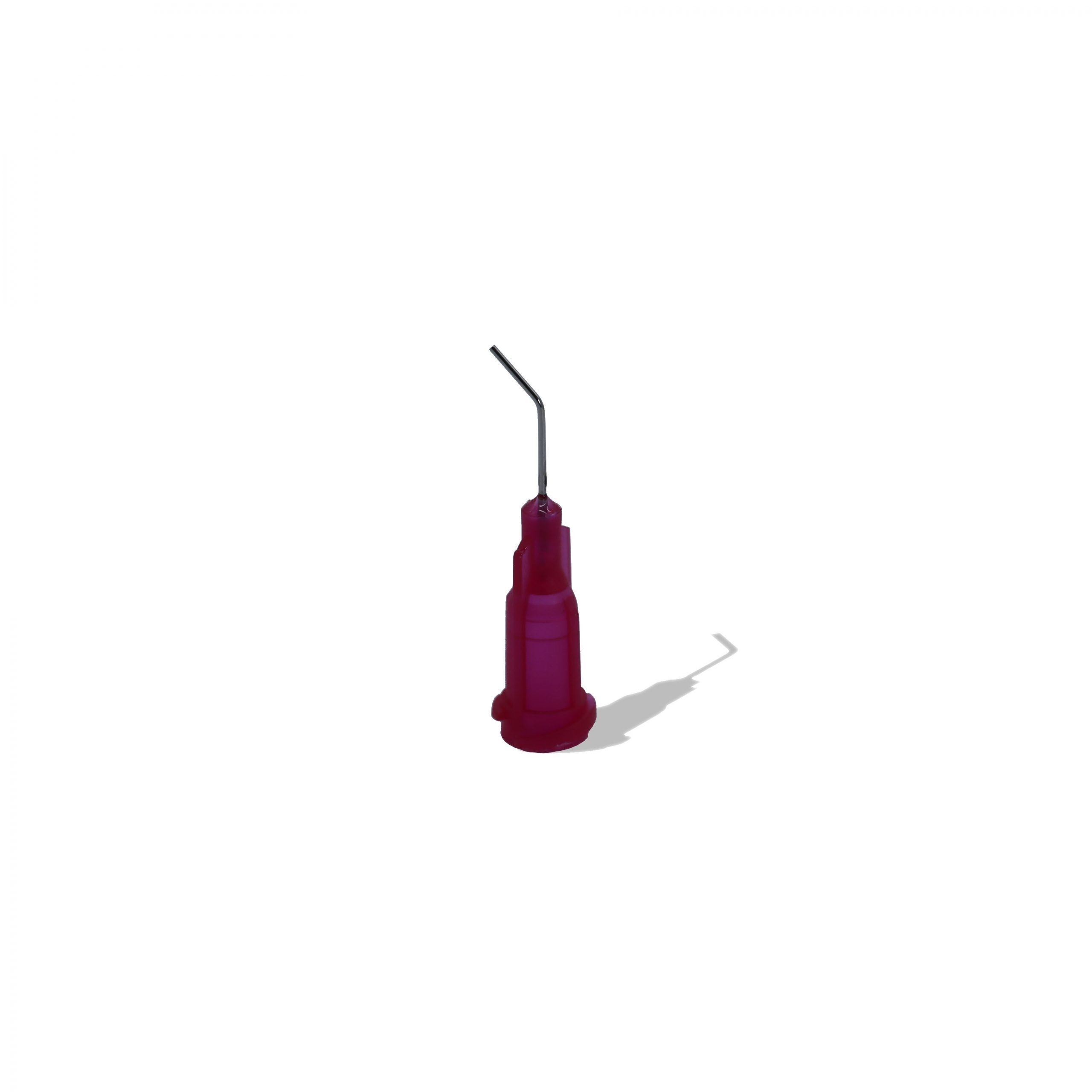

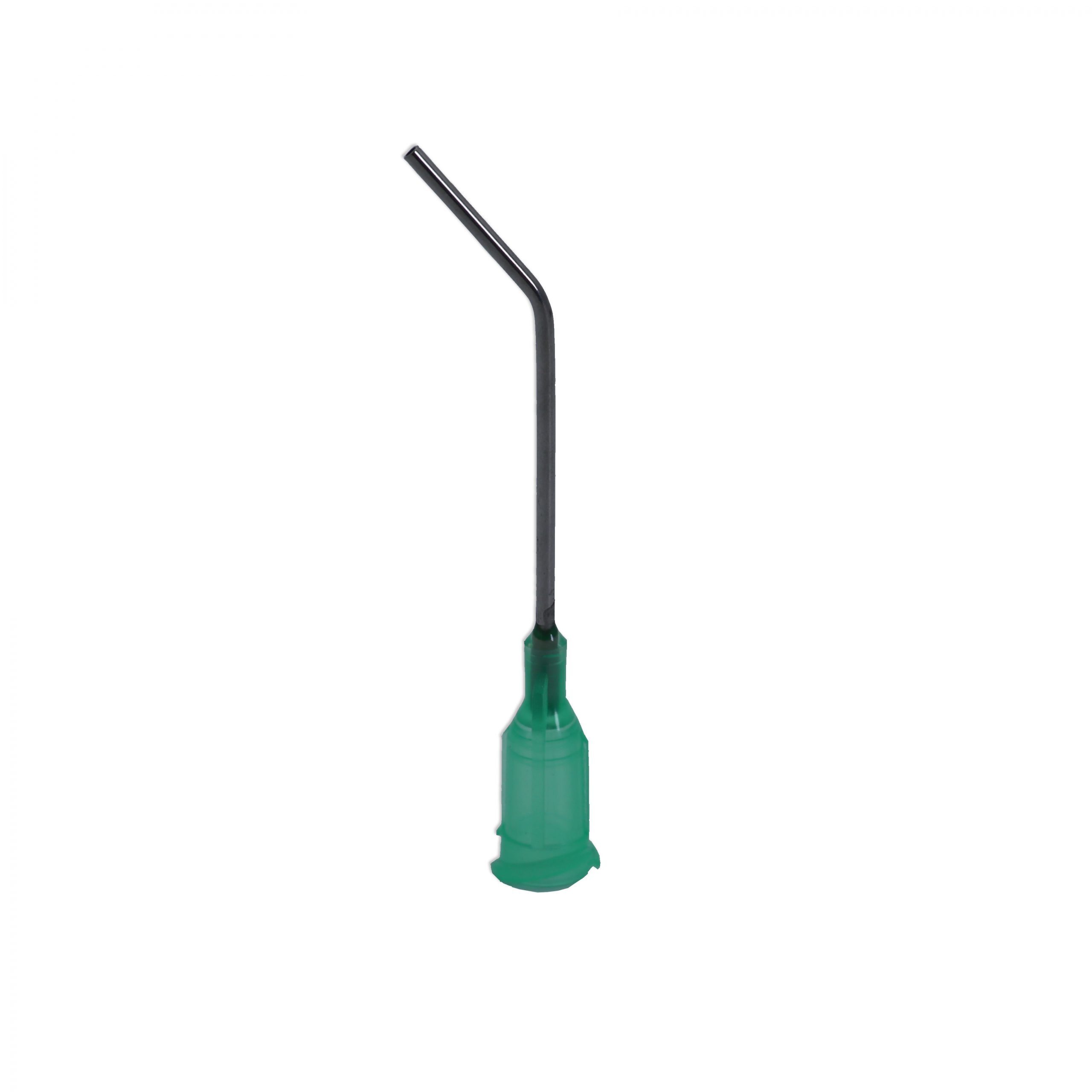

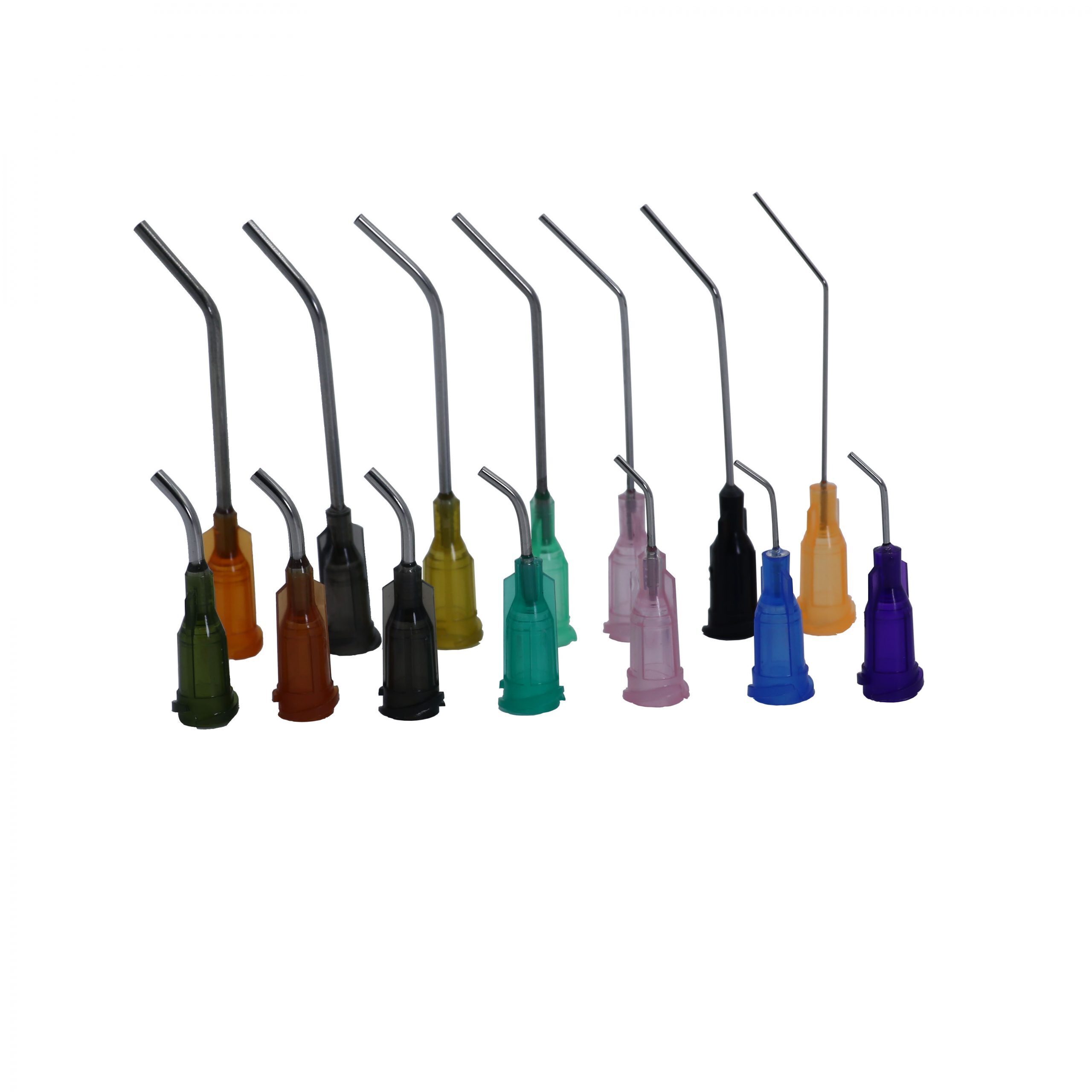

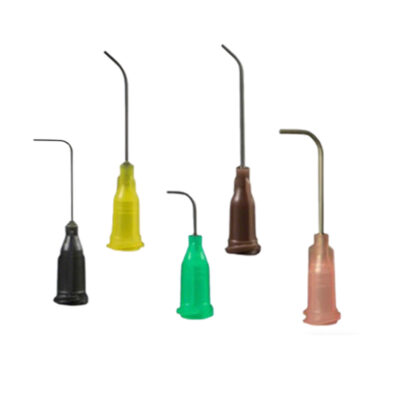

The bent needle is on the basis of the general needle, increasing the bending process. So that on some special dispensing occasions, straight needles can not perfect the dispensing work, you can use the appropriate Angle of the bent needle to replace it.
| Gauge | Color | ID(mm) | OD(mm) | 12.7mm | 12.7mm |
| (45°) | (90°) | ||||
| 14 | Olive | 1.54(0.06″) | 1.83(0.072″) | 9018044 | 9018045 |
| 15 | Amber | 1.36(0.053″) | 1.65(0.065″) | 9018069 | 9018070 |
| 16 | Grey | 1.19(0.047″) | 1.64（0.06） | 9018076 | 9018077 |
| 18 | Green | 0.84(0.033″) | 1.27(0.05″) | 9018123 | 9018124 |
| 20 | Pink | 0.61(0.024″) | 0.91(0.036″) | 9018179 | 9018180 |
| 21 | Purple | 0.51(0.02″) | 0.82(0.032″) | 9018234 | 9018235 |
| 22 | Blue | 0.41(0.016″) | 0.72(0.028″) | 9018273 | 9018274 |
| 23 | Orange | 0.33(0.013″) | 0.65(0.025″) | 9018315 | 9018316 |
| 25 | Red | 0.25(0.01″) | 0.52(0.02″) | 9018346 | 9018347 |
| 27 | Clear | 0.2(0.008″) | 0.42(0.016″) | 9018404 | 9018405 |
| 30 | Lavender | 0.15(0.006″) | 0.31(0.012″) | 9018434 | 9018435 |
(Due to the different resolutions of computer monitors, chromatic aberration may occur. If necessary, please contact our customer service for samples. )
